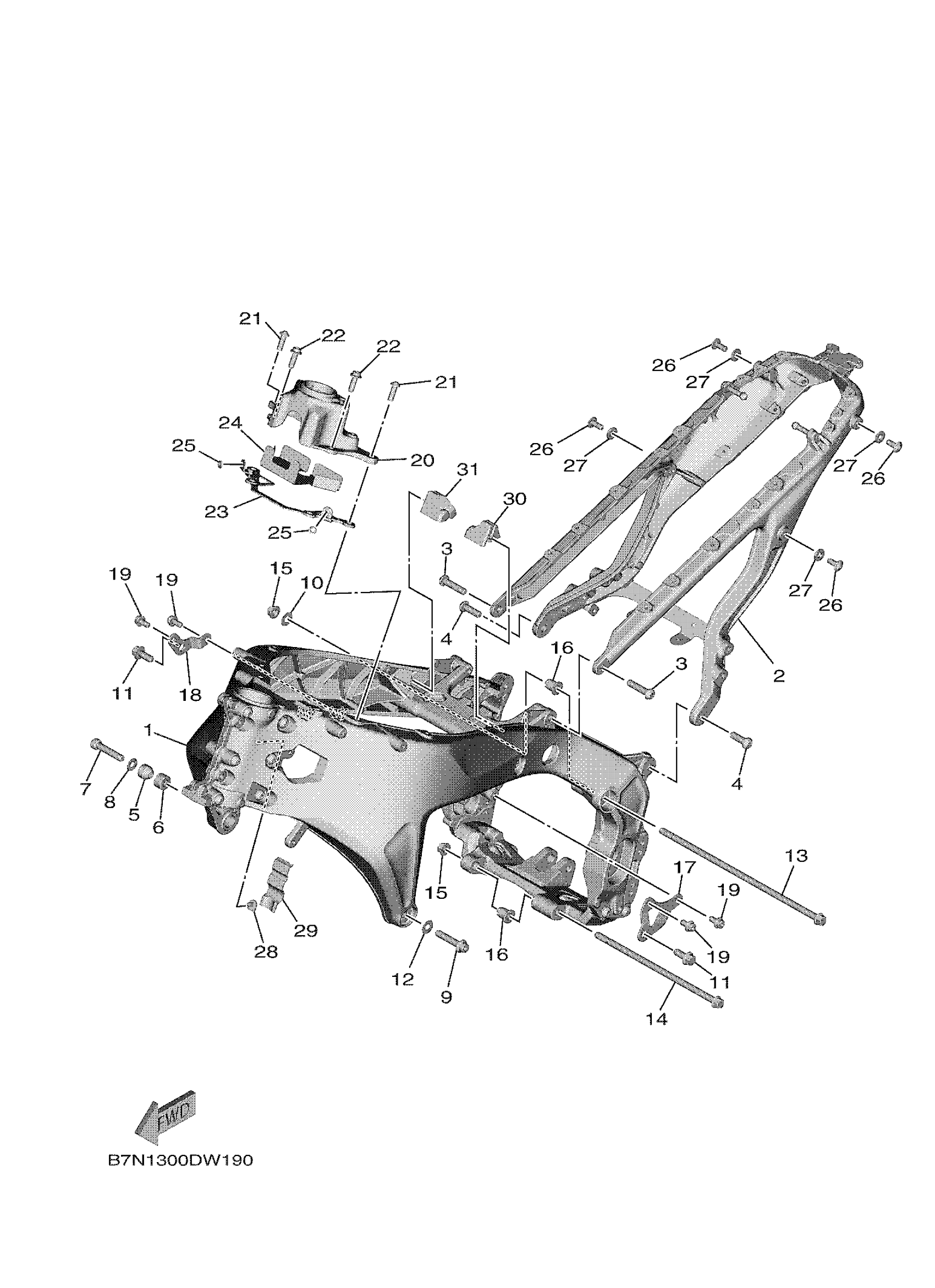

Yamaha MT09NL (MT09) B7NF 2022 FRAME Diagram

#

Description
Price

1

FRAME SUB COMP.

B7N-2111B-09-00

Unavailable

2

REAR FRAME COMP.

B7N-21190-09-00

$1,036.99

3

SCREW

90149-10077-00

$2.75

4

SCREW

90149-10060-00

$7.49

5

BOSS, ENGINE MOUNT

2C0-21414-00-00

$28.99

6

BOSS, ENGINE MOUNT

5VY-21424-00-00

$30.99

7

BOLT,SOCKET

91314-10050-00

$5.60

8

WASHER, PLATE

90201-10033-00

$8.49

9

BOLT, HEXAGON SOCKET HEAD

90110-10043-00

$4.41

10

WASHER PLATE

90201-10084-00

Unavailable

11

BOLT, FLANGE DEEP RECESS

95D37-10025-00

$1.96

12

WASHER, PLATE

90201-10075-00

$3.28

13

BOLT FLANGE

90105-10487-00

Unavailable

14

BOLT FLANGE

90105-10488-00

$17.99

15

NUT(4KG)

90179-10658-00

$9.49

16

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

Unavailable

17

STAY, ENGINE 1

B7N-21315-00-00

Unavailable

18

STAY, ENGINE 2

B7N-21316-01-00

Unavailable

19

BOLT(2KF)

90109-085E2-00

Unavailable

20

STAY 1

B7N-2137F-00-00

Unavailable

21

BOLT

90109-08247-00

Unavailable

22

91312-08030

91312-08030-00

Unavailable

23

STAY 2

B7N-2137G-00-00

Unavailable

24

SHIELD, HEAT

B7N-23892-00-00

Unavailable

25

DAMPER

5SL-84753-00-00

Unavailable

26

BOLT

90109-08263-00

Unavailable

27

WASHER, PLATE (397)

90201-08100-00

Unavailable

28

PLUG, BLIND

5VX-21289-00-00

Unavailable

29

DAMPER

1HP-H2176-01-00

Unavailable

30

COVER

B7N-2117F-00-00

Unavailable

31

COVER 2

B7N-2117M-00-00

Unavailable
