2021 Yamaha MT09 (MT09ML) Starting Motor Diagram

← All diagrams

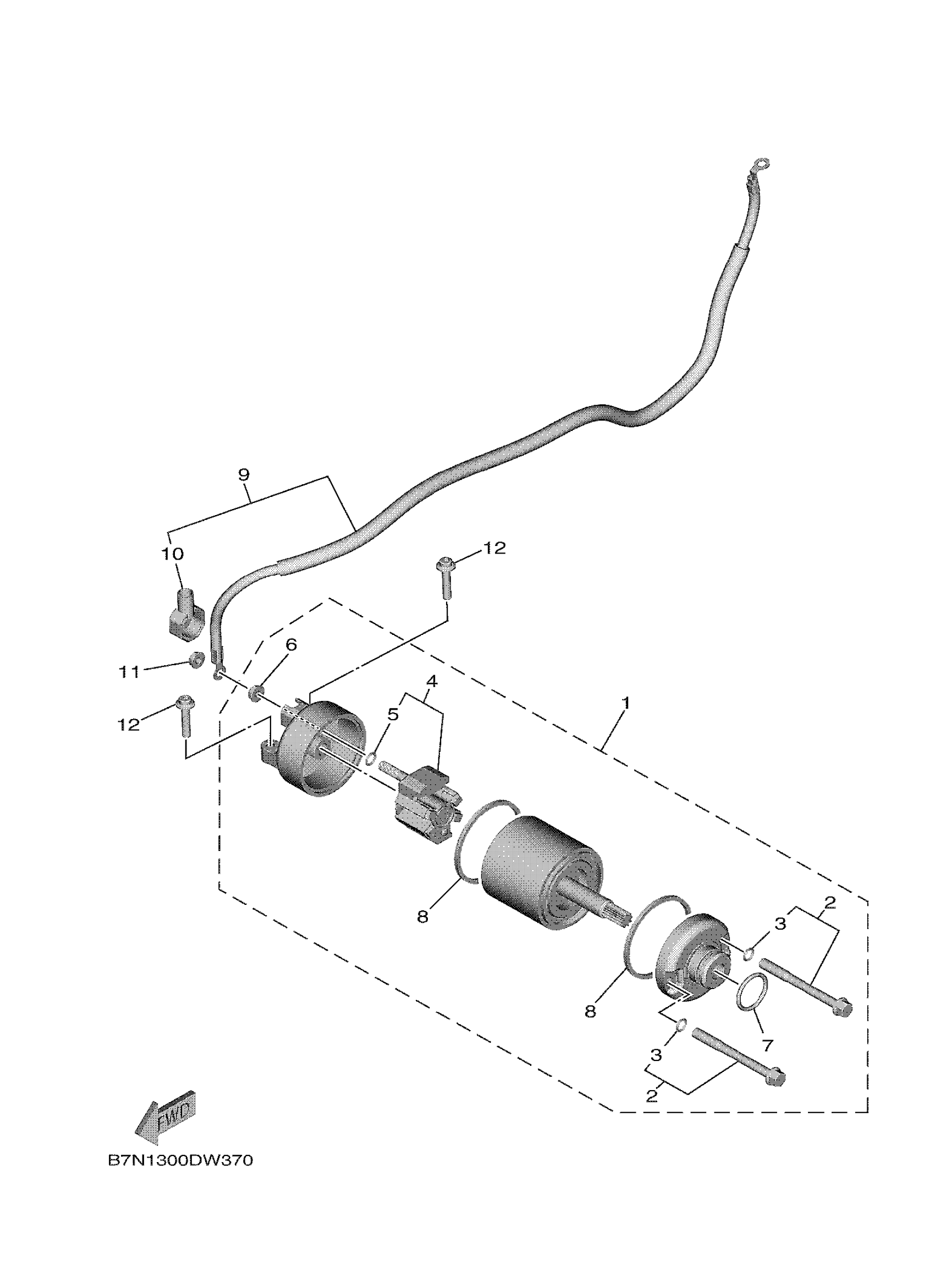

Find the part on the Starting Motor diagram for your 2021 Yamaha MT09 (MT09ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Yamaha MT09 (MT09ML) Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOTOR ASSY

BFD-81890-00-00

1
Out of stock

2

BOLT

28P-81826-00-00

—
Out of stock

3

.. O-RING

3TB-81847-00-00

1
Out of stock

4

BRUSH HOLDER ASSY

4B5-81840-00-00

1
Out of stock

5

.. O-RING

3TB-81847-00-00

1
Out of stock

6

NUT

4XV-8182A-00-00

1
Out of stock

7

O-RING (437)

93210-24235-00

1
Out of stock

8

GASKET

35C-81844-00-00

—
Out of stock

9

CORD, STARTER MOTO

B7N-81815-00-00

—
Out of stock

10

CAP

4B5-81871-00-00

—
Out of stock

11

NUT

4XV-8182A-00-00

1
Out of stock

12

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

1
Out of stock
