2020 Yamaha MT09 (MT09LL) Shift CAM & Fork Diagram

← All diagrams

Find the part on the Shift CAM & Fork diagram for your 2020 Yamaha MT09 (MT09LL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

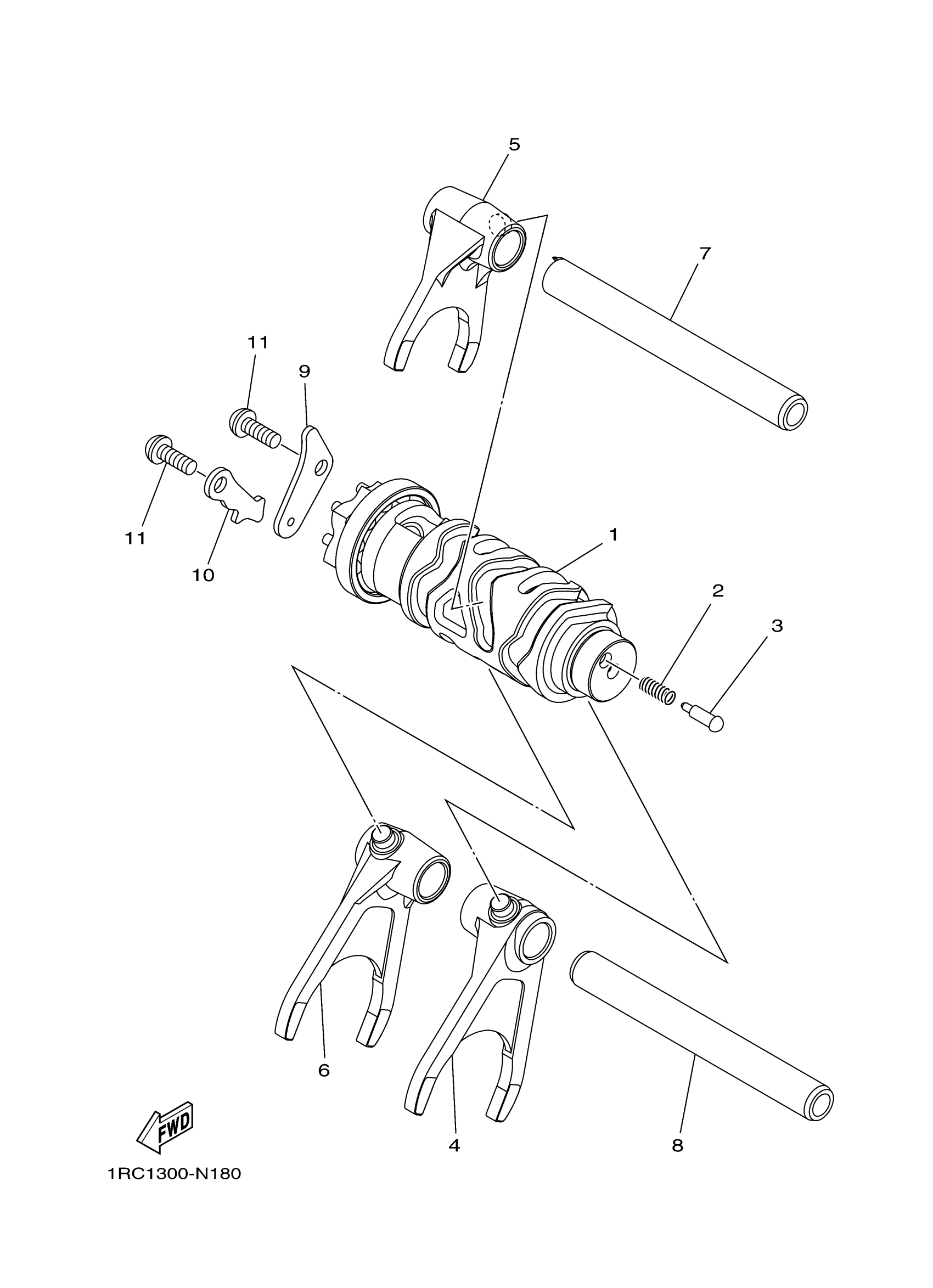

2020 Yamaha MT09 (MT09LL) Shift CAM & Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

1RC-18540-01-00

—
Out of stock

2

1

$6.17

In stock

3

POINT, NEUTRAL

3D7-18542-00-00

1

$6.02

In stock

4

FORK, SHIFT 1

1RC-18511-00-00

1

$51.45

In stock

5

FORK, SHIFT 2

1RC-18512-00-00

1

$50.11

In stock

6

FORK, SHIFT 3

1RC-18513-00-00

—

$51.45

In stock

7

BAR, SHIFT FORK GUIDE 1

1RC-18531-00-00

—

$37.32

In stock

8

BAR, SHIFT FORK GUIDE 2

20S-18535-00-00

1

$35.85

In stock

9

STOPPER, SHIFT BAR

B7N-18536-00-00

1

$4.20

In stock

10

PLATE, STOPPER 2

1RC-18562-00-00

—

$3.37

In stock

11

SCREW

90149-06156-00

1

$6.37

In stock
