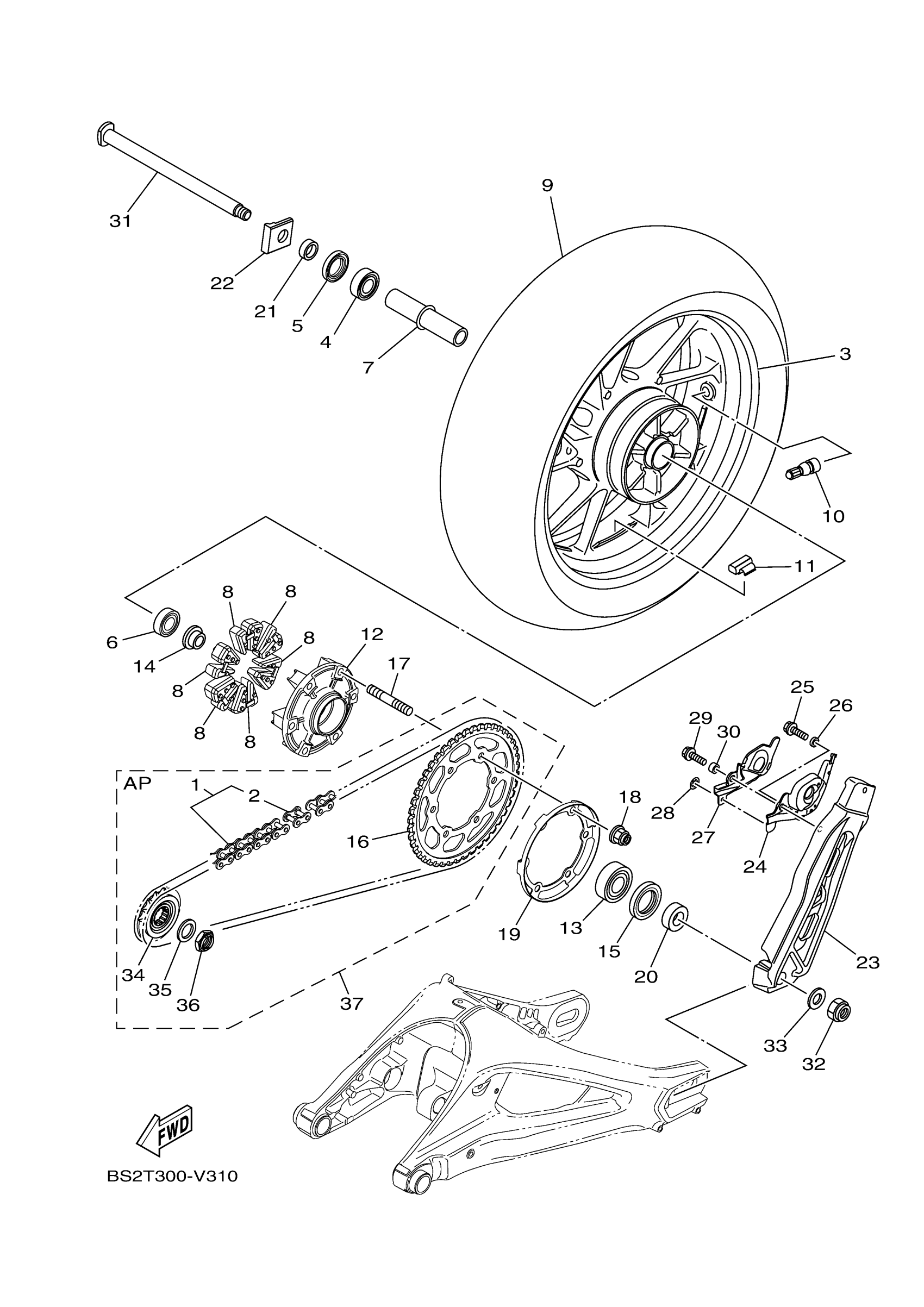

Yamaha MT09LL (MT09) BS2R 2020 REAR WHEEL Diagram

#

Description
Price

1

SET, CHAIN

94A40-17110-00

Unavailable

2

JOINT, CHAIN

94682-31031-00

$9.99

3

CAST WHEEL, REAR

2DR-25338-00-98

$596.99

4

BEARING

93306-20480-00

$44.99

5

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

6

BEARING(8AB)

93306-00444-00

$41.99

7

SPACER, BEARING

2PP-25317-00-00

$22.99

8

DAMPER

1RC-25364-00-00

Unavailable

9

TIRE (180/55ZR17M/C 73W D214)

94118-17077-00

Unavailable

9

TIRE (180/55ZR17M/C 73W S20R)

94118-17078-00

Unavailable

10

VALVE, RIM(2GH)

93900-00030-00

$16.99

11

BALANCER, WHEEL

5MT-25398-00-00

$17.49

11

BALANCER, WHEEL

5MT-25398-10-00

$17.49

11

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

12

CLUTCH, HUB

5JJ-25366-00-00

$465.99

13

BEARING

93306-205B5-00

Unavailable

14

COLLAR, WHEEL

1RC-25383-00-00

Unavailable

15

OIL SEAL

93106-40013-00

Unavailable

16

SPROCKET, DRIVEN (45T)

BS2-25445-00-00

Unavailable

17

BOLT, STUD

90116-10048-00

Unavailable

18

NUT, S/L FLANGE

95602-10200-00

Unavailable

19

BRACKET 1

BS2-2537W-01-00

Unavailable

20

COLLAR

90387-20036-00

Unavailable

21

COLLAR

90387-20035-00

Unavailable

22

PULLER, CHAIN 2

1RC-25389-00-00

Unavailable

23

PULLER, CHAIN 2

BS2-25389-00-00

Unavailable

24

COVER 1

BS2-25715-01-00

Unavailable

25

BOLT, FLANGE DEEP RECESS

95D37-06014-00

Unavailable

26

COLLAR(2NL)

90387-060U2-00

Unavailable

27

COVER 2

BS2-25716-00-00

Unavailable

28

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

29

BOLT, FLANGE DEEP RECESS

95D37-06014-00

Unavailable

30

COLLAR

90387-06207-00

Unavailable

31

AXLE, WHEEL

BS2-25381-00-00

Unavailable

32

NUT, SELF-LOCKING

90185-18009-00

Unavailable

33

WASHER, PLATE

90201-18021-00

Unavailable

34

SPROCKET, DRIVE (16T)

5PS-17460-00-00

Unavailable

35

WASHER, CONICAL SPRING

90208-22002-00

Unavailable

36

NUT

90179-22018-00

Unavailable

37

CHAIN & SPROCKET KIT

BS2-W001A-00-00

Unavailable
