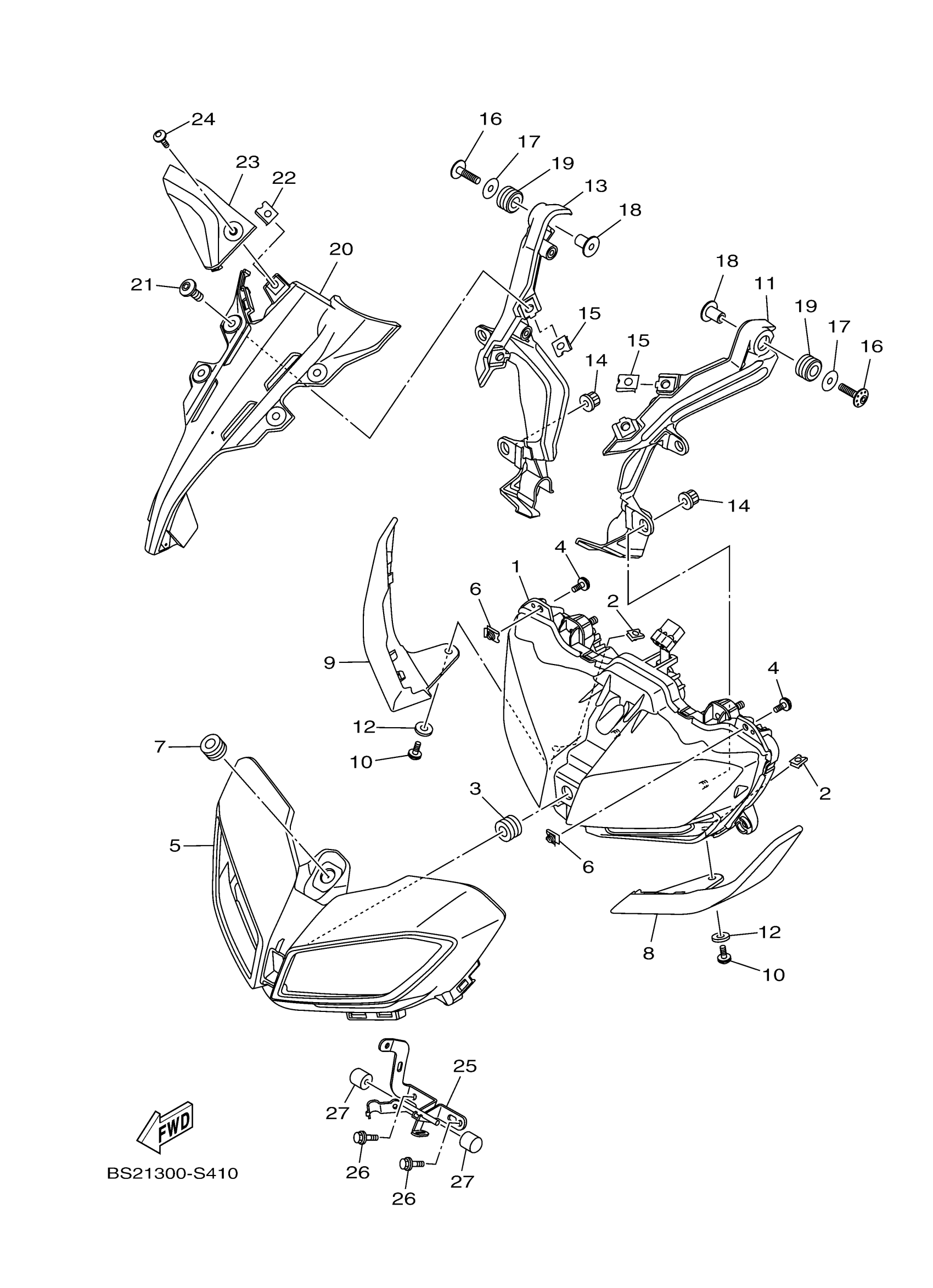

Yamaha MT09LL (MT09) BS2R 2020 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY

BS2-84300-01-00

$1,089.99

2

NUT, SPRING(1YT)

90183-05042-00

$5.60

3

GROMMET

90480-13014-00

$8.49

4

SCREW, TAPPING

90167-05080-00

$2.39

5

COVER, HEADLIGHT 1

BS2-2838D-00-00

$28.99

6

NUT, SPRING(1YT)

90183-05042-00

$5.60

7

GROMMET

90480-13014-00

$8.49

8

VISOR, SIDE 1

BS2-2830C-00-P0

$92.99

9

VISOR, SIDE 2

BS2-2830D-00-P0

Unavailable

10

SCREW, TAPPING

90167-05080-00

$2.39

11

STAY, HEAD LIGHT 1

BS2-2831V-00-00

$38.99

12

WASHER, PLATE(1KT)

90202-05180-00

$10.49

13

STAY, HEAD LIGHT 2

BS2-2832V-00-00

$35.99

14

NUT

90179-06074-00

$10.49

15

NUT, SPRING

90183-061A4-00

$2.39

16

BOLT

90109-06317-00

Unavailable

17

WASHER, PLATE

90201-06095-00

Unavailable

18

COLLAR

90387-06136-00

Unavailable

19

GROMMET 839774310000

90480-14023-00

Unavailable

20

PANEL, FRONT

BS2-23391-00-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-06127-00

Unavailable

22

NUT, SPRING

90183-050A6-00

Unavailable

23

PANEL, FRONT 2

BS2-23397-00-00

Unavailable

24

BOLT

90111-05002-00

Unavailable

25

STAY, SETTING

BS2-8431R-00-00

Unavailable

26

BOLT, FLANGE DEEP RECESS

95D07-06016-00

Unavailable

27

DAMPER

BS2-84527-00-00

Unavailable
