2020 Yamaha MT09 (MT09LL) Handle Switch & Lever Diagram

← All diagrams

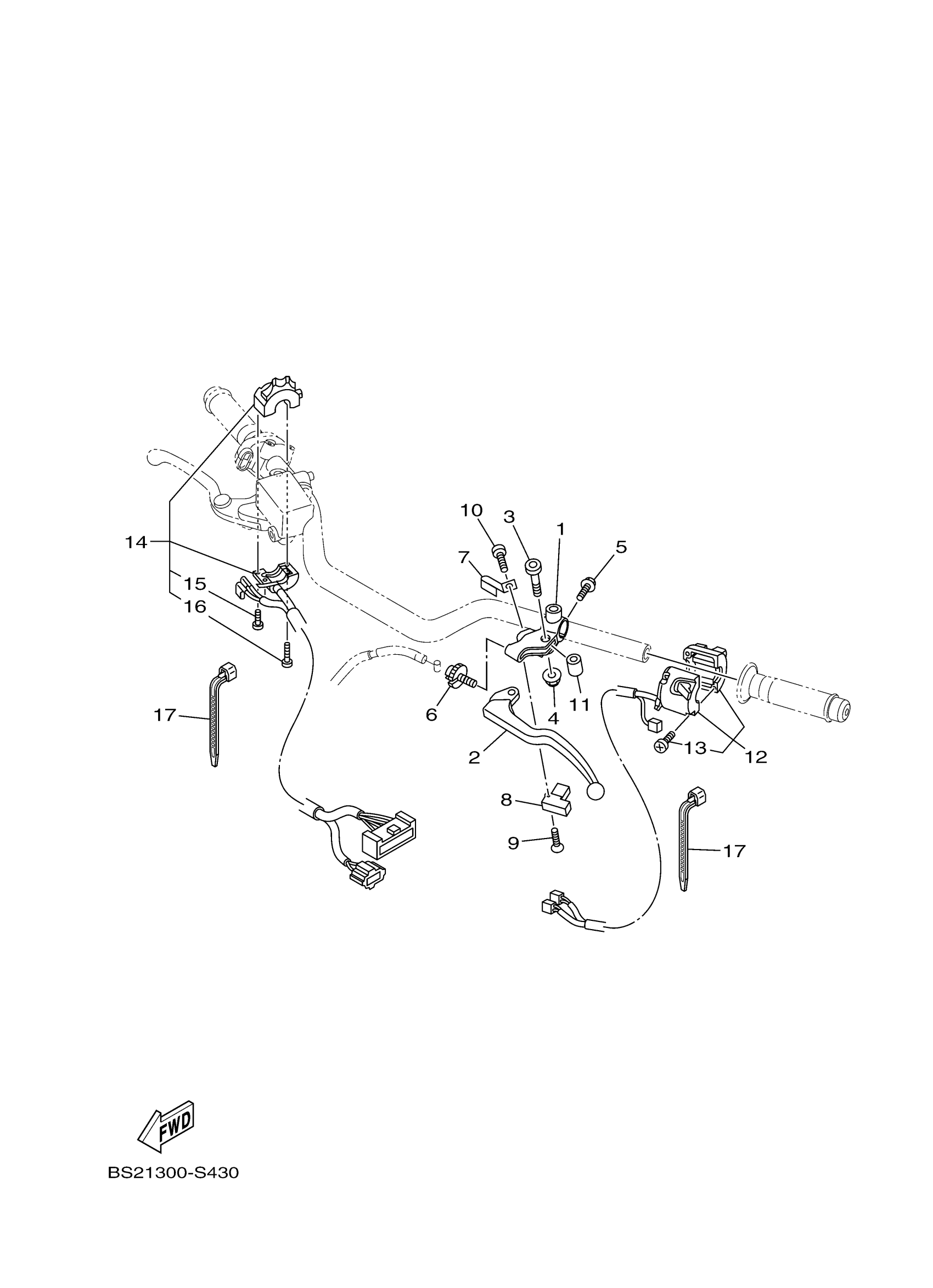

Find the part on the Handle Switch & Lever diagram for your 2020 Yamaha MT09 (MT09LL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Yamaha MT09 (MT09LL) Handle Switch & Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOLDER, LEVER 1

1B3-82911-00-00

1
Out of stock

2

LEVER 1

5EB-83912-03-00

1
Out of stock

3

BOLT, LEVER

2C0-83945-00-00

1
Out of stock

4

NUT,SELF-LOCKING

95607-06200-00

1
Out of stock

5

. BOLT, FLANGE

95027-06020-00

1
Out of stock

6

BOLT, CABLE ADJUSTING

5LV-83951-00-00

1
Out of stock

7

PLATE, SPRING

4XV-83929-00-00

1
Out of stock

8

SWITCH

3YX-82917-01-00

1
Out of stock

9

SCREW, COUNTERSUNK

90151-03003-00

—
Out of stock

10

SCREW, PAN HEAD(6G8)

98507-04010-00

1
Out of stock

11

COLLAR, LEVER 1

5JJ-83913-00-00

1
Out of stock

12

SWITCH, HANDLE 5

BS2-83969-00-00

1
Out of stock

13

SCREW, PAN HEAD

98517-04025-00

1
Out of stock

14

SWITCH, HANDLE 3

BS2-83963-11-00

1
Out of stock

15

SCREW, PAN HEAD

98517-04020-00

1
Out of stock

16

SCREW, PAN

98507-04030-00

1
Out of stock

17

CLAMP(4FM)

90464-15195-00

—
Out of stock
