2020 Yamaha MT09 (MT09LL) Flasher Light Diagram

← All diagrams

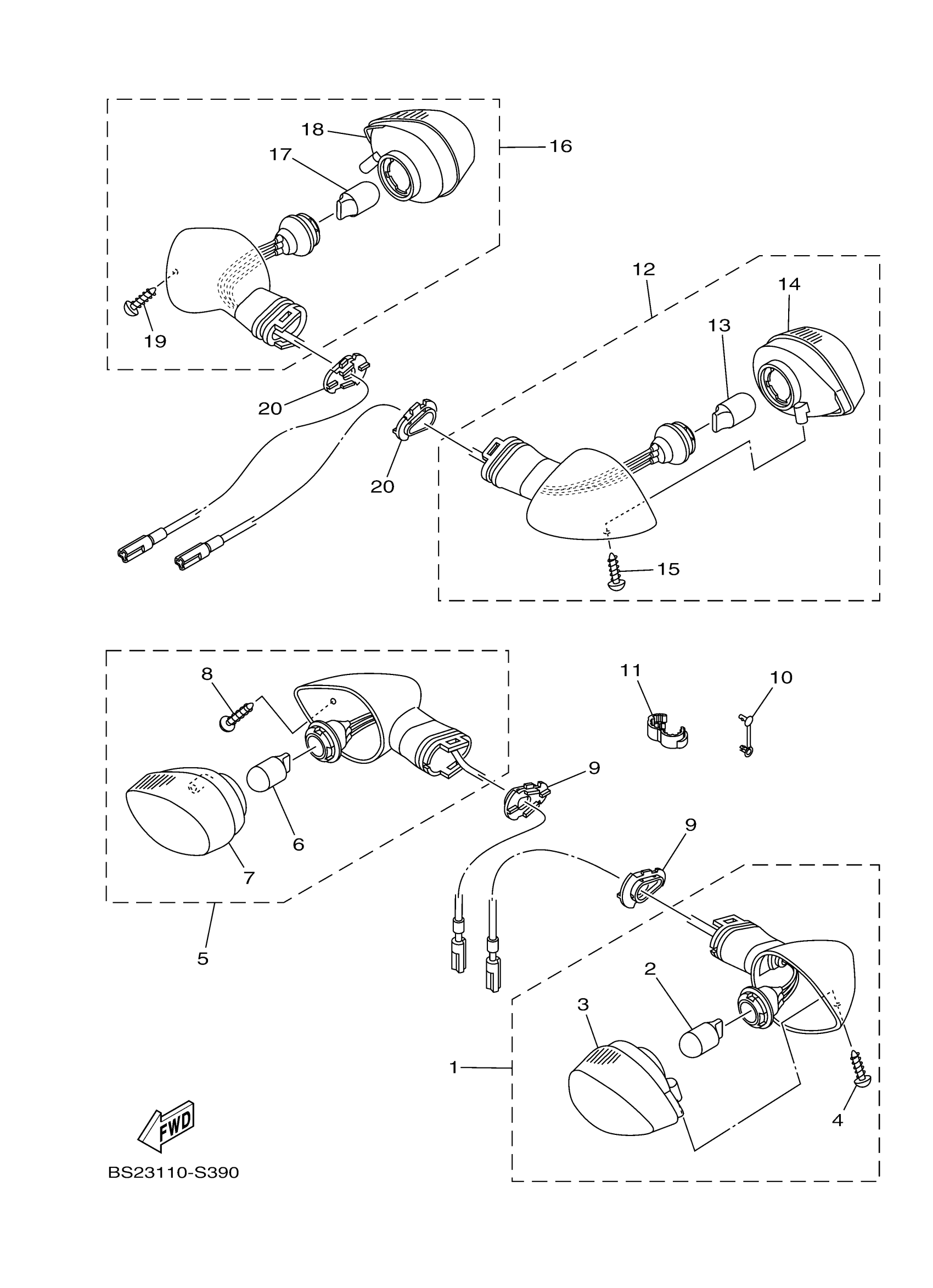

Find the part on the Flasher Light diagram for your 2020 Yamaha MT09 (MT09LL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2020 Yamaha MT09 (MT09LL) Flasher Light Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT LASHER LIGHT ASSY 1

BS2-83310-11-00

—
Out of stock

2

BULB, FLASHER

5GJ-83331-00-00

1

$12.45

In stock

3

LENS COMP

5PW-8334A-10-00

1

$28.85

In stock

4

SCREW, TRUSS TAP.

97707-40012-00

—

$6.69

In stock

5

FRONT FLASHER LIGHT ASSY 2

BS2-83320-11-00

—
Out of stock

6

BULB, FLASHER

5GJ-83331-00-00

1

$12.45

In stock

7

LENS COMP

5PW-8333A-10-00

1

$28.04

In stock

8

SCREW, TRUSS TAP.

97707-40012-00

—

$6.69

In stock

9

STAY, FLASHER 1

32C-83318-00-00

1

$11.69

In stock

10

CLAMP

90464-05003-00

—

$1.93

In stock

11

CLAMP

90464-13227-00

1

$6.92

In stock

12

REAR FLASHER LIGHT ASSY 1

BS2-83330-11-00

—
Out of stock

13

BULB, FLASHER

5PW-83331-00-00

1

$11.49

In stock

14

LENS COMP

5PW-8333A-10-00

1

$28.04

In stock

15

SCREW, TRUSS TAP.

97707-40012-00

—

$6.69

In stock

16

REAR FLASHER LIGHT ASSY 2

BS2-83340-11-00

—
Out of stock

17

BULB, FLASHER

5PW-83331-00-00

1

$11.49

In stock

18

LENS COMP

5PW-8334A-10-00

1

$28.85

In stock

19

SCREW, TRUSS TAP.

97707-40012-00

—

$6.69

In stock

20

STAY, FLASHER 1

32C-83318-00-00

1

$11.69

In stock
