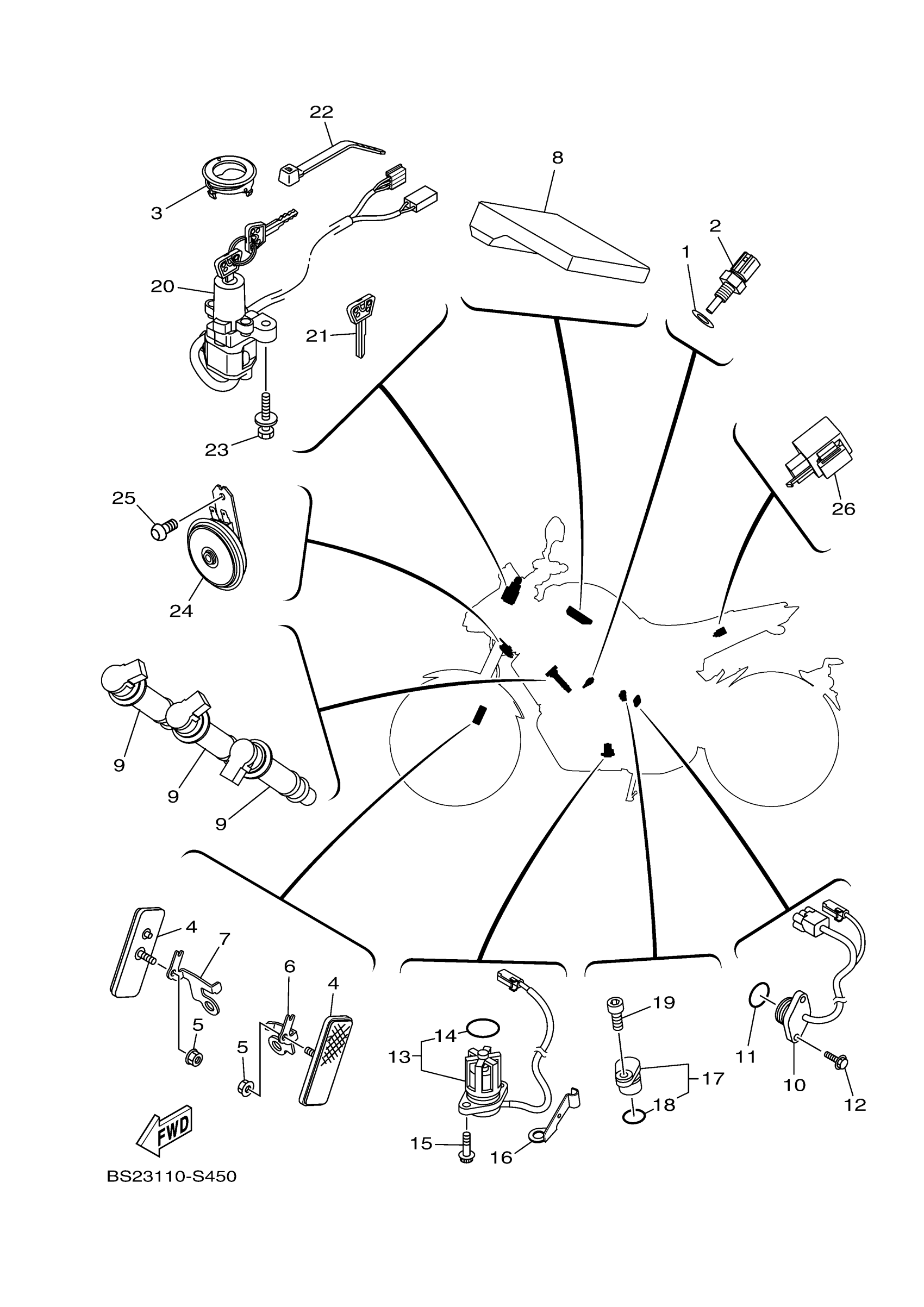

Yamaha MT09LL (MT09) BS2R 2020 ELECTRICAL 2 Diagram

#

Description
Price

1

GASKET

90430-10004-00

$7.49

2

THERMO UNIT

52B-H3591-00-00

$34.99

3

CAP, SWITCH

B90-82552-00-00

Unavailable

4

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

5

NUT, FLANGE

95702-05500-00

$0.38

6

BRACKET, REFLECTOR 1

1RC-85112-00-00

Unavailable

7

BRACKET, REFLECTOR 2

1RC-85122-00-00

Unavailable

8

ENGINE CONTROL UNIT ASSY

BS2-8591A-11-00

Unavailable

9

IGNITION COIL ASSY

1RC-82310-00-00

Unavailable

10

NEUTRAL SWITCH ASSY

1RC-82540-01-00

$85.99

11

O-RING

93210-21001-00

$5.60

12

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

13

OIL LEVEL GAUGE ASSY

5S7-85720-00-00

$111.99

14

O-RING

5VY-8A8E0-00-00

$14.49

15

BOLT, FLANGE DEEP RECESS

95E32-06016-00

$0.60

16

CLAMP

90465-08053-00

Unavailable

17

PLUG, BLIND

3P6-15399-00-00

Unavailable

18

O-RING (22U)

93210-15566-00

Unavailable

19

BOLT,SOCKET

91317-06016-00

Unavailable

20

MAIN SWITCH STEERING LOCK

B90-82501-01-00

Unavailable

21

BLANK KEY

4BH-82511-09-00

Unavailable

22

CLAMP

90464-14010-00

Unavailable

23

BOLT

90109-08196-00

Unavailable

24

HORN

BS2-83371-00-00

Unavailable

25

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

26

FLASHER RELAY ASSY

4C8-83350-12-00

Unavailable
