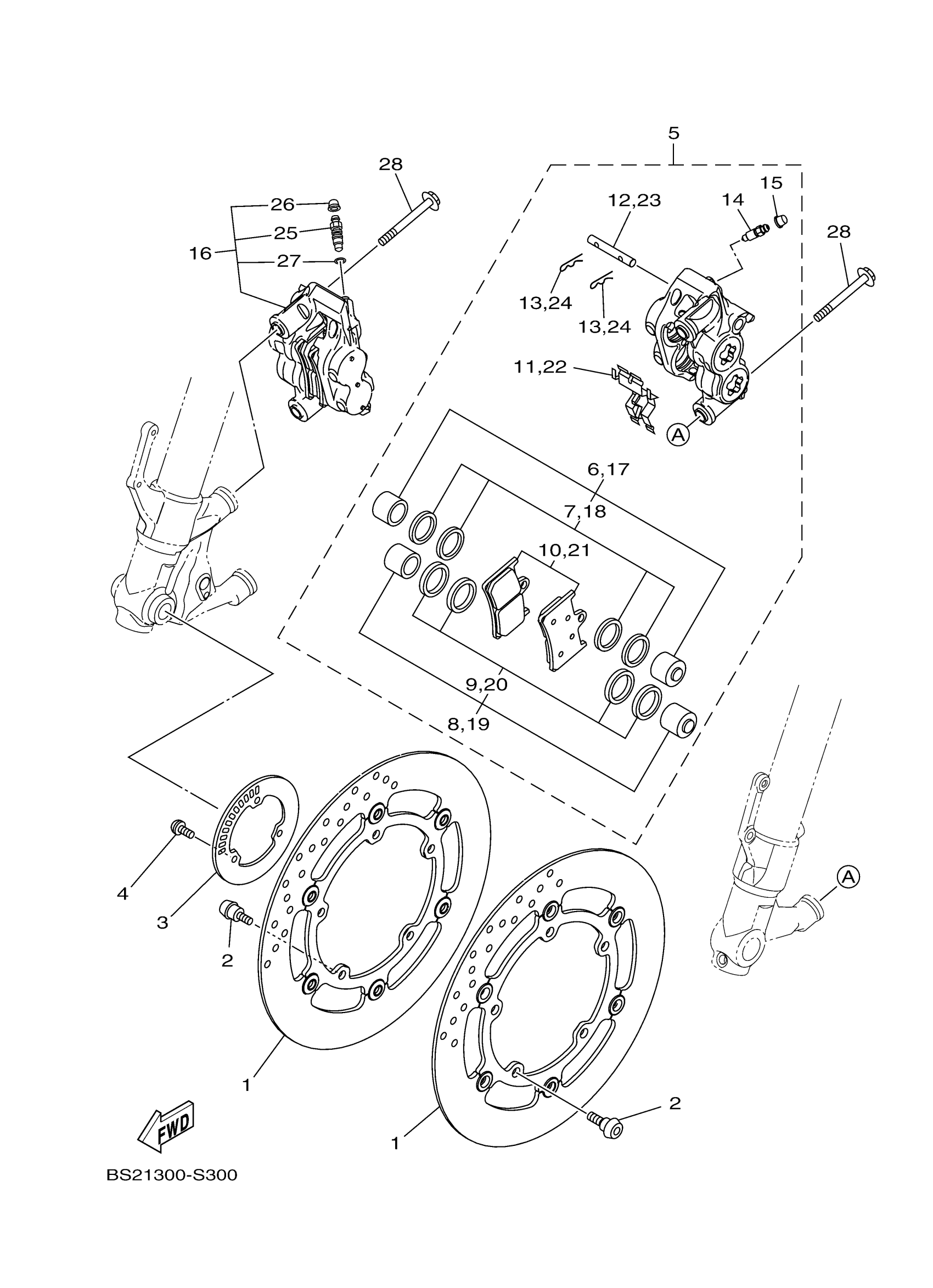

Yamaha MT09KL (MT09) BS2J1 2019 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

1RC-2581T-00-00

$170.99

2

BOLT

90109-06254-00

$8.49

3

ROTOR, SENSOR

2DR-2517G-00-00

$100.99

4

SCREW

90149-05030-00

$8.49

5

CALIPER ASSY (LEFT)

1RC-2580T-00-00

$485.99

6

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

7

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

8

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

9

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

10

BRAKE PAD KIT

5SL-25805-00-00

$59.99

11

SUPPORT, PAD

13S-25919-00-00

$27.99

12

PIN, PAD

4SV-25924-00-00

$42.99

13

CLIP, PAD PIN

3GM-25925-00-00

$11.99

14

SCREW, BLEED

1J3-25824-00-00

$5.49

15

CAP

306-25825-01-00

$9.99

16

CALIPER ASSY (RIGH

2DR-2580U-00-00

Unavailable

17

PISTON ASSY, CALIPER

4SV-25802-10-00

$196.99

18

CALIPER SEAL KIT

3GM-25803-10-00

$53.99

19

PISTON ASSY, CALIPER

4SV-25802-00-00

$155.99

20

CALIPER SEAL KIT

3MA-25803-10-00

$55.99

21

BRAKE PAD KIT

5SL-25805-00-00

$59.99

22

SUPPORT, PAD

13S-25919-00-00

$27.99

23

PIN, PAD

4SV-25924-00-00

$42.99

24

CLIP, PAD PIN

3GM-25925-00-00

$11.99

25

SCREW, BLEED

5VS-25824-00-00

Unavailable

26

CAP

306-25825-01-00

$9.99

27

RUBBER, BUSHING

5VS-25975-00-00

Unavailable

28

BOLT, FLANGE

90105-10440-00

Unavailable
