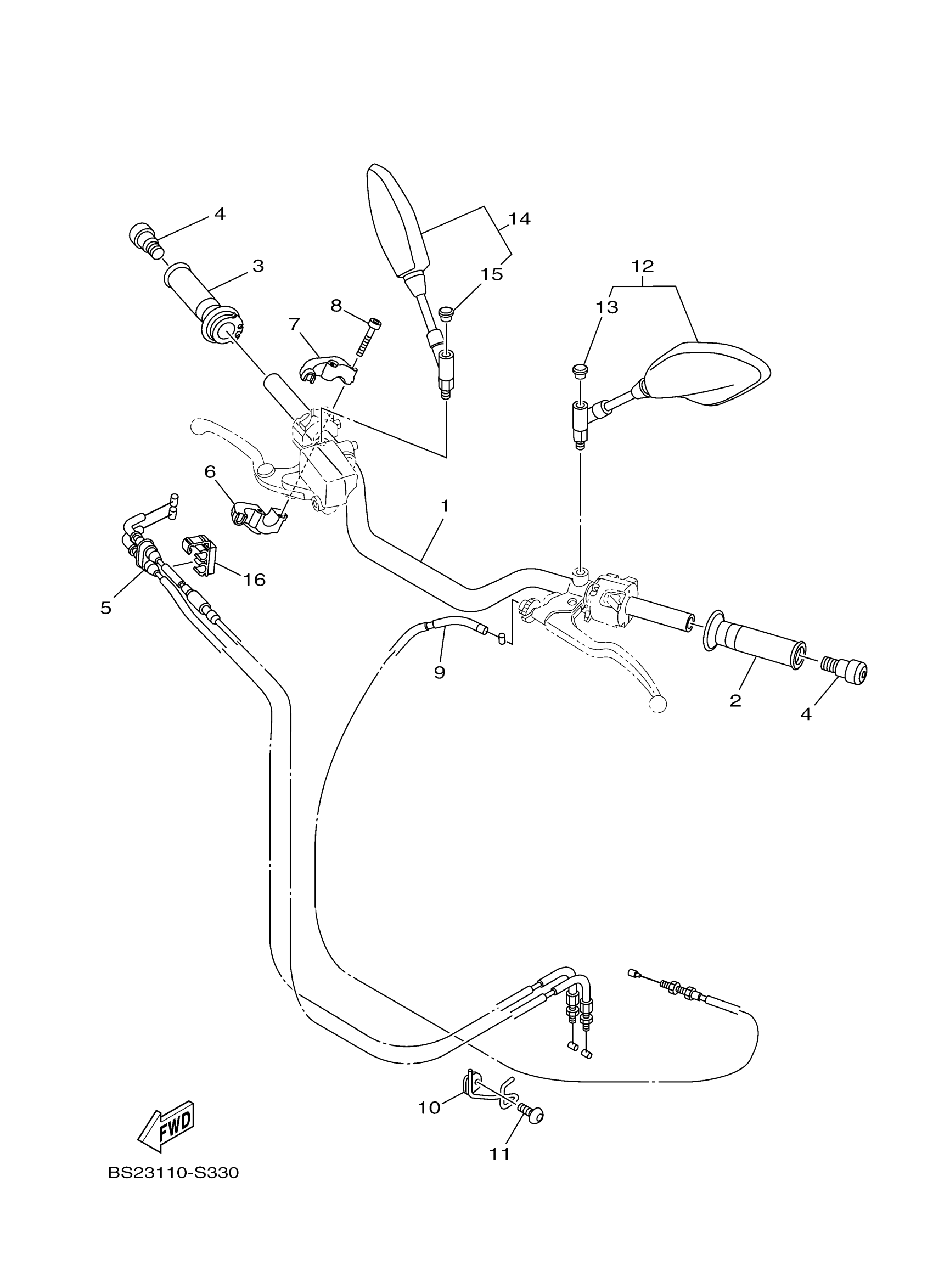

Yamaha MT09JR (MT09) BS2C1 2018 STEERING HANDLE CABLE Diagram

Description

Price

HANDLEBAR

1RC-26111-00-00

$251.99

GRIP

4YR-26241-03-00

$11.99

GRIP ASSY

4YR-26240-03-00

$30.99

END, GRIP

5GJ-26246-00-00

$28.99

THROTTLE CABLE ASSY

1RC-26302-00-00

$51.99

CAP, GRIP UPPER

4KG-26281-00-00

$31.99

CAP, GRIP UNDER

3XW-26282-01-00

$31.99

BOLT,SOCKET

91317-05035-00

$8.49

CABLE, CLUTCH

1RC-26335-01-00

$50.99

HOLDER

BS2-23857-00-00

Unavailable

BOLT, BUTTON HEAD

92017-06010-00

$4.82

REAR VIEW MIRROR ASSY (LEFT)

1RC-26280-09-00

$61.99

CAP

23P-26133-00-00

$6.99

REAR VIEW MIRROR ASSY (RIGHT)

1RC-26290-09-00

$61.99

CAP

23P-26133-00-00

$6.99

CLAMP,WIRE

39P-2627E-00-00

Unavailable
