2018 Yamaha MT09 (MT09JR) Seat Diagram

← All diagrams

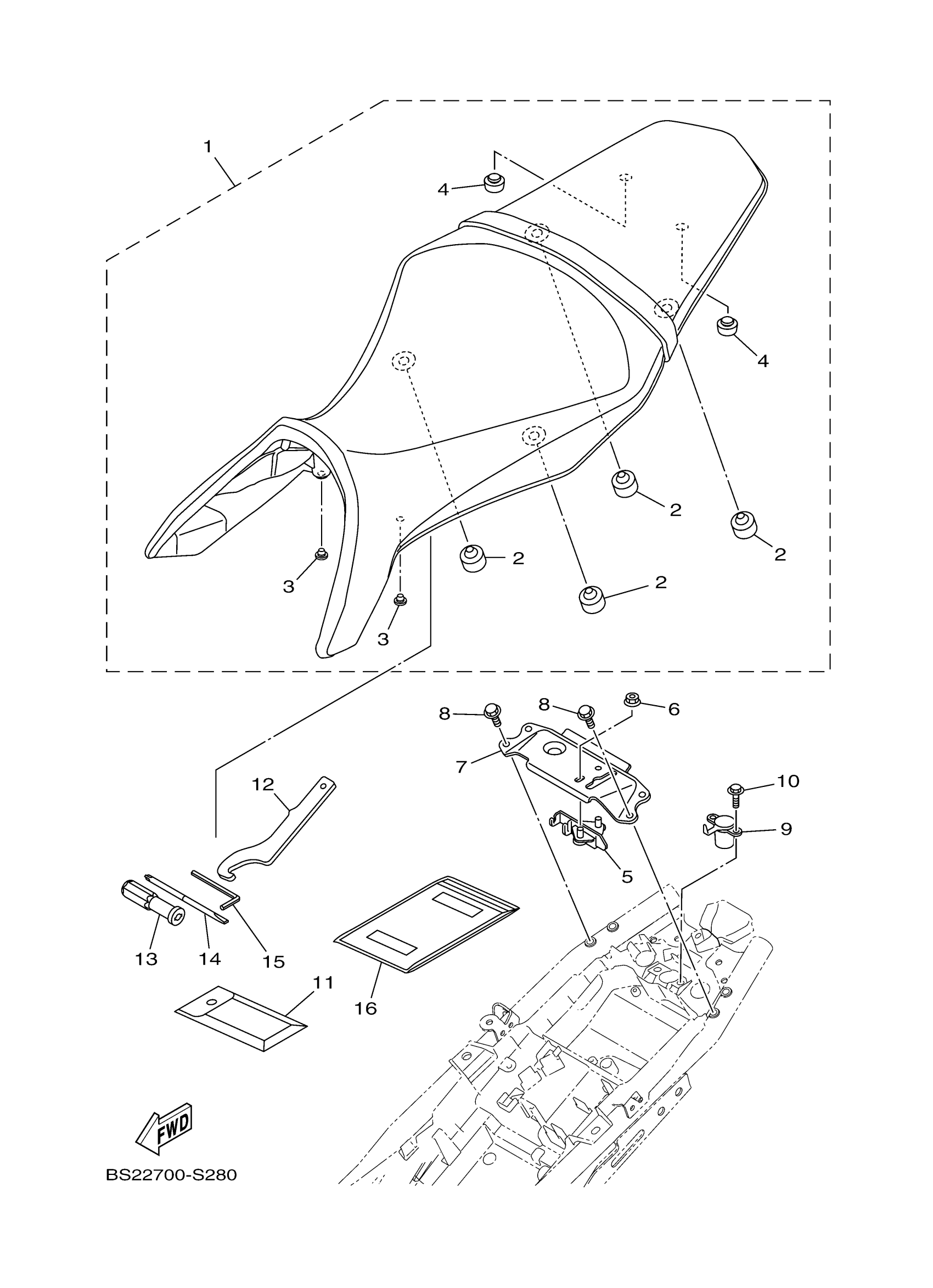

Find the part on the Seat diagram for your 2018 Yamaha MT09 (MT09JR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha MT09 (MT09JR) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

DOUBLE SEAT ASSY

BS2-24730-01-00

1

$257.05

In stock

2

STOPPER, MAIN STAND

4GL-27114-00-00

—

$14.25

In stock

3

PLUG(7Y6)

90338-07157-00

1

$5.77

In stock

4

STOPPER, MAIN STAND

5UY-27114-00-00

1

$1.62

In stock

5

SEAT LOCK ASSY

B90-24780-00-00

1

$25.29

In stock

6

NUT, FLANGE

95702-06500-00

1

$1.98

In stock

7

BRACKET, SEAT LOCK

1RC-2478X-00-00

1

$33.12

In stock

8

BOLT, FLANGE

95022-06016-00

1

$3.32

In stock

9

ROTOR SET

1RC-W2470-00-00

1

$68.62

In stock

10

BOLT, FLANGE

95022-06014-00

1

$2.63

In stock

11

TOOL KIT

1RC-28100-00-00

—

$36.43

In stock

12

SPANNER, SPECIAL

1RC-28135-00-00

1

$9.49

In stock

13

GRIP, DRIVER

2H7-28151-00-00

1

$5.93

In stock

14

DRIVER

2GV-28152-00-00

1

$3.74

In stock

15

WRENCH, HEXAGON 8

23P-28164-00-00

1

$2.72

In stock

16

POUCH

4KG-28186-11-00

—

$7.14

In stock
