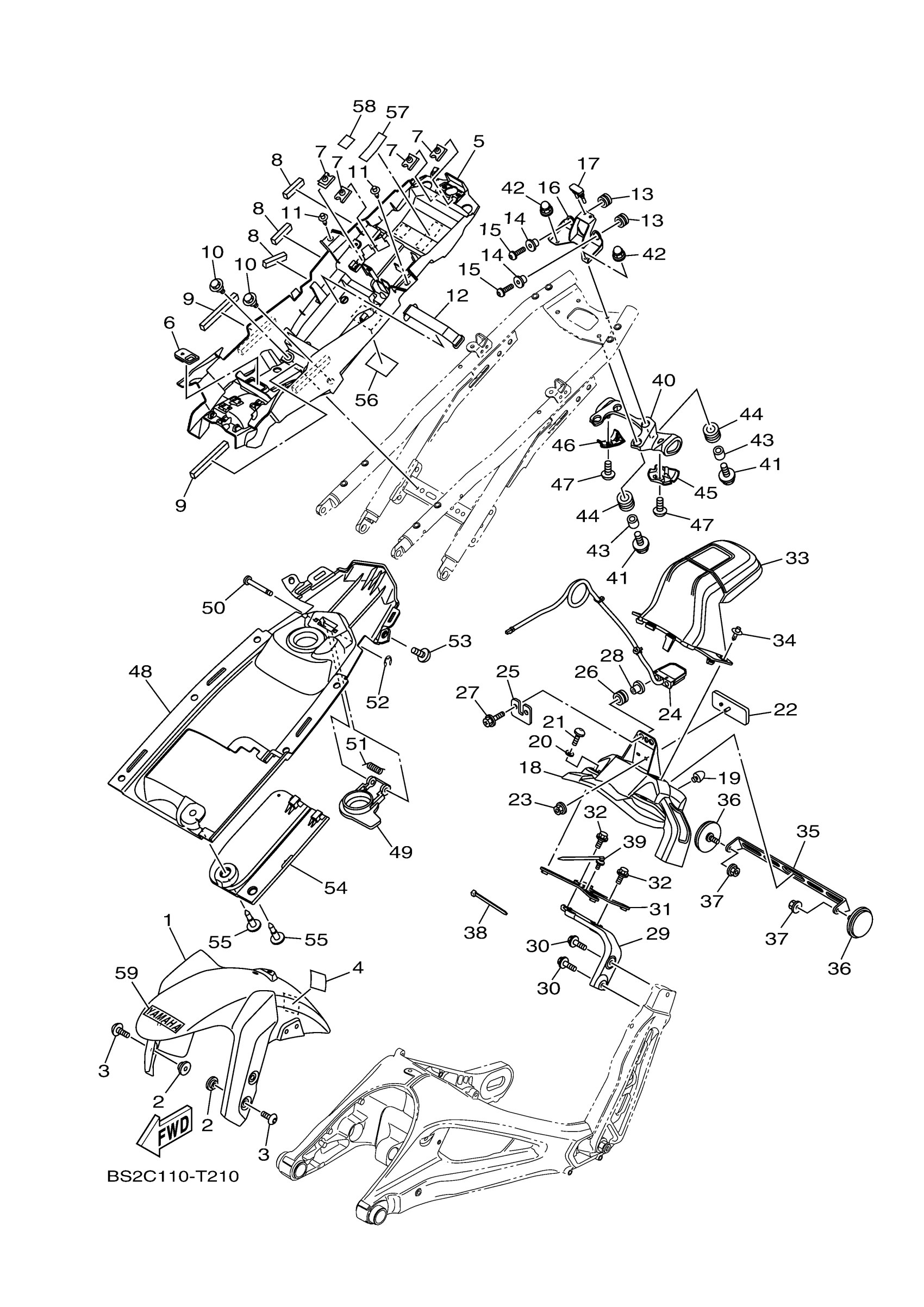

Find the part on the Fender diagram for your 2018 Yamaha MT09 (MT09JR), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha MT09 (MT09JR) Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FENDER, FRONT

1RC-21511-00-PA

1
Out of stock

2

COLLAR

90387-06153-00

1
Out of stock

3

BOLT, HEXAGON SOCKET HEAD(3HE)

90110-06200-00

1
Out of stock

4

SEAL

5UY-21269-00-00

1
Out of stock

5

BOX, BATTERY 1

BS2-8212B-00-00

—
Out of stock

6

PLUG, BLIND

2DR-26199-00-00

—
Out of stock

7

NUT, SPRING(4ES)

90183-06069-00

1
Out of stock

8

DAMPER

5PS-28372-00-00

1
Out of stock

9

DAMPER

32D-84553-00-00

1
Out of stock

10

BOLT

90109-06202-00

1
Out of stock

11

RIVET

90269-07007-00

1
Out of stock

12

BAND, BATTERY

1RC-82137-00-00

1
Out of stock

13

GROMMET (431)

90480-14052-00

1
Out of stock

14

COLLAR

90387-06288-00

1
Out of stock

15

BOLT, BUTTON HEAD

92012-06020-00

1
Out of stock

16

BRACKET, TAILLIGHT

BS2-2117E-00-00

—
Out of stock

17

STOPPER, UPPER MOU

682-44532-01-00

—
Out of stock

18

GUARD, MUD

BS2-21629-01-00

—
Out of stock

19

DAMPER 2

2MG-21639-00-00

—
Out of stock

20

COLLAR

90387-06106-00

—
Out of stock

21

BOLT

90111-06061-00

—
Out of stock

22

REAR REFLECTOR ASSY

3Y6-85130-02-00

1
Out of stock

23

NUT, S/L FLANGE

95607-05200-00

—
Out of stock

24

LICENCE LIGHT UNIT ASSY

BS2-84745-00-00

—
Out of stock

25

PLATE, LICENSE

BS2-21681-00-00

—
Out of stock

26

GROMMET

90480-11009-00

—
Out of stock

27

SCREW, WITH WASHER

90159-05035-00

—
Out of stock

28

COLLAR

90387-05003-00

—
Out of stock

29

STAY, FENDER 1

BS2-21613-00-00

—
Out of stock

30

BOLT, FLANGE(4LN)

95817-08025-00

—
Out of stock

31

STAY, FENDER 2

BS2-21614-00-00

—
Out of stock

32

BOLT, FLANGE

95812-06014-00

—
Out of stock

33

COVER, REAR FENDER 1

BS2-2163A-00-00

—
Out of stock

34

RIVET

90269-06008-00

—
Out of stock

35

BRACKET, LICENSE

BS2-84751-00-00

—
Out of stock

36

REFLECTOR, REAR 1

449-85131-02-00

—
Out of stock

37

NUT, FLANGE(3GM)

95707-05500-00

—
Out of stock

38

CLAMP

90464-16061-00

—
Out of stock

39

CLAMP

90464-30011-00

—
Out of stock

40

STAY, FLASHER 1

BS2-83318-00-00

—
Out of stock

41

BOLT, FLANGE

90105-06169-00

—
Out of stock

42

NUT, CROWN

90176-06016-00

—
Out of stock

43

COLLAR

90387-06260-00

—
Out of stock

44

GROMMET

90480-14003-00

—
Out of stock

45

COVER, FLASHER 1

BS2-283D3-00-00

—
Out of stock

46

COVER, FLASHER 2

BS2-283D4-00-00

—
Out of stock

47

SCREW, TRUSS TAP.

97707-40012-00

—
Out of stock

48

COVER, REAR FENDER

BS2-21651-01-00

—
Out of stock

49

CAP, ROTOR

1RC-2465B-01-00

1
Out of stock

50

PIN

90249-03002-00

—
Out of stock

51

SPRING, TORSION

90508-09007-00

—
Out of stock

52

CIRCLIP (604)

93430-02001-00

—
Out of stock

53

SCREW, TAPPING

90167-05079-00

—
Out of stock

54

LID

BS2-2177E-01-00

—
Out of stock

55

RIVET

90269-07007-00

1
Out of stock

56

LABEL, TIRE

14B-21668-01-00

—
Out of stock

57

LABEL, CAUTION

3JJ-28446-A2-00

—
Out of stock

58

LABEL, CAUTION

3TB-24877-A1-00

—
Out of stock

59

EMBLEM, YAMAHA

99247-00080-00

—
Out of stock
