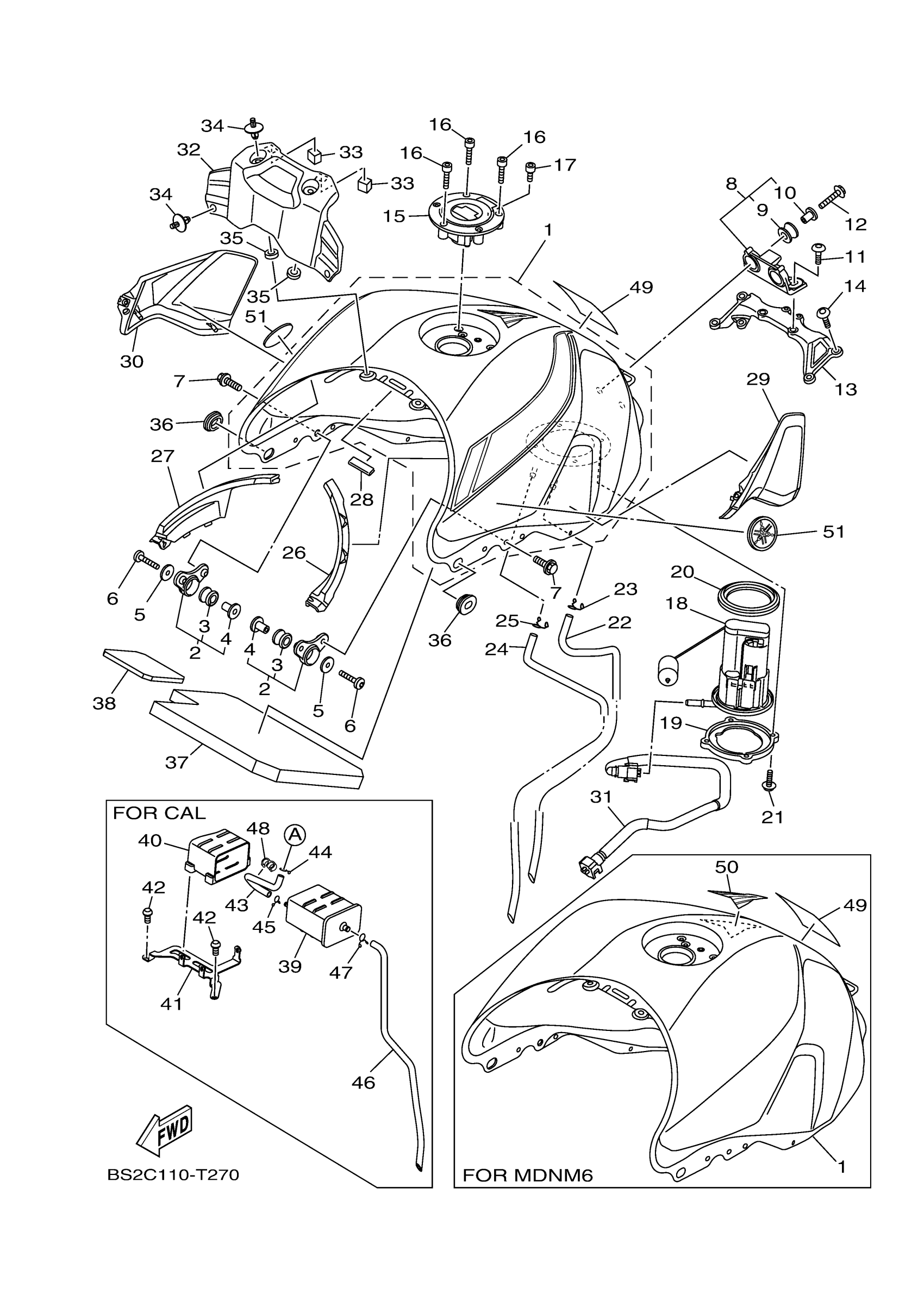

Yamaha MT09JR (MT09) BS2C1 2018 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

1RC-24110-01-PB

$847.99

2

TANK BRACKET ASSY

23P-24104-01-00

Unavailable

3

GROMMET

90480-18008-00

$3.71

4

COLLAR

90387-06266-00

$4.61

5

WASHER PLATE 137241870000

90201-06072-00

$9.49

6

BOLT, BUTTON HEAD

92012-06035-00

$2.34

7

BOLT, WITH WASHER

90119-06051-00

$8.49

8

TANK BRACKET ASSY

1RC-24104-00-00

Unavailable

9

GROMMET

3D7-24339-00-00

$4.63

10

COLLAR

90387-06136-00

$7.49

11

BOLT,HEX. SOCKET BUTTON

90111-06136-00

$5.60

12

BLOT, FLANGE DEEP RECESS

95D32-06025-00

$1.07

13

BRACKET, TANK FITTING

1RC-2413Y-00-00

$47.99

14

BOLT, BUTTON

92017-06020-00

$3.76

15

CAP ASSY

39P-24602-10-00

$255.99

16

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

17

BOLT

91312-05010-00

Unavailable

18

FUEL PUMP COMP

1RC-13907-10-00

Unavailable

19

BRACKET, FUEL PUMP

1RC-24491-00-00

Unavailable

20

O-RING

1RC-24486-00-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

22

PIPE 5

1RC-24315-00-00

Unavailable

23

CLIP

90467-090A2-00

Unavailable

24

PIPE 6

1RC-24316-00-00

Unavailable

25

CLIP

90467-090A2-00

Unavailable

26

MOLE, FUEL TANK 1

1RC-2418B-01-00

Unavailable

27

MOLE, FUEL TANK 2

1RC-2419B-01-00

Unavailable

28

MOLE 3

2S3-28347-00-00

Unavailable

29

TANK SIDE COVER ASSY 1

1RC-24106-01-00

Unavailable

30

TANK SIDE COVER ASSY 2

1RC-24108-01-00

Unavailable

31

PIPE, FUEL 1

1RC-13971-11-00

Unavailable

32

COVER, TANK

1RC-241B1-00-00

Unavailable

33

DAMPER, PLATE

90520-15012-00

Unavailable

34

RIVET(4PH)

90269-07077-00

Unavailable

35

DAMPER

5SL-84753-00-00

Unavailable

36

GROMMET(4DN)

90480-01558-00

Unavailable

37

DAMPER, PLATE 2

2PP-2414J-00-00

Unavailable

38

PROTECTOR, FUEL TANK

BS2-24141-00-00

Unavailable

49

LABEL, WARNING GENERAL INFO.

29P-2816R-01-00

Unavailable

50

EMBLEM 1

B87-24161-01-00

Unavailable

51

EMBLEM

1RC-2413B-02-00

Unavailable
