2025 Yamaha MT07 (MT07SL) Stand & Footrest Diagram

← All diagrams

Find the part on the Stand & Footrest diagram for your 2025 Yamaha MT07 (MT07SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

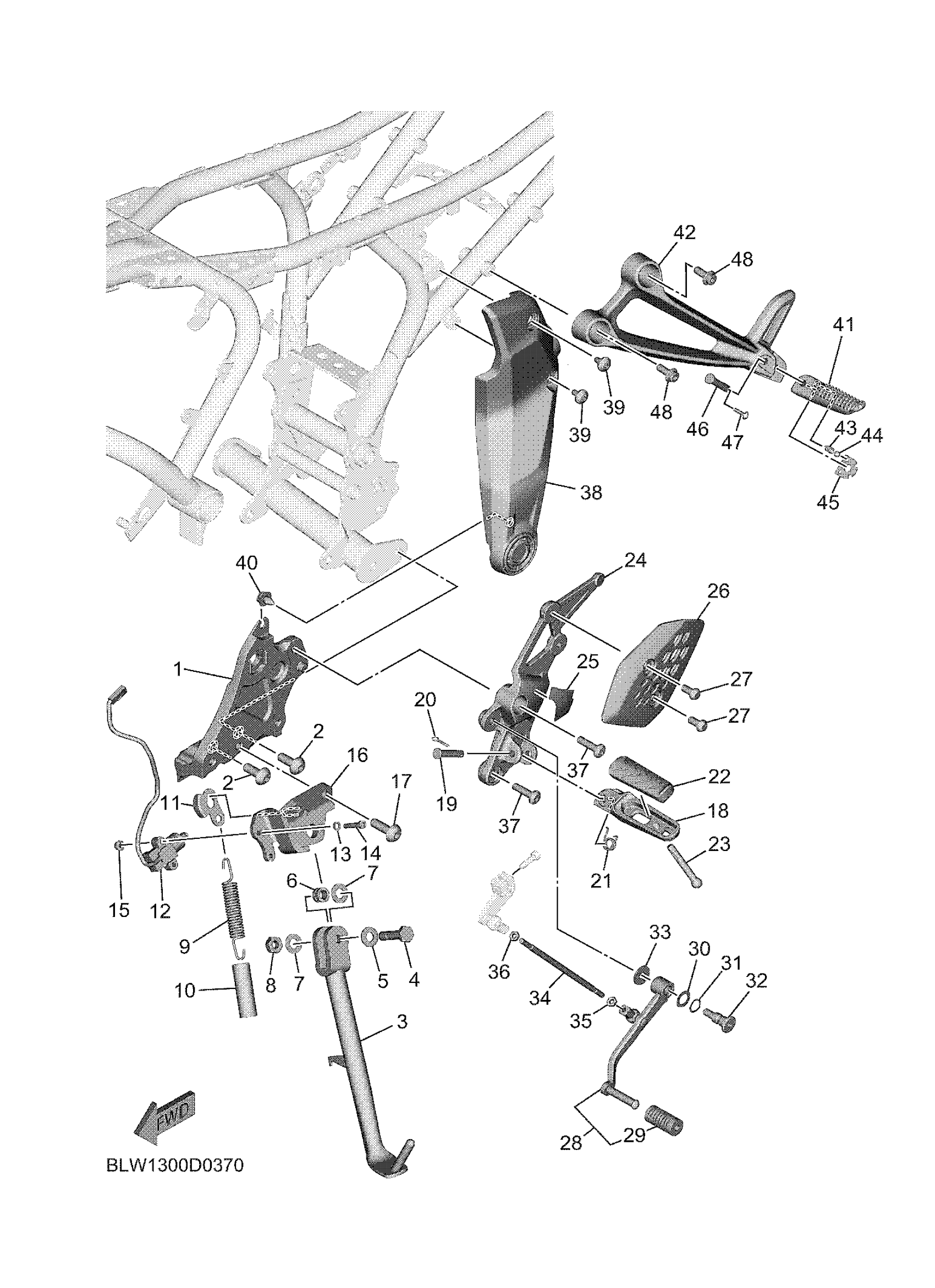

2025 Yamaha MT07 (MT07SL) Stand & Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ADAPTER 1

BLW-274A3-00-00

1
Out of stock

2

BOLT

90111-10006-00

1
Out of stock

3

STAND, SIDE

BLW-27311-00-00

—
Out of stock

4

BOLT

90101-10034-00

1
Out of stock

5

WASHER, PLATE(47X)

90201-101J1-00

1
Out of stock

6

COLLAR

90387-10020-00

1
Out of stock

7

WASHER, PLATE

90201-10075-00

1
Out of stock

8

NUT, SELF-LOCKING

90185-10012-00

1
Out of stock

9

SPRING TENSION

90506-26014-00

1
Out of stock

10

HOSE (L60)

90445-197J2-00

1
Out of stock

11

LINK, SIDE STAND

5VX-27315-00-00

1
Out of stock

12

SWITCH, SIDE STAND

1WS-82566-01-00

1
Out of stock

13

WASHER(1RW)

92907-05600-00

1
Out of stock

14

BOLT, HEXAGON SOCK

90110-05071-00

1
Out of stock

15

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

16

BRACKET, SIDE STAN

1WS-27321-00-00

—
Out of stock

17

BOLT,HEX. SOCKET BUTTON

90111-10059-00

—
Out of stock

18

FOOTREST 3

BMG-27451-00-00

—
Out of stock

19

PIN, CLEVIS

91702-08040-00

—
Out of stock

20

PIN, COTTER

91490-25020-00

—
Out of stock

21

SPRING, TORSION

90508-18135-00

—
Out of stock

22

COVER, FOOTREST

BLW-27413-00-00

—
Out of stock

23

BOLT

90109-08235-00

—
Out of stock

24

BRACKET 2

BLW-27442-00-00

—
Out of stock

25

SEAT 1

BLW-27498-00-00

—
Out of stock

26

PLATE 1

BLW-27445-00-00

—
Out of stock

27

BOLT, BUTTON

92017-08016-00

—
Out of stock

28

SHIFT PEDAL ASSY

BLW-18110-00-00

—
Out of stock

29

COVER, SHIFT PEDAL

1WS-18113-00-00

—
Out of stock

30

WASHER, PLATE

90201-12051-00

—
Out of stock

31

WASHER, WAVE (17W)

90206-12074-00

—
Out of stock

32

BOLT

4BP-27434-11-00

—
Out of stock

33

WASHER, PLATE

90201-08053-00

—
Out of stock

34

ROD, SHIFT

5A8-18115-00-00

—
Out of stock

35

NUT

90170-06026-00

—
Out of stock

36

Nut

95314-06700-00

—
Out of stock

37

BOLT (3XF1)

90110-08220-00

—
Out of stock

38

COVER 1

BLW-27453-00-00

—
Out of stock

39

BOLT

90109-06346-00

—
Out of stock

40

RIVET

90269-08008-00

—
Out of stock

41

FOOTREST, REAR 1

B7N-27431-00-00

—
Out of stock

42

BRACKET 4

BLW-2741L-00-00

—
Out of stock

43

SPRING, COMPRESSION (22N)

90501-12743-00

—
Out of stock

44

BALL

93501-04011-00

—
Out of stock

45

WASHER, SPECIAL

5VX-27437-00-00

—
Out of stock

46

PIN, WITH HOLE (2G2)

90240-08063-00

—
Out of stock

47

PIN, COTTER

91490-25020-00

—
Out of stock

48

BOLT, HEXAGON SOCK

90110-08111-00

—
Out of stock
