2025 Yamaha MT07 (MT07SL) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 2025 Yamaha MT07 (MT07SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

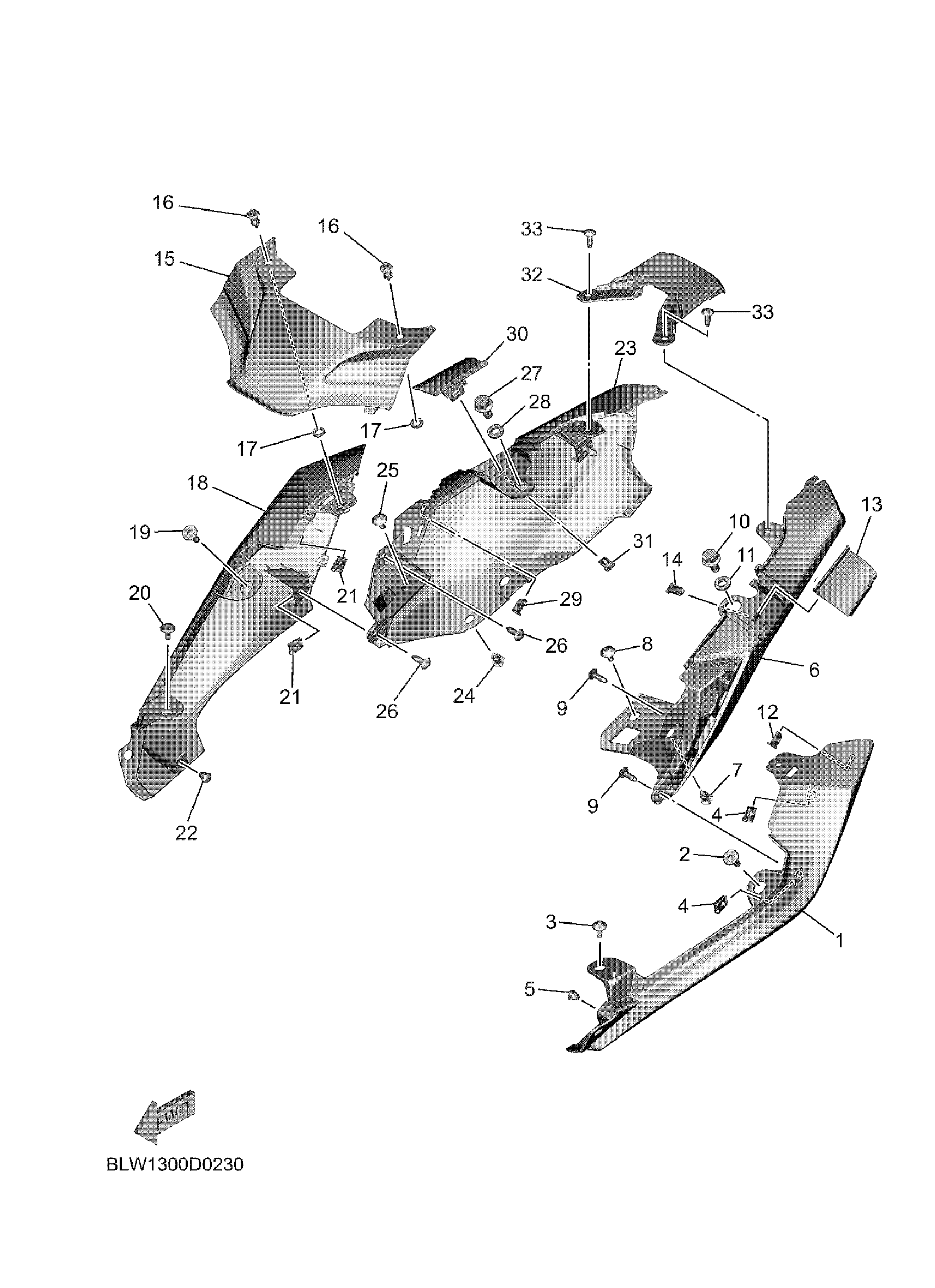

2025 Yamaha MT07 (MT07SL) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

BLW-21711-00-P2

—

$71.23

In stock

2

BOLT

90109-06259-00

1

$2.72

In stock

3

BOLT

90109-05022-00

1

$1.25

In stock

4

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

5

PLUG(1NL)

90338-07180-00

1

$5.68

In stock

6

COVER, SIDE 5

BLW-2171E-00-00

—

$28.46

In stock

7

RIVET

90269-06008-00

1

$7.40

In stock

8

BOLT

90109-05022-00

1

$1.25

In stock

9

SCREW, TAPPING

97702-50016-00

1

$1.98

In stock

10

BOLT, WASHER BASED

90105-08021-00

1

$6.26

In stock

11

SPACER(2GV)

90560-08326-00

—

$3.49

In stock

12

CLAMP

90464-04005-00

1

$3.20

In stock

13

MOLE, SIDE COVER 3

BLW-2171N-00-00

1

$4.86

In stock

14

CLAMP

90464-04005-00

1

$3.20

In stock

15

MOLE, SIDE COVER 1

BLW-2171L-00-00

1

$10.75

In stock

16

RIVET

90269-06001-00

—

$5.42

In stock

17

DAMPER

5SL-84753-00-00

—

$5.27

In stock

18

COVER, SIDE 2

BLW-21721-00-P2

—

$71.23

In stock

19

BOLT

90109-06259-00

1

$2.72

In stock

20

BOLT

90109-05022-00

1

$1.25

In stock

21

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

22

PLUG(1NL)

90338-07180-00

1

$5.68

In stock

23

COVER, SIDE 6

BLW-2171X-00-00

—

$28.46

In stock

24

RIVET

90269-06008-00

1

$7.40

In stock

25

BOLT

90109-05022-00

1

$1.25

In stock

26

SCREW, TAPPING

97702-50016-00

1

$1.98

In stock

27

BOLT, WASHER BASED

90105-08021-00

1

$6.26

In stock

28

SPACER(2GV)

90560-08326-00

—

$3.49

In stock

29

CLAMP

90464-04005-00

1

$3.20

In stock

30

MOLE, SIDE COVER 4

BLW-2171R-00-00

—

$4.86

In stock

31

CLAMP

90464-04005-00

1

$3.20

In stock

32

COVER, TAILLIGHT

BLW-2172X-00-00

—

$8.25

In stock

33

SCREW, TAPPING(4MV)

97707-50016-00

—

$1.16

In stock
