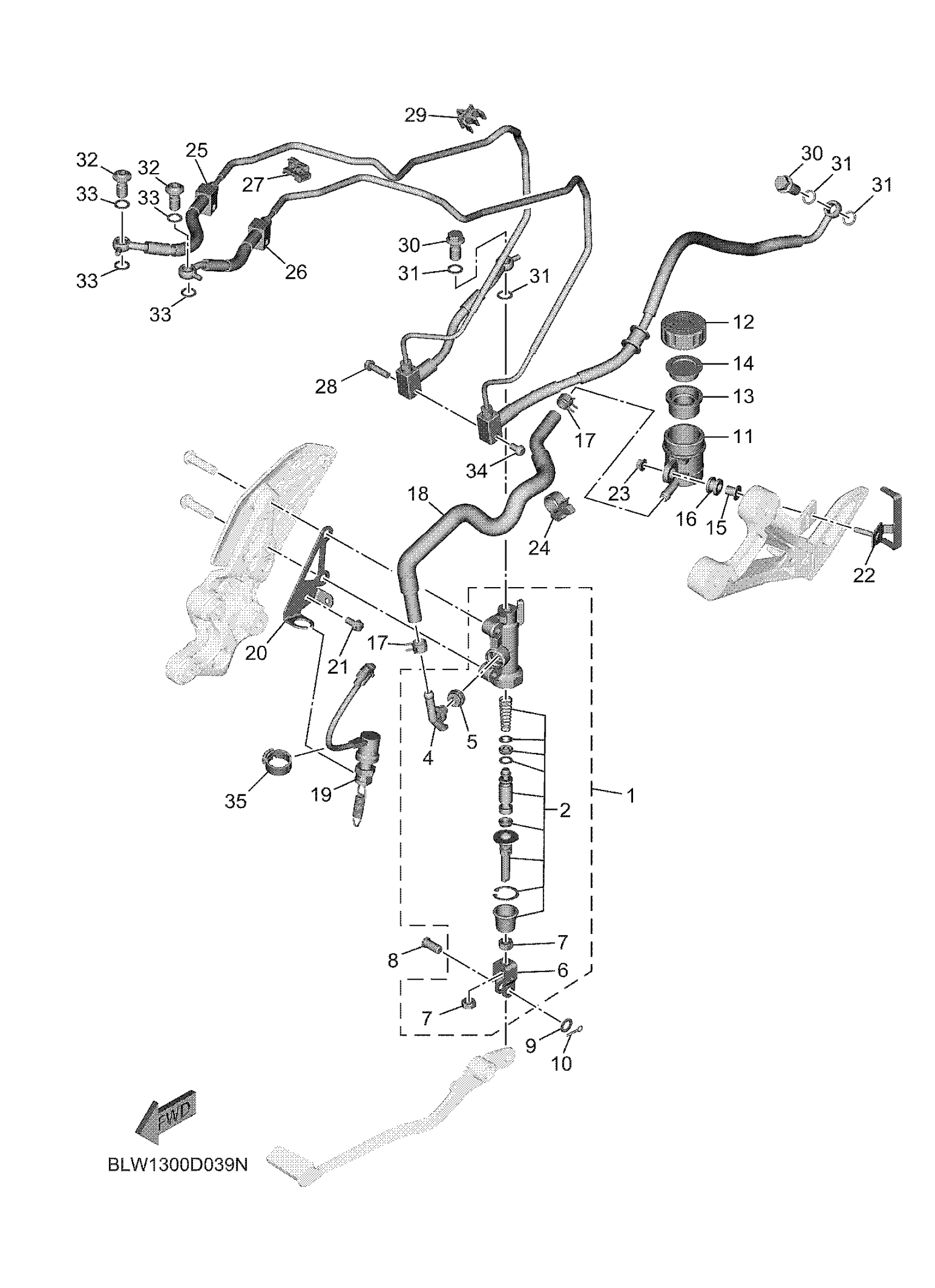

Yamaha MT07SL (MT07) BLW2 2025 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

BLW-2583V-00-00

$148.99

2

CYLINDER KIT, MASTER

5VX-25808-51-00

Unavailable

4

JOINT

2D1-2582A-01-00

$5.49

5

O-RING

4BP-2585F-01-00

Unavailable

6

JOINT

4BP-27222-02-00

$29.99

7

NUT

90170-08010-00

$8.49

8

PIN, CLEVIS

90240-08005-00

$8.49

9

WASHER, PLATE

90201-08070-00

$7.49

10

PIN, COTTER (648)

91490-20015-00

$2.20

11

TANK, RESERVOIR

14B-25894-00-00

$63.99

12

CAP, RESERVOIR

2C0-25852-00-00

$7.99

13

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

14

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

15

COLLAR

90387-05028-00

$5.60

16

GROMMET

2C0-26326-00-00

$6.99

17

CLIP (7K7)

90467-11044-00

Unavailable

18

HOSE, RESERVOIR

BLW-25895-00-00

Unavailable

19

STOP SWITCH ASSY

BLW-82530-00-00

Unavailable

20

STAY, STOP SWITCH

BLW-2144G-00-00

Unavailable

21

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

22

HOLDER, RESERVE TA

1WS-2582E-00-00

Unavailable

23

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

24

CLAMP

90464-17008-00

Unavailable

25

HOSE, BRAKE

BLW-2584D-00-00

Unavailable

26

BRAKE HOSE ASSY 5

BLW-2584E-00-00

Unavailable

27

CLAMP

90464-07014-00

Unavailable

28

BOLT, FLANGE

90105-06148-00

Unavailable

29

CLAMP

90464-07009-00

Unavailable

30

BOLT, UNION

90401-10020-00

Unavailable

31

GASKET

90430-10005-00

Unavailable

32

BOLT, UNION

90401-10172-00

Unavailable

33

GASKET

90430-10005-00

Unavailable

34

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

35

CLAMP

90464-16001-00

Unavailable
