2025 Yamaha MT07 (MT07SL) Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 2025 Yamaha MT07 (MT07SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

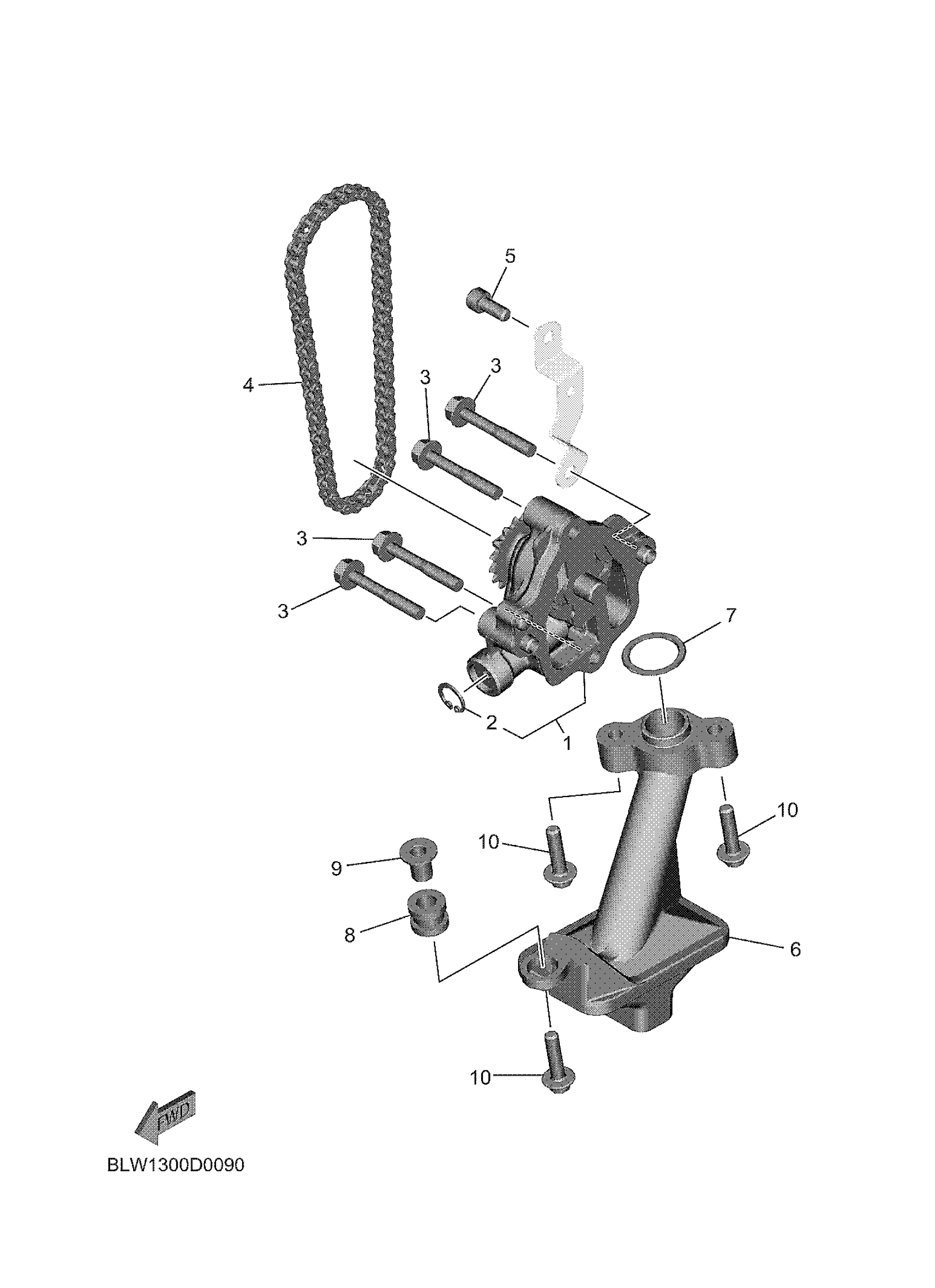

2025 Yamaha MT07 (MT07SL) Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSY

BLW-13300-00-00

—

$134.77

In stock

2

CIRCLIP

99009-15500-00

1

$9.15

In stock

3

BOLT, FLANGE

95817-06040-00

1

$4.54

In stock

4

CHAIN

94581-79060-00

—

$23.17

In stock

5

BOLT (33M)

91312-06014-00

1

$4.74

In stock

6

STRAINER HOUSING A

1WS-13410-00-00

1

$44.74

In stock

7

O-RING

93210-20802-00

1
Out of stock

8

GROMMET

90480-13010-00

1

$5.80

In stock

9

COLLAR, DISTANCE

5VY-13117-10-00

1

$8.31

In stock

10

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

1

$8.14

In stock
