2025 Yamaha MT07 (MT07SL) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 2025 Yamaha MT07 (MT07SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

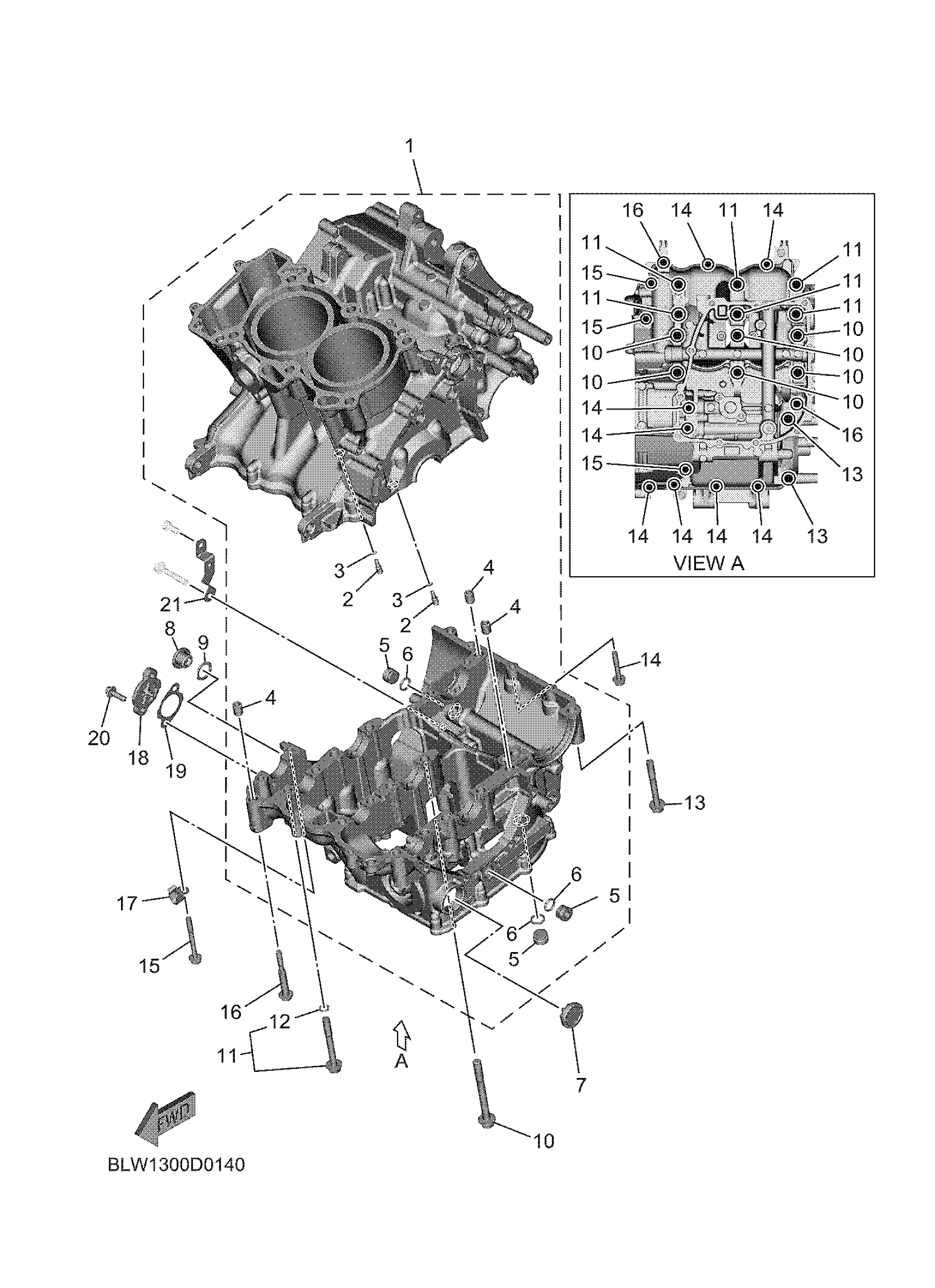

2025 Yamaha MT07 (MT07SL) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSY

BLW-15100-09-00

1

$1,921.99

In stock

2

NOZZLE 3

5EB-15155-00-00

1

$12.27

In stock

3

O-RING (210)

93210-04092-00

1

$2.88

In stock

4

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

5

PLUG

BME-15189-00-00

1

$8.49

In stock

6

O-RING(3LD)

93210-12790-00

1

$5.75

In stock

7

GAUGE, LEVEL

2H7-15361-00-00

1

$84.99

In stock

8

PLUG

36Y-15189-01-00

—

$12.03

In stock

9

O-RING(1L9)

93210-16325-00

1

$5.86

In stock

10

BOLT, WITH WASHER

90119-09018-00

1

$25.40

In stock

11

BOLT, CRANKCASE JO

1WS-15156-00-00

1

$6.15

In stock

12

O-RING (11M)

93210-07540-00

1

$5.77

In stock

13

BOLT, FLANGE

95814-08065-00

1

$3.54

In stock

14

BOLT, FLANGE

95817-06040-00

1

$4.54

In stock

15

BOLT, FLANGE

95812-06060-00

1

$2.68

In stock

16

BOLT

90109-06100-00

—

$7.60

In stock

17

CLAMP

90462-08102-00

—

$6.52

In stock

18

COVER, OIL PUMP

1WS-15416-10-00

—

$14.38

In stock

19

GASKET, OIL PUMP C

BLW-15456-00-00

—

$6.05

In stock

20

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

—

$2.49

In stock

21

HOLDER

BLW-15128-00-00

—

$5.38

In stock
← Camshaft & Chain Crankcase Cover 1 →
