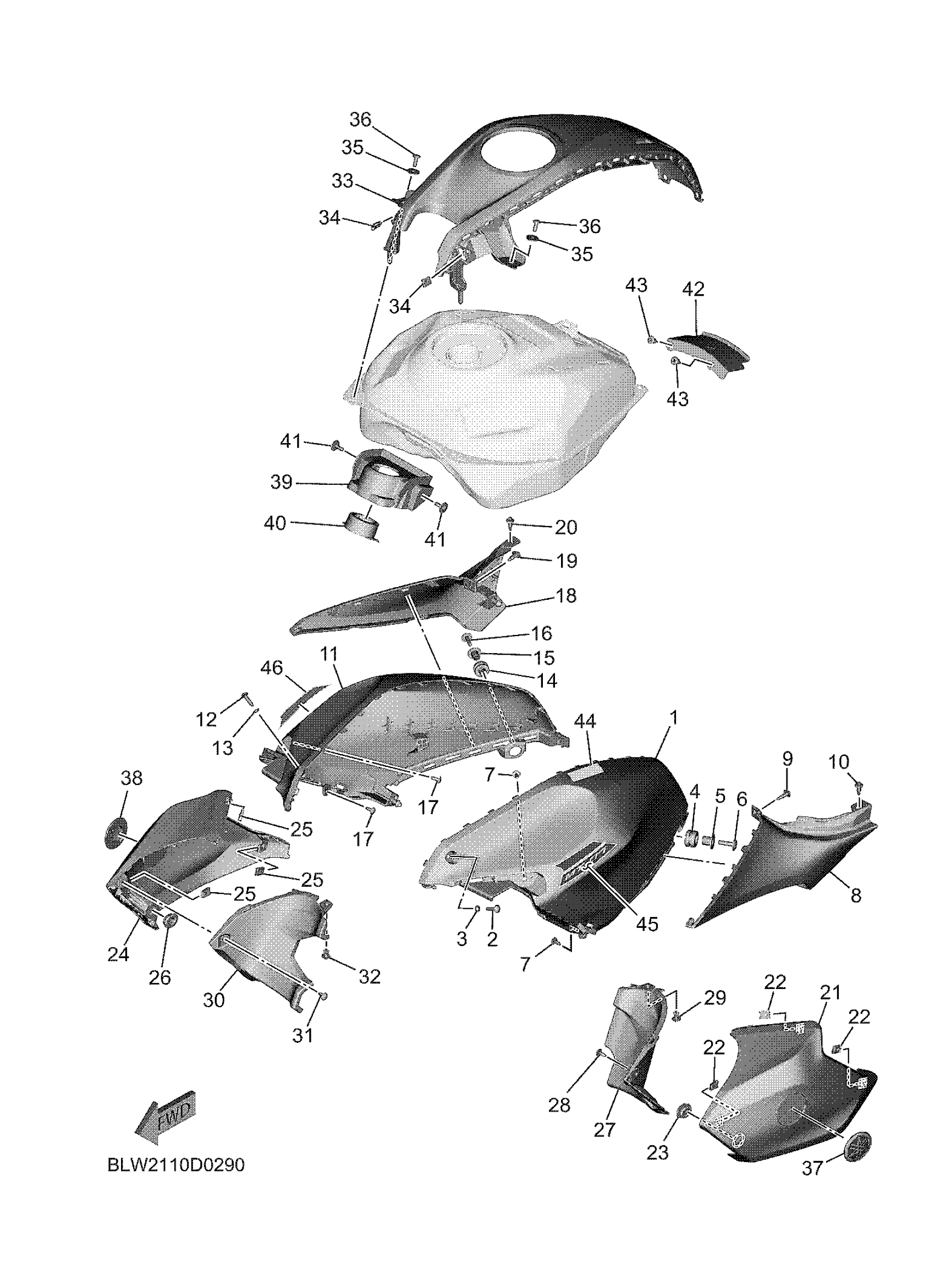

Yamaha MT07SL (MT07) BLW2 2025 FUEL TANK 2 Diagram

#

Description
Price

1

COVER, SIDE 1

BLW-24129-00-P2

$92.99

2

SCREW, ROUND TAPPING

90160-05014-00

$7.49

3

. WASHER, PLATE

90202-05088-00

Unavailable

4

GROMMET

90480-17007-00

Unavailable

5

COLLAR

90387-10107-00

$5.60

6

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

7

SCREW, TRUSS TAP.

97707-50012-00

$4.63

8

SEAT, KNEE GRIP 1

BLW-24121-00-00

Unavailable

9

RIVET

90269-07923-00

$2.34

10

RIVET

90269-06001-00

$5.60

11

COVER, SIDE 2

BLW-24139-00-P2

$92.99

12

SCREW, ROUND TAPPING

90160-05014-00

$7.49

13

. WASHER, PLATE

90202-05088-00

Unavailable

14

GROMMET

90480-17007-00

Unavailable

15

COLLAR

90387-10107-00

$5.60

16

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

17

SCREW, TRUSS TAP.

97707-50012-00

$4.63

18

SEAT, KNEE GRIP 2

BLW-24122-00-00

Unavailable

19

RIVET

90269-07923-00

$2.34

20

RIVET

90269-06001-00

$5.60

21

SCOOP, AIR 1

BLW-2137W-00-00

Unavailable

22

NUT, SPRING(1YT)

90183-05042-00

Unavailable

23

GROMMET(4BH)

90480-01559-00

Unavailable

24

SCOOP, AIR 2

BLW-2137X-00-00

Unavailable

25

NUT, SPRING(1YT)

90183-05042-00

Unavailable

26

GROMMET(4BH)

90480-01559-00

Unavailable

27

PANEL, INNER 1

BLW-2836K-00-00

Unavailable

28

SCREW, TRUSS TAP.

97707-50012-00

$4.63

29

RIVET

90269-06019-00

Unavailable

30

PANEL, INNER 2

BLW-2836L-00-00

Unavailable

31

SCREW, TRUSS TAP.

97707-50012-00

$4.63

32

RIVET

90269-06019-00

Unavailable

33

COVER, TOP

BLW-2171A-00-00

Unavailable

34

NUT, SPRING(1YT)

90183-05042-00

Unavailable

35

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

36

SCREW, ROUND TAPPING

90160-05012-00

Unavailable

37

EMBLEM

1RC-2413B-02-00

Unavailable

38

EMBLEM

1RC-2413B-02-00

Unavailable

39

COVER, MAIN SWITCH

BLW-82568-00-00

Unavailable

40

COVER, MAIN SWITCH

3P6-82568-00-00

Unavailable

41

SCREW, WITH WASHER (22W)

90159-05073-00

Unavailable

42

COVER

BLW-24217-00-00

Unavailable

43

RIVET

90269-06008-00

Unavailable

44

LABEL, CAUTION

BLW-2118K-00-00

Unavailable

45

GRAPHIC, 1

BLW-217F1-20-00

Unavailable

46

GRAPHIC, 2

BLW-217F2-20-00

Unavailable
