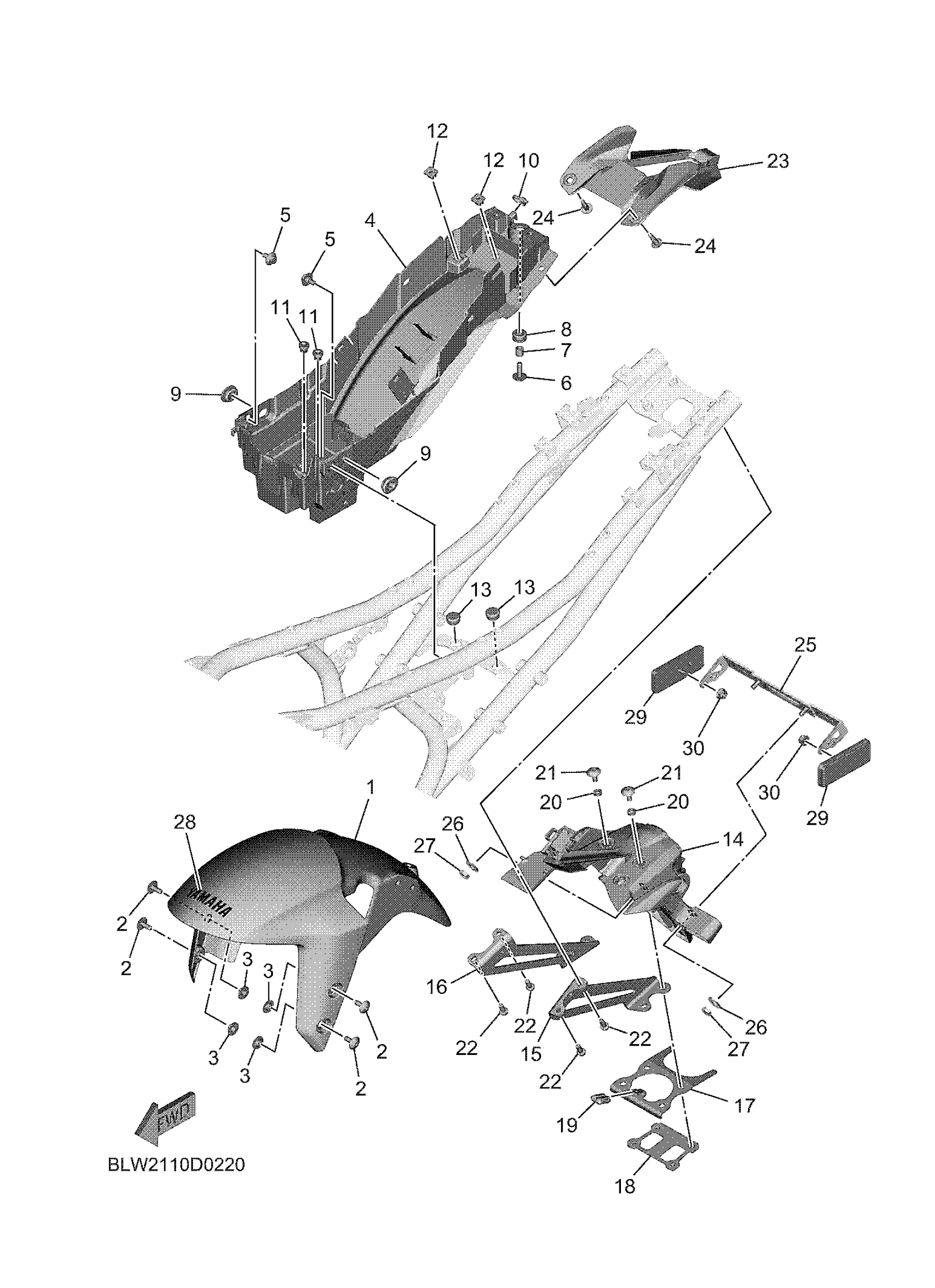

Yamaha MT07SL (MT07) BLW2 2025 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

BLW-21511-00-P2

$146.99

2

BOLTHEX. SOCKET BUTTON

90111-06191-00

$1.07

3

COLLAR (3L1)

90387-07717-00

$8.49

4

BOX, BATTERY 1

BLW-8212B-00-00

$47.99

5

BOLT

90109-06202-00

$7.49

6

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

7

COLLAR

90387-06113-00

$11.49

8

GROMMET

90480-14003-00

$8.49

9

GROMMET(4BH)

90480-01559-00

$5.60

10

CLAMP

90464-16061-00

$8.49

11

NUT, ADJUSTING

4B4-84334-00-00

$4.89

12

GROMMET

90480-09003-00

Unavailable

13

PLUG

90338-14008-00

Unavailable

14

GUARD, MUD

BLW-21629-10-00

$42.99

15

STAY 1

BLW-2164F-00-00

Unavailable

16

STAY 2

BLW-2164G-00-00

Unavailable

17

STAY, PLATE

BAT-21682-00-00

Unavailable

18

BRACKET 6

BAT-2161G-00-00

Unavailable

19

DAMPER

1WS-21746-00-00

Unavailable

20

COLLAR

90387-06106-00

Unavailable

21

BOLT

90111-06061-00

Unavailable

22

BOLT, FLANGE DEEP RECESS

95E32-06012-00

Unavailable

23

COVER, REAR FENDER 1

BLW-2163A-10-00

Unavailable

24

RIVET

90269-07008-00

Unavailable

25

BRACKET, LICENSE

BLW-84751-00-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

Unavailable

27

NUT, SELF-LOCKING

95617-06100-00

Unavailable

28

EMBLEM, YAMAHA

99247-00080-00

Unavailable

29

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

30

NUT, FLANGE

95702-05500-00

Unavailable
