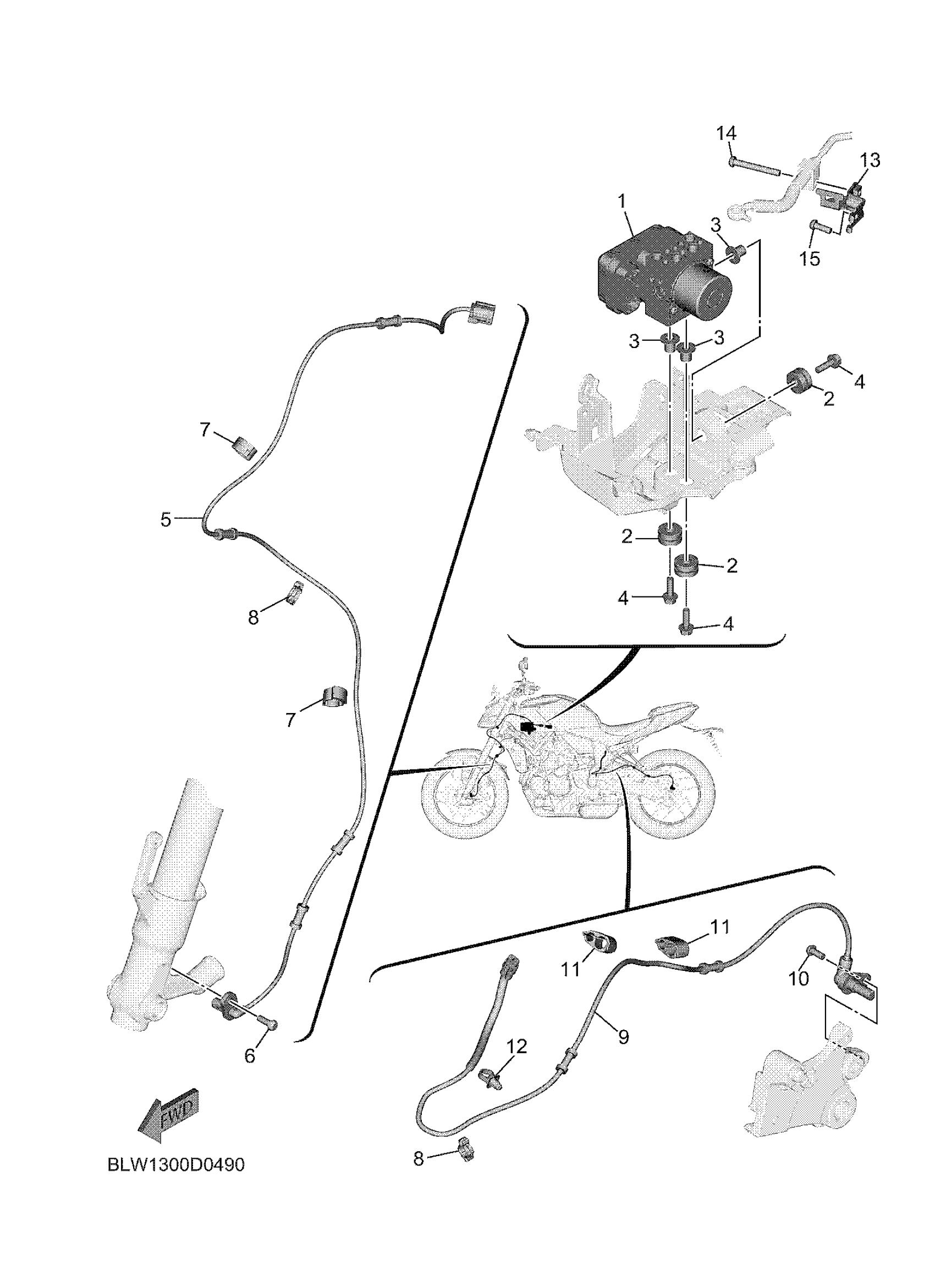

Yamaha MT07SL (MT07) BLW2 2025 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASS

BLW-85930-08-00

Unavailable

2

GROMET (3X3)

90480-14229-00

$5.75

3

COLLAR

90387-06289-00

$2.30

4

BOLT, FLANGE

95817-06020-00

$2.52

5

WHEEL SENSOR ASSY, FRONT

BLW-85970-01-00

$124.17

6

BOLT, BUTTON HEAD

92017-06016-00

$5.75

7

CLAMP

90464-14010-00

$3.06

8

CLAMP

90464-12013-00

$6.27

9

WHEEL SENSOR ASSY,

BLW-85980-00-00

$117.20

10

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$2.47

11

CLAMP(4GL)

90464-10233-00

$5.93

12

CLAMP

90464-30009-00

$3.07

13

BRACKET 1

BLW-2175T-00-00

Unavailable

14

BOLT, BUTTON HEAD

92012-06045-00

Unavailable

15

BOLT, BUTTON HEAD

92012-06016-00

$5.80
