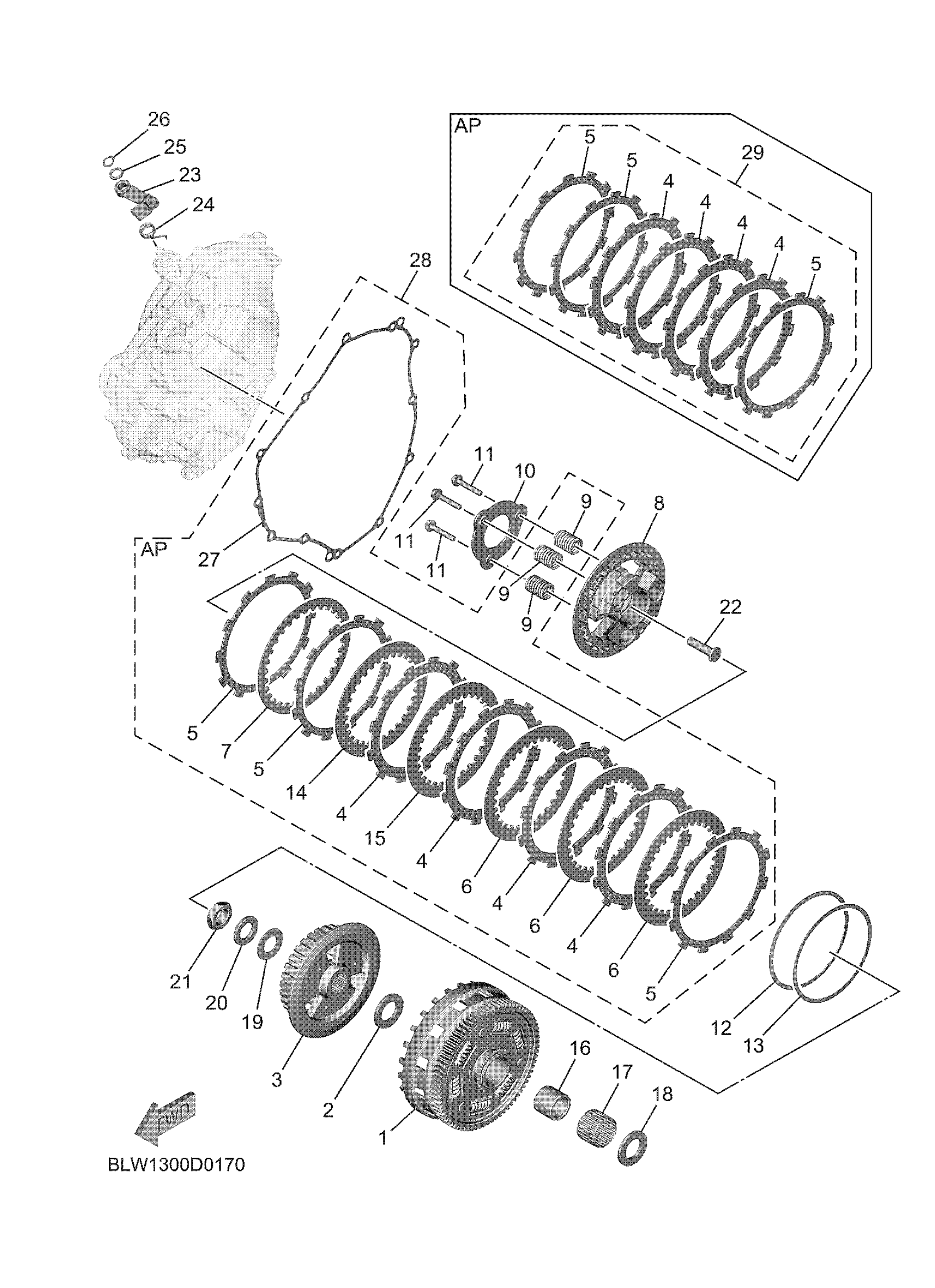

Yamaha MT07SL (MT07) BLW2 2025 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEA

1WS-16150-00-00

$391.99

2

PLATE, THRUST

363-16154-00-00

$16.49

3

BOSS, CLUTCH

BEB-16371-00-00

Unavailable

4

PLATE, FRICTION

B7N-16321-00-00

$13.99

5

PLATE, FRICTION 2

B90-16331-00-00

$23.99

6

PLATE, CLUTCH 2

5VY-16325-20-00

$11.99

7

PLATE, CLUTCH 1

1TD-16324-00-00

$9.99

8

PRESSURE PLATE ASS

BEB-16350-00-00

$92.99

9

SPRING, COMPRESSIO

BEB-16173-00-00

Unavailable

10

PLATE, PRESSURE 2

B90-16352-00-00

$10.49

11

SCREW, SPRING

2CR-16337-00-00

$4.37

12

SPRING.,CUSHION

1TD-16383-01-00

$30.99

13

PLATE, SEAT

1TD-16384-00-00

$17.49

14

PLATE, CLUTCH 2

4B1-16325-00-00

Unavailable

14

PLATE, CLUTCH 2

5VY-16325-20-00

$11.99

14

PLATE, CLUTCH 1

BR9-16324-10-00

Unavailable

15

PLATE, CLUTCH 2

4B1-16325-00-00

Unavailable

15

PLATE, CLUTCH 2

5VY-16325-20-00

$11.99

15

PLATE, CLUTCH 1

BR9-16324-10-00

Unavailable

16

SPACER 1

1WS-16181-00-00

Unavailable

17

BEARING

93310-332C2-00

Unavailable

18

PLATE, THRUST

363-16154-00-00

$16.49

19

WASHER, PLATE

90201-20030-00

Unavailable

20

WASHER, CONICAL SPRING

90208-20001-00

Unavailable

21

NUT

90179-20022-00

Unavailable

22

ROD, PUSH 1

1WS-16356-00-00

Unavailable

23

PUSH LEVER ASSY

1WS-16340-01-00

Unavailable

24

SPRING, TORSION

90508-18132-00

Unavailable

25

WASHER, PLATE

90201-10029-00

Unavailable

26

CIRCLIP(10W)

99009-10400-00

Unavailable

27

GASKET, CRANKCASE

BLW-15461-00-00

Unavailable

28

CLUTCH PLATE KIT

BLW-W001G-00-00

Unavailable

29

FRICTION PLATE KIT

BEB-W001M-00-00

Unavailable
