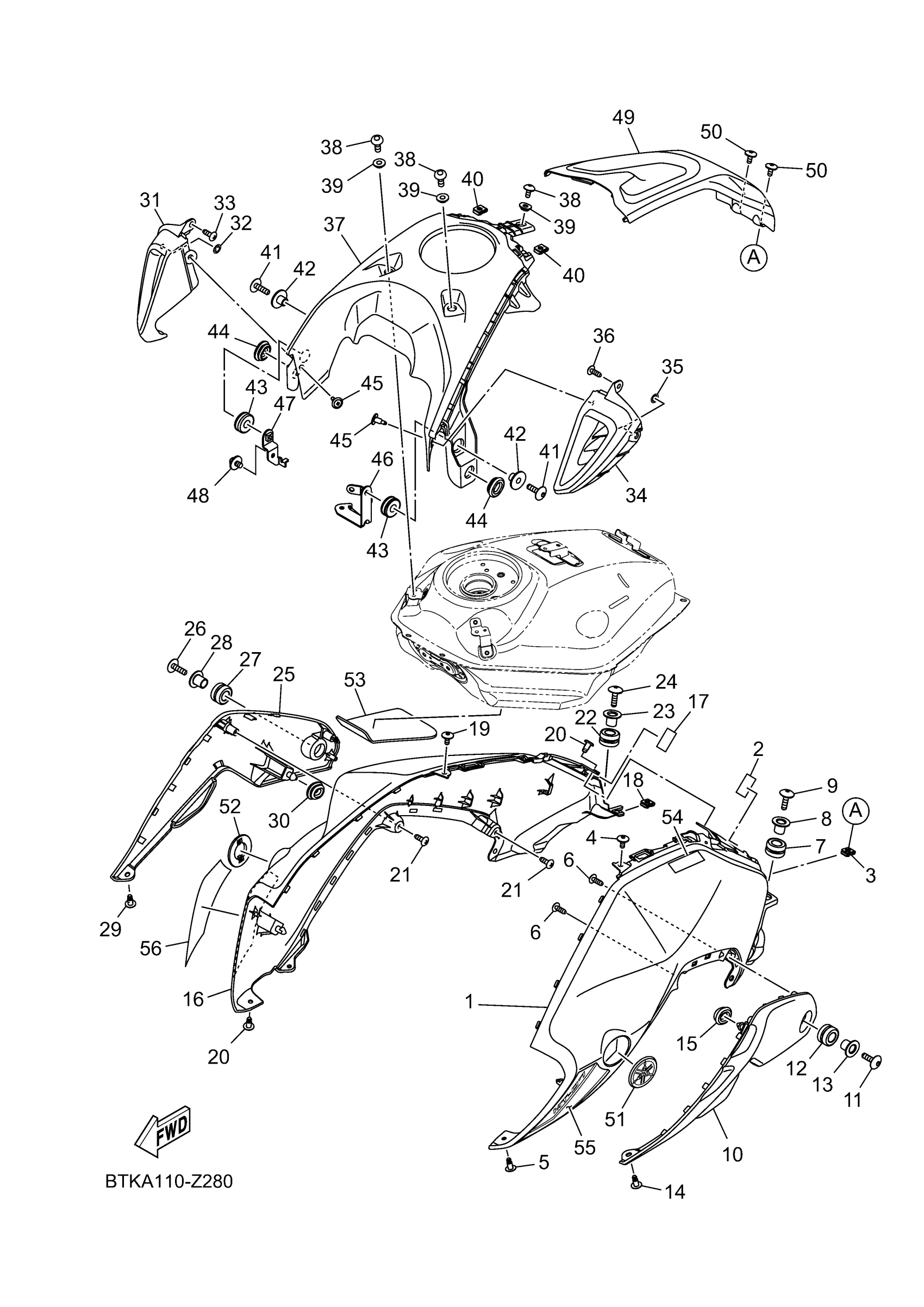

Yamaha MT07RL (MT07) BTKA 2024 FUEL TANK 2 Diagram

#

Description
Price

1

COVER, SIDE 1

BAT-24129-00-P1

$91.99

2

PROTECTOR

D49-2117G-00-00

$9.49

3

NUT, SPRING

90183-050A6-00

$8.49

4

BOLT

90111-05003-00

$8.49

5

RIVET

90269-06019-00

$3.18

6

SCREW, ROUND TAPPING

90160-05012-00

$7.49

7

GROMMET

90480-17007-00

Unavailable

8

COLLAR

90387-10107-00

$5.60

9

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

10

SEAT, KNEE GRIP 1

BAT-24121-00-00

$23.99

11

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

12

GROMMET

90480-17007-00

Unavailable

13

COLLAR

90387-10107-00

$5.60

14

RIVET

90269-06019-00

$3.18

15

GROMMET(4DN)

90480-01558-00

$4.19

16

COVER, SIDE 2

BAT-24139-00-P1

Unavailable

17

PROTECTOR

D49-2117G-00-00

$9.49

18

NUT, SPRING

90183-050A6-00

$8.49

19

BOLT

90111-05003-00

$8.49

20

RIVET

90269-06019-00

$3.18

21

SCREW, ROUND TAPPING

90160-05012-00

$7.49

22

GROMMET

90480-17007-00

Unavailable

23

COLLAR

90387-10107-00

$5.60

24

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

25

SEAT, KNEE GRIP 2

BAT-24122-00-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

27

GROMMET

90480-17007-00

Unavailable

28

COLLAR

90387-10107-00

$5.60

29

RIVET

90269-06019-00

$3.18

30

GROMMET(4DN)

90480-01558-00

$4.19

31

SCOOP, AIR 2

BAT-2137X-00-00

Unavailable

32

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

33

SCREW, ROUND TAPPING

90160-05012-00

$7.49

34

SCOOP, AIR 1

BAT-2137W-00-00

Unavailable

35

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

36

SCREW, ROUND TAPPING

90160-05012-00

$7.49

37

COVER, CAP

BAT-2464E-00-00

Unavailable

38

BOLT

90111-05002-00

Unavailable

39

COLLAR

90387-05071-00

Unavailable

40

NUT, SPRING

90183-050A6-00

$8.49

41

BOLT,HEX. SOCKET BUTTON

90111-06084-00

Unavailable

42

COLLAR

90387-07042-00

Unavailable

43

GROMMET(2AL)

90480-14452-00

Unavailable

44

GROMMET(4BH)

90480-01559-00

Unavailable

45

RIVET

90269-06081-00

Unavailable

46

BRACKET, CAP

BAT-2463E-00-00

Unavailable

47

BRACKET, SEAT

BAT-2412F-00-00

Unavailable

48

BOLT,HEX. SOCKET BUTTON

90111-06122-00

Unavailable

49

COVER, TOP

BAT-2171A-00-00

Unavailable

50

BOLT

90111-05003-00

$8.49

51

EMBLEM

1RC-2413B-02-00

Unavailable

52

EMBLEM

1RC-2413B-02-00

Unavailable

53

PROTECTOR 2

B2G-2315J-00-00

Unavailable

54

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable

55

GRAPHIC, 1

BAT-217F1-50-00

Unavailable

56

GRAPHIC, 2

BAT-217F2-50-00

Unavailable
