2023 Yamaha MT07 (MT07PL) Steering Handle & Cable Diagram

← All diagrams

Find the part on the Steering Handle & Cable diagram for your 2023 Yamaha MT07 (MT07PL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

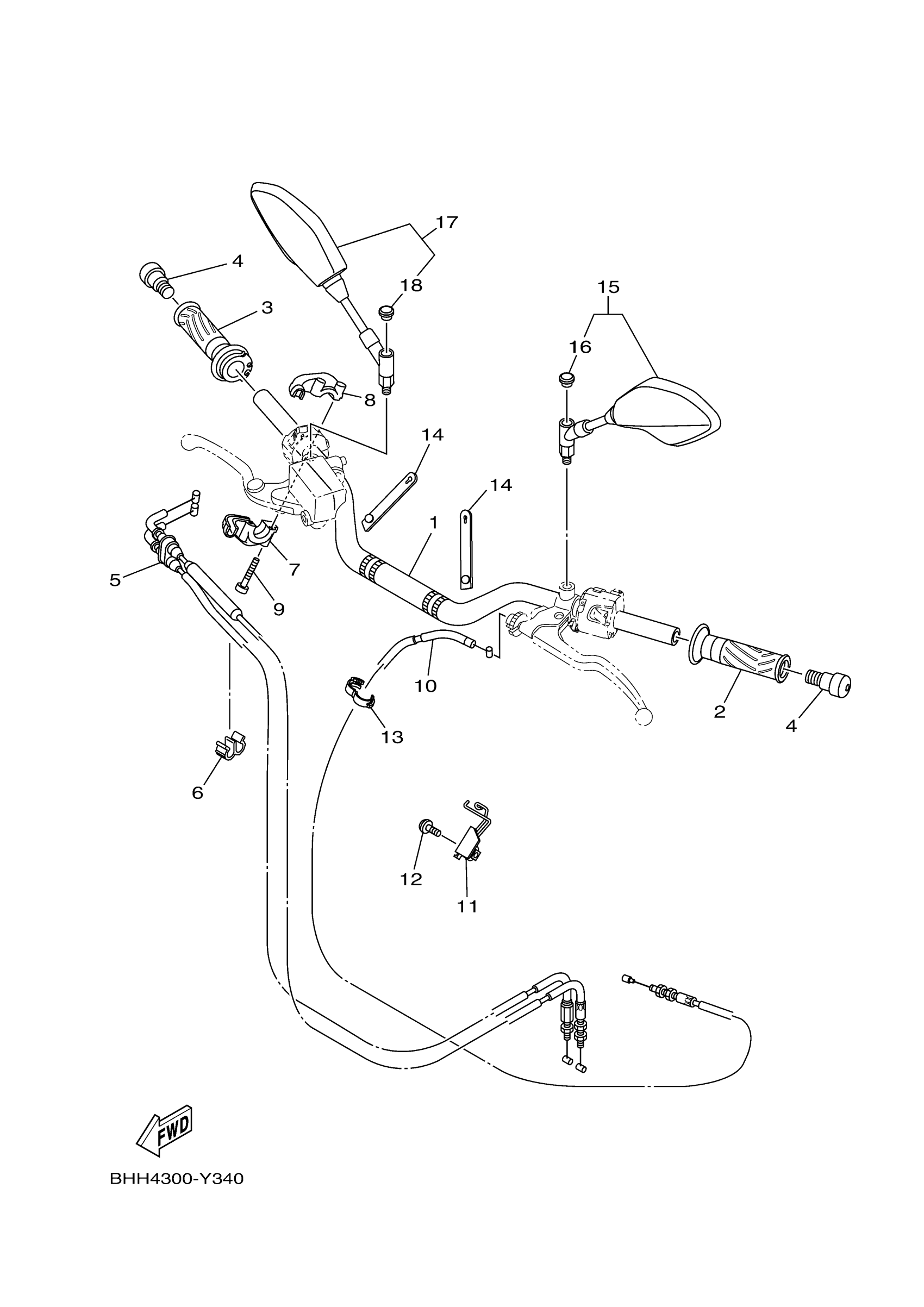

2023 Yamaha MT07 (MT07PL) Steering Handle & Cable Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HANDLEBAR

BAT-26111-10-00

1

$194.40

In stock

2

GRIP

4YR-26241-03-00

1

$9.28

In stock

3

GRIP ASSY

1WS-26240-01-00

1

$22.71

In stock

4

END, GRIP

5RU-26246-00-00

1

$26.66

In stock

5

THROTTLE CABLE ASS

BAT-26301-10-00

1

$44.78

In stock

6

CLAMP,WIRE

39P-2627E-00-00

1

$4.62

In stock

7

CAP, GRIP UPPER

4KG-26281-00-00

1

$25.98

In stock

8

CAP, GRIP UNDER

3XW-26282-01-00

1

$26.47

In stock

9

BOLT,SOCKET

91317-05035-00

1

$6.25

In stock

10

WIRE, CLUTCH

BAT-26335-00-00

—

$20.02

In stock

11

BRACKET

1WS-2612E-00-00

—

$22.20

In stock

12

BOLT,HEX. SOCKET BUTTON

90111-06101-00

1

$6.31

In stock

13

CLAMP

90464-16023-00

1

$2.86

In stock

14

BAND

B5U-82591-00-00

1

$4.02

In stock

15

1

$90.49

In stock

16

CAP

5PS-26133-20-00

—

$5.35

In stock

17

—

$90.49

In stock

18

CAP

5PS-26133-20-00

—

$5.35

In stock
