2023 Yamaha MT07 (MT07PL) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2023 Yamaha MT07 (MT07PL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

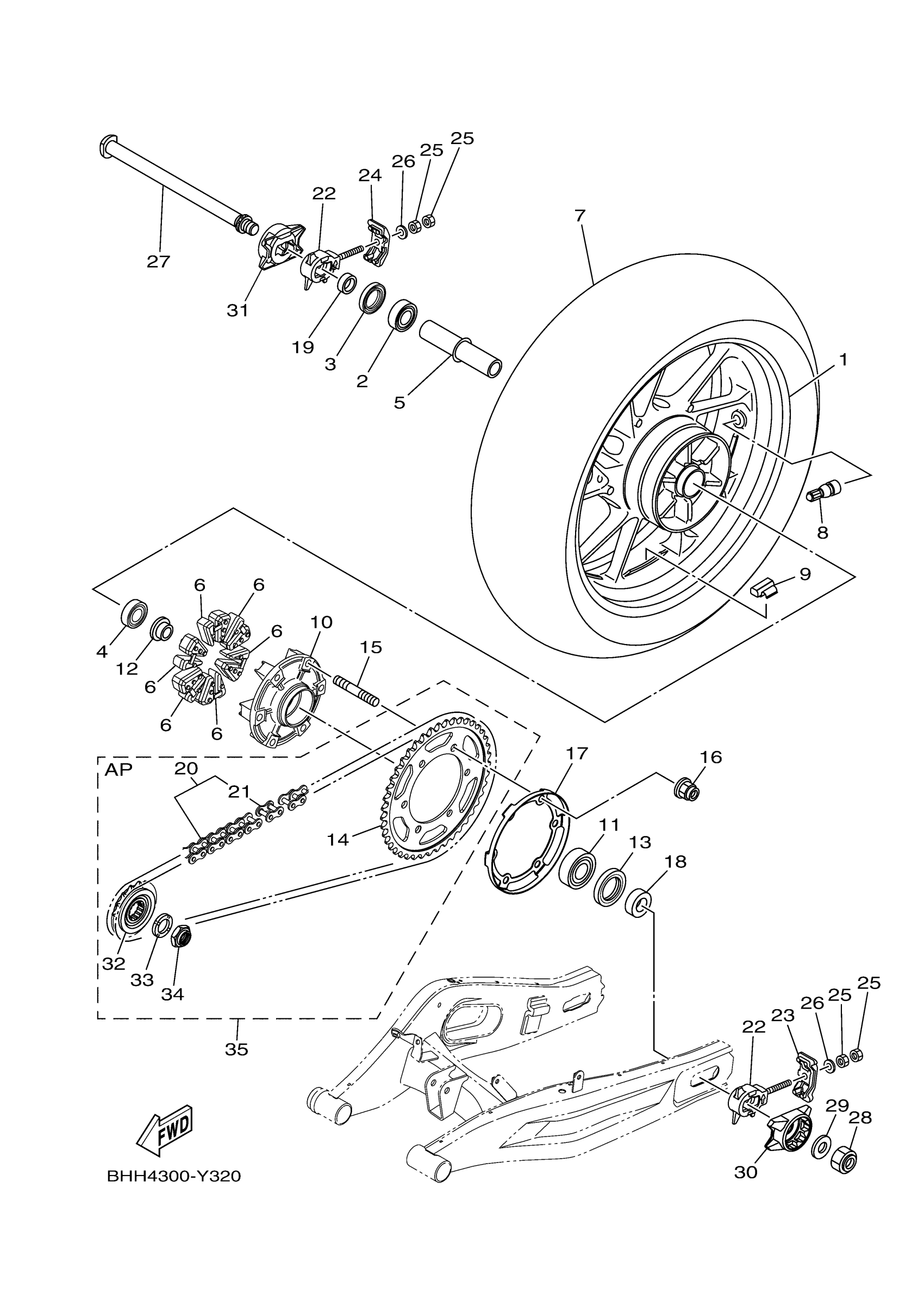

2023 Yamaha MT07 (MT07PL) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAST WHEEL, REAR

2DR-25338-00-98

1
Out of stock

2

BEARING

93306-20480-00

1
Out of stock

3

OIL SEAL (28X47X7-102)

93102-28022-00

1
Out of stock

4

BEARING(8AB)

93306-00444-00

1
Out of stock

5

SPACER, BEARING

2PP-25317-00-00

1
Out of stock

6

DAMPER

5SL-25364-00-00

1
Out of stock

8

VALVE, RIM(2GH)

93900-00030-00

1
Out of stock

9

BALANCER, WHEEL

5MT-25398-00-00

1
Out of stock

9

BALANCER, WHEEL

5MT-25398-10-00

1
Out of stock

9

BALANCER, WHEEL

5MT-25398-20-00

—
Out of stock

10

CLUTCH, HUB

5JJ-25366-00-00

1
Out of stock

11

BEARING

93306-205B5-00

1
Out of stock

12

COLLAR, WHEEL

1RC-25383-00-00

1
Out of stock

13

OIL SEAL

93106-40013-00

1
Out of stock

14

SPROCKET, DRIVEN (

1WS-25443-00-00

1
Out of stock

15

BOLT, STUD

90116-10048-00

—
Out of stock

16

NUT, S/L FLANGE

95602-10200-00

—
Out of stock

17

BRACKET 1

1RC-2537W-01-00

—
Out of stock

18

COLLAR

90387-20036-00

—
Out of stock

19

COLLAR

90387-20035-00

—
Out of stock

20

CHAIN

94A40-21108-00

—
Out of stock

21

JOINT, CHAIN

94682-5502R-00

—
Out of stock

22

PULLER, CHAIN 1

1WS-25388-00-00

—
Out of stock

23

END 1

1WS-22174-00-00

—
Out of stock

24

END 1

1WS-22175-00-00

—
Out of stock

25

NUT

95302-08600-00

—
Out of stock

26

.. WASHER, PLATE

92990-08600-00

1
Out of stock

27

SHAFT, PIVOT

4FN-22141-00-00

—
Out of stock

28

NUT, SELF-LOCKING

90185-18009-00

—
Out of stock

29

WASHER, PLATE

90201-18021-00

—
Out of stock

30

COVER, REAR AXLE 1

1WS-2538D-00-00

—
Out of stock

31

COVER, REAR AXLE 2

1WS-2538N-00-00

—
Out of stock

32

SPROCKET, DRIVE (1

1WS-17460-00-00

—
Out of stock

33

WASHER, CONICAL SPRING

90208-22002-00

—
Out of stock

34

NUT

90179-22018-00

—
Out of stock

35

CHAIN & SPROCKET K

BAT-W001A-01-00

—
Out of stock
