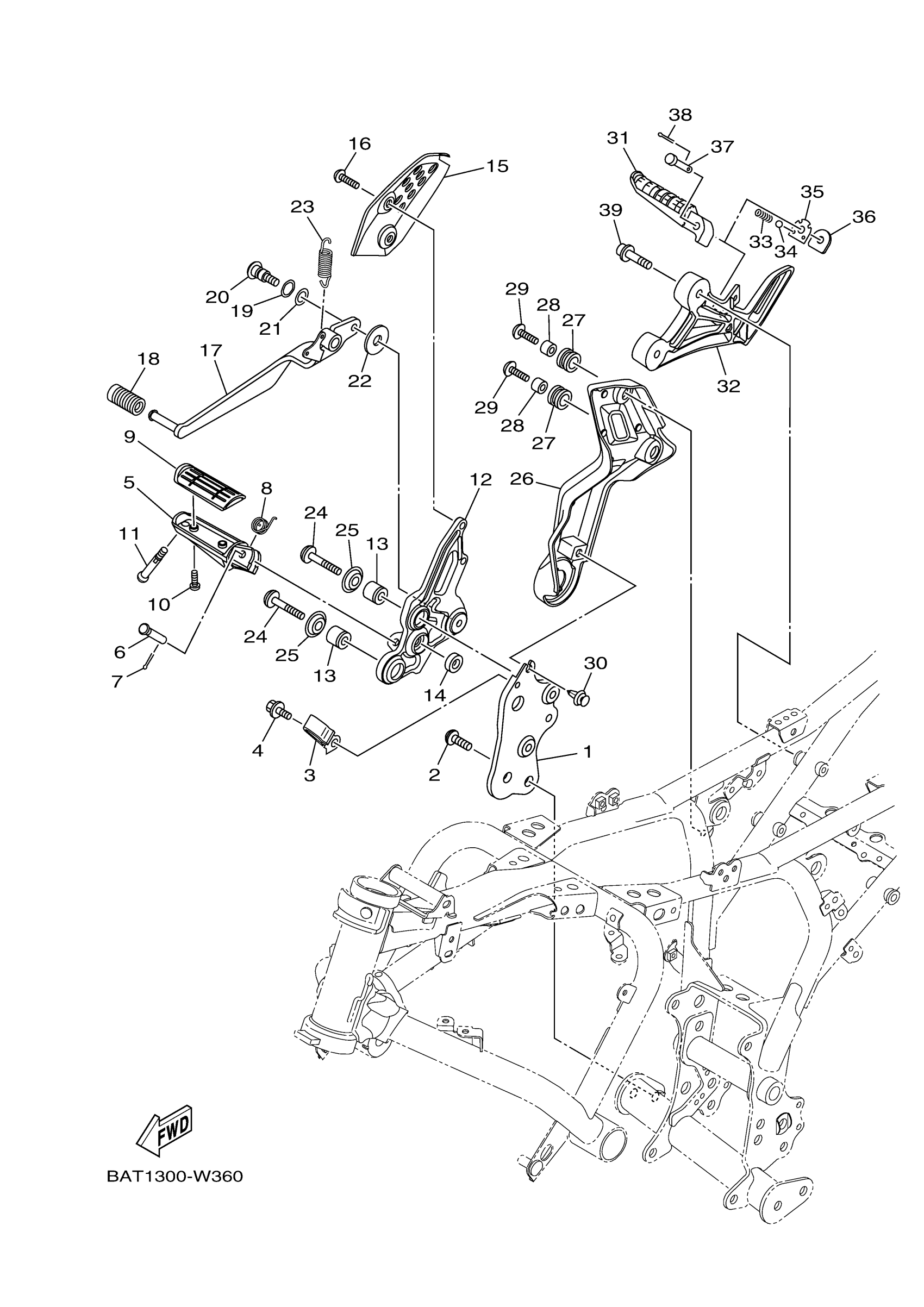

Yamaha MT07PL (MT07) BATT 2023 STAND & FOOTREST 2 Diagram

#

Description
Price

1

BRACKET,ADAPTER 2

B34-274A4-00-00

$76.99

2

BOLT

90111-10006-00

$5.49

3

CLAMP

90465-08045-00

Unavailable

4

BOLT, FLANGE

95022-06010-00

$5.60

5

FOOTREST

1WS-27461-00-00

$36.99

6

PIN, CLEVIS

91702-08040-00

$4.35

7

PIN, COTTER

91490-25020-00

$3.19

8

SPRING, TORSION

90508-18056-00

$2.17

9

COVER, FOOTREST

3YX-27413-00-00

$29.99

10

SCREW, PAN HEAD(3YL)

98580-05014-00

Unavailable

11

BOLT

90109-08225-00

$5.60

12

BRACKET 3

1WS-27443-10-00

$86.99

13

DAMPER, FOOTREST

36Y-27414-00-00

$27.99

14

STOPPER, MAIN STAND

5VX-27114-00-00

$6.99

15

PLATE 2

1WS-27446-10-00

Unavailable

16

BOLT

90111-08022-00

Unavailable

17

PEDAL, BRAKE

BAT-27211-00-00

Unavailable

18

COVER, SHIFT PEDAL

1WS-18113-00-00

Unavailable

19

WASHER, WAVE (17W)

90206-12074-00

Unavailable

20

BOLT

4BP-27434-11-00

Unavailable

21

WASHER, PLATE

90201-12051-00

Unavailable

22

WASHER, PLATE

90201-08053-00

Unavailable

23

SPRING, TENSION

90506-23008-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

Unavailable

25

WASHER(1UF)

90209-08295-00

Unavailable

26

COVER 2

BAT-27463-00-00

Unavailable

27

GROMMET

90480-14003-00

Unavailable

28

COLLAR

90387-06057-00

Unavailable

29

SCREW(4DN)

90149-06302-00

Unavailable

30

RIVET

90269-08008-00

Unavailable

31

FOOTREST, REAR 2

B7N-27441-00-00

Unavailable

32

BRACKET 5

1WS-2742L-02-00

Unavailable

33

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

34

BALL

93501-04011-00

Unavailable

35

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

36

WASHER, SPECIAL

BAT-27437-00-00

Unavailable

37

PIN, CLEVIS

91702-08040-00

$4.35

38

PIN, COTTER

91490-25020-00

$3.19

39

BOLT, HEXAGON SOCKET HEAD(4KG)

90110-08231-00

Unavailable
