Description

Price

1

HYDRAULIC UNIT ASS

BAT-85930-06-00

$429.99

2

GROMET (3X3)

90480-14229-00

$8.49

3

COLLAR

90387-06M60-00

Unavailable

4

BOLT, FLANGE

95817-06020-00

$3.81

5

WHEEL SENSOR ASSY,

BAT-85970-01-00

$199.99

6

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$3.76

7

CLAMP

90464-12013-00

$8.49

8

CLAMP

90464-04001-00

$7.49

9

WHEEL SENSOR ASSY,

1XB-85980-01-00

Unavailable

10

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$3.76

11

CLAMP(4GL)

90464-10233-00

$7.49

12

CLAMP

90464-30009-00

Unavailable

13

BRACKET 1

BAT-2175T-00-00

$8.49

14

BOLT, BUTTON HEAD

92012-06045-00

Unavailable

15

WASHER, PLATE

90201-06055-00

Unavailable

16

BOLT, BUTTON HEAD

92012-06016-00

Unavailable

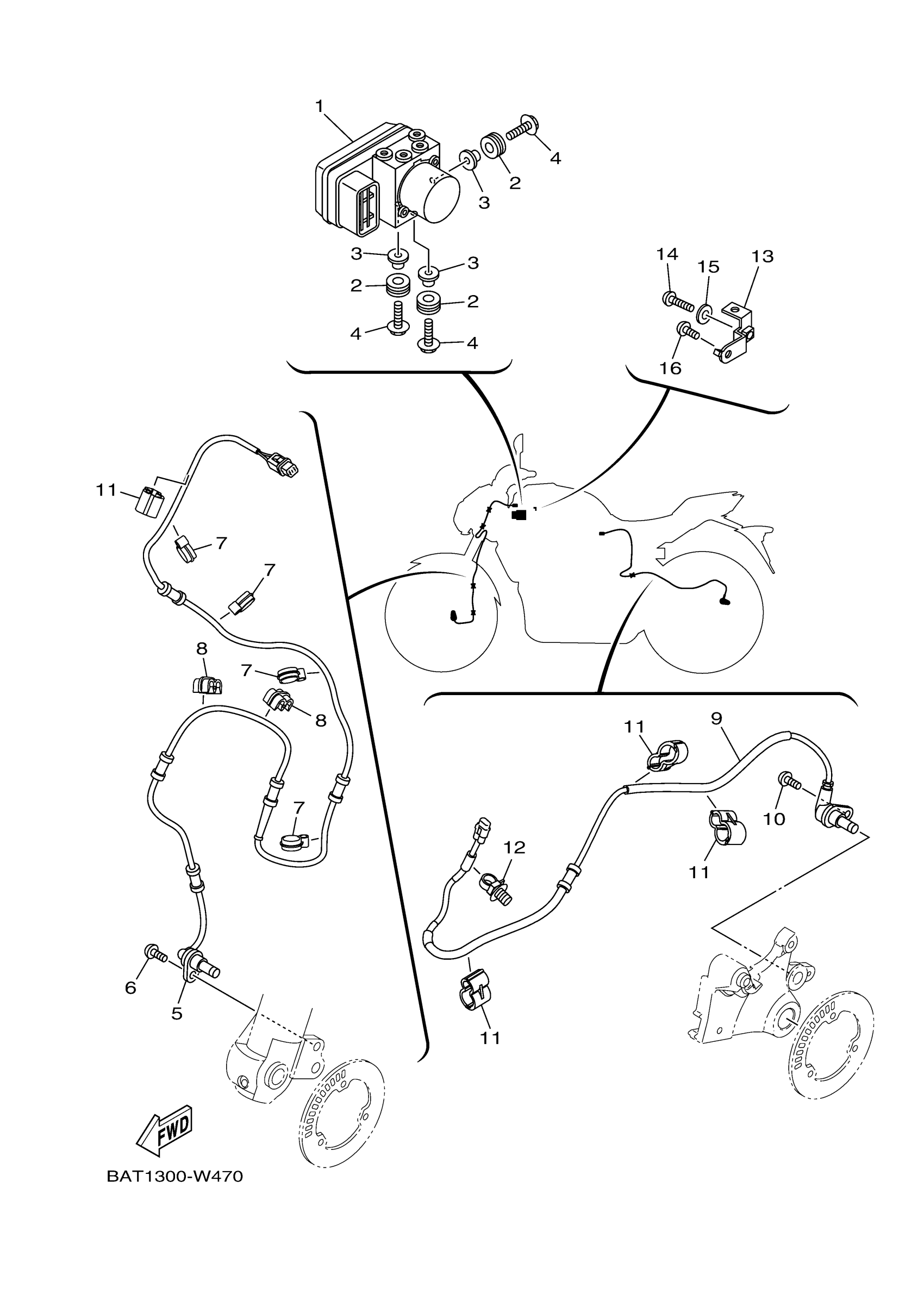

Yamaha MT07PL (MT07) BATT 2023 ELECTRICAL 3 Diagram

HYDRAULIC UNIT ASS

GROMET (3X3)

COLLAR

BOLT, FLANGE

WHEEL SENSOR ASSY,

BOLT, BUTTON HEAD(4NK)

CLAMP

CLAMP

WHEEL SENSOR ASSY,

BOLT, BUTTON HEAD(4NK)

CLAMP(4GL)

CLAMP

BRACKET 1

BOLT, BUTTON HEAD

WASHER, PLATE

BOLT, BUTTON HEAD
