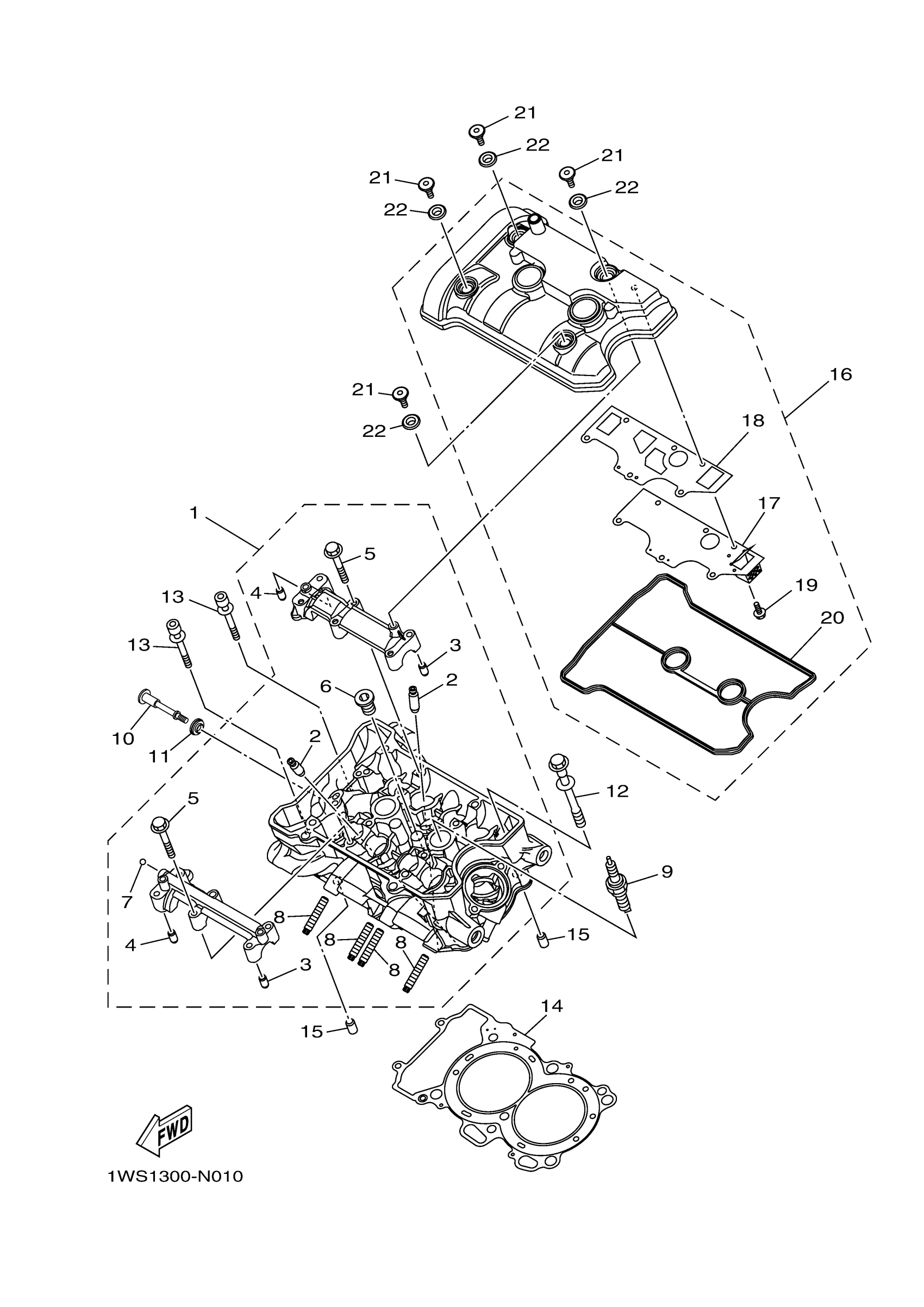

Yamaha MT07PL (MT07) BATT 2023 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

BAT-11101-09-00

Unavailable

2

GUIDE, VALVE 1

4D9-11133-10-00

$43.99

3

PIN, DOWEL(3XW)

91808-16023-00

$8.49

4

PIN, DOWEL(3XW)

91808-16023-00

$8.49

5

BOLT, WASHER BASED

90105-06027-00

$7.49

6

PLUG, STRAIGHT SCREW

90340-18002-00

$10.49

7

BALL

93501-04011-00

$8.49

8

BOLT, STUD

90116-08087-00

$8.49

9

PLUG, SPARK (NGK LMAR8A-9)

LMA-R8A9S-00-00

Unavailable

10

BOLT

90109-06293-00

$13.99

11

RUBBER, MOUNT 1

5VY-1111G-00-00

$12.99

12

BOLT, WITH WASHER

90119-10056-00

$10.49

13

BOLT, HEXAGON SOCKET HEAD

90110-06081-00

Unavailable

14

GASKET, CYLINDER H

1WS-11181-00-00

$51.99

15

PIN, DOWEL(3VD)

99530-10114-00

$2.55

16

COVER, CYLINDER HE

1WS-11190-10-00

Unavailable

17

PLATE, BREATHER

1WS-11165-01-00

Unavailable

18

GASKET, BREATHER C

1WS-11169-00-00

Unavailable

19

BOLT, FLANGE

90105-05025-00

Unavailable

20

GASKET, HEAD COVER 1

1WS-11193-01-00

Unavailable

21

BOLT(4BP)

90109-066F0-00

Unavailable

22

RUBBER, MOUNT 1

5VY-1111G-00-00

$12.99
