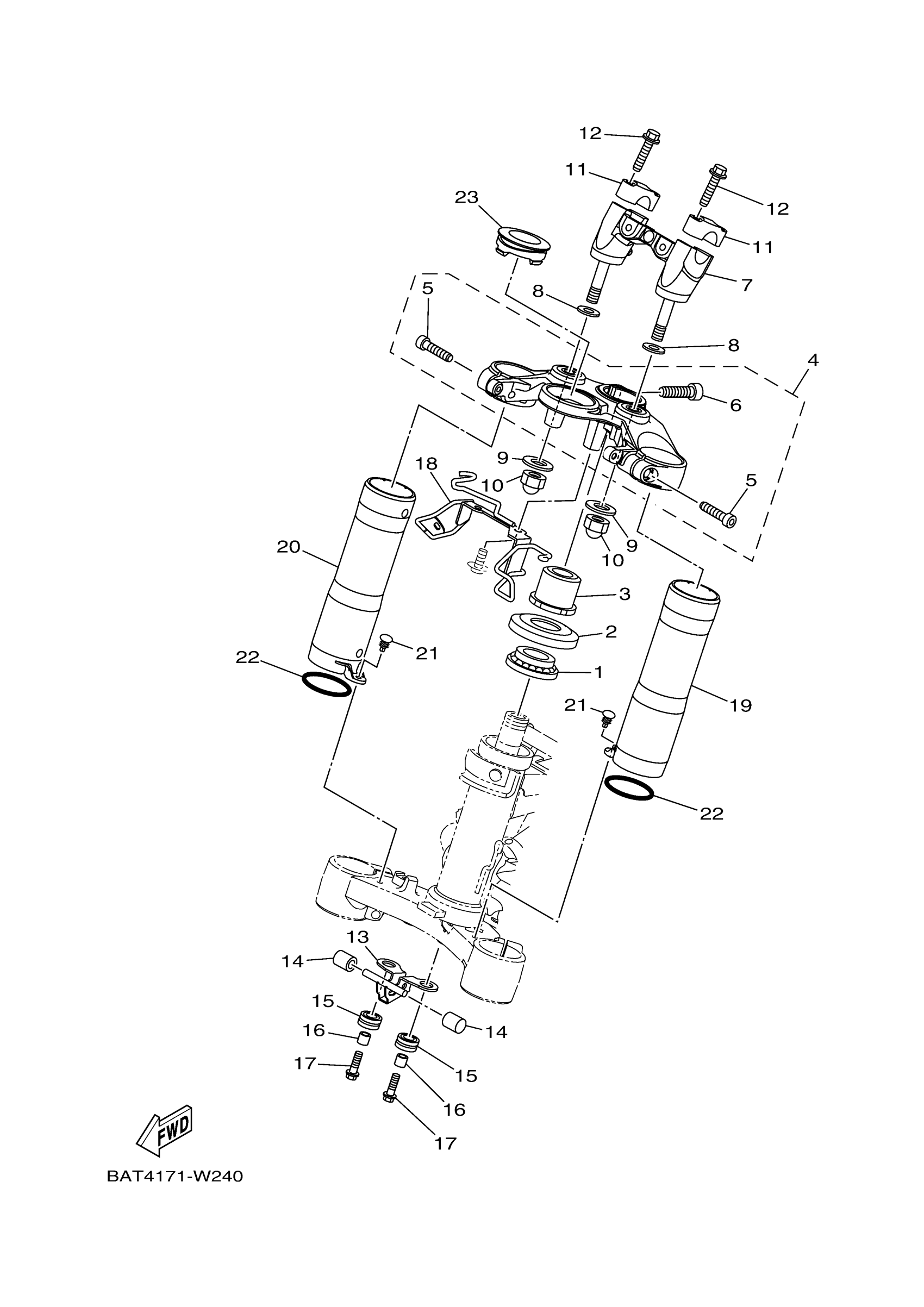

Yamaha MT07NL (MT07) BATE 2022 STEERING Diagram

#

Description
Price

1

BEARING(3FV)

93399-99931-00

$57.99

2

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

3

NUT

1WS-23357-00-00

Unavailable

4

HANDLE CROWN COMP.

BAT-23430-00-00

$189.99

5

BOLT,SOCKET

91314-08030-00

$2.34

6

BOLT, HEXAGON SOCK

90110-10057-00

Unavailable

7

HOLDER, HANDLE LOWER

B34-F3442-10-00

$227.99

8

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

9

WASHER, PLATE

90201-10043-00

$2.22

10

NUT, CROWN

90176-10003-00

$9.49

11

HOLDER, HANDLE UPPER

B34-F3441-10-00

Unavailable

12

BOLT, SOCKET

91317-08030-00

$8.49

13

BRACKET 1

BAT-2334G-00-00

$26.99

14

DAMPER

1WS-84527-00-00

$2.29

15

DAMPER

3C3-83513-00-00

$7.99

16

COLLAR (J10)

90387-06026-00

Unavailable

17

BOLT, FLANGE DEEP RECESS

95D37-06025-00

Unavailable

18

BRACKET 2

BAT-2334H-00-00

Unavailable

19

COVER, UPPER 1

1WS-23121-01-00

Unavailable

20

COVER, UPPER 2

1WS-23131-01-00

Unavailable

21

RIVET(81E)

90269-05055-00

Unavailable

22

O-RING

93210-40M10-00

Unavailable

23

CAP, SWITCH

36P-82552-00-00

Unavailable
