2022 Yamaha MT07 (MT07NL) Stand & Footrest Diagram

← All diagrams

Find the part on the Stand & Footrest diagram for your 2022 Yamaha MT07 (MT07NL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

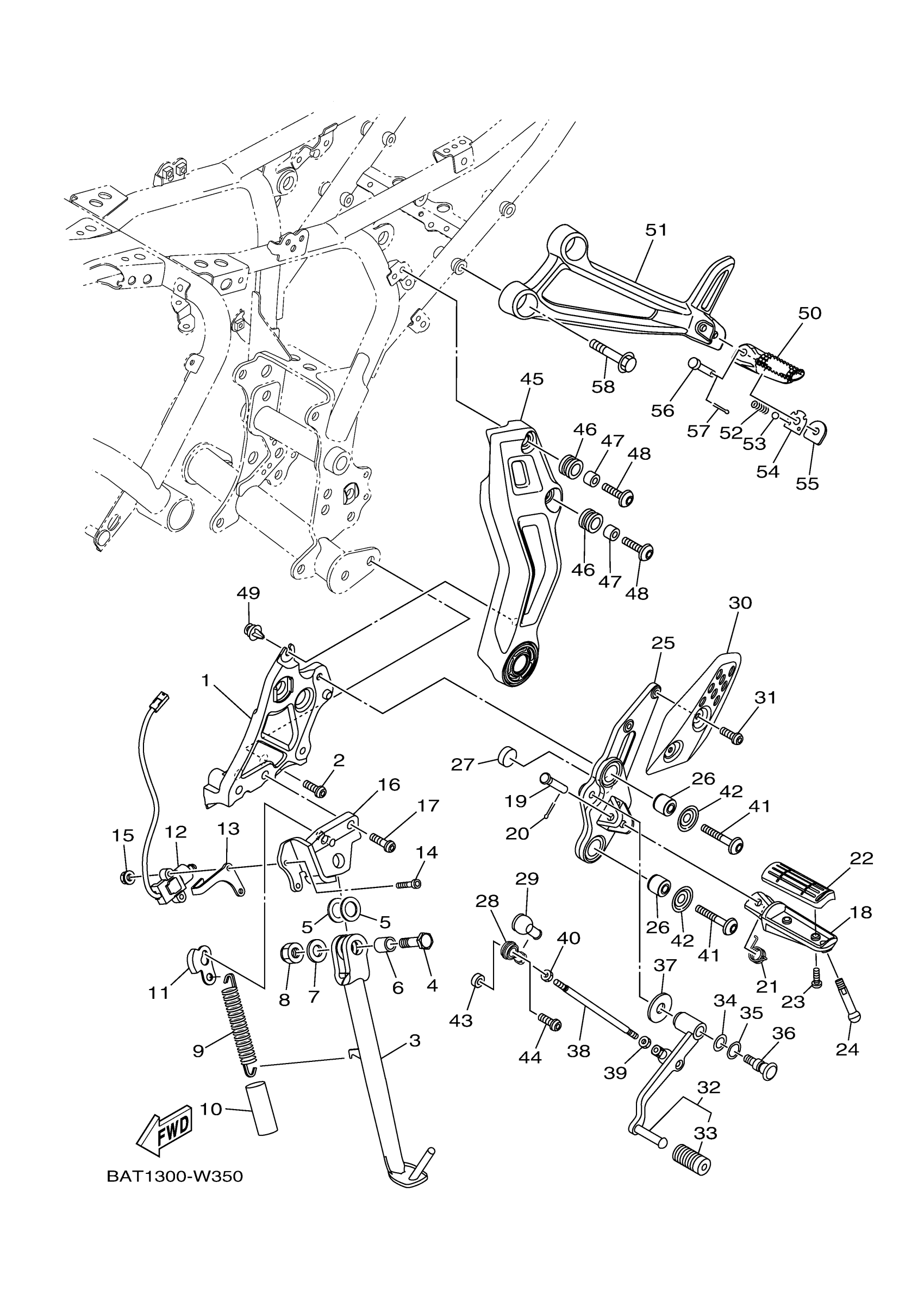

2022 Yamaha MT07 (MT07NL) Stand & Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ADAPTER 1

B34-274A3-01-00

1
Out of stock

2

BOLT

90111-10006-00

1
Out of stock

3

STAND, SIDE

BAT-27311-00-00

1
Out of stock

4

BOLT

90101-10025-00

1
Out of stock

5

WASHER, PLATE

90201-17018-00

—
Out of stock

6

COLLAR

90387-10050-00

—
Out of stock

7

WASHER, PLATE

90201-10035-00

1
Out of stock

8

NUT, SELF-LOCKING

90185-10023-00

—
Out of stock

9

SPRING, TENSION

90506-23018-00

1
Out of stock

10

GUIDE, SIDE STAND

5VX-27351-00-00

1
Out of stock

11

LINK, SIDE STAND

5VX-27315-00-00

1
Out of stock

12

SWITCH, SIDE STAND

1WS-82566-01-00

1
Out of stock

13

HOLDER

1WS-2419A-00-00

—
Out of stock

14

BOLT, HEXAGON SOCK

90110-05071-00

1
Out of stock

15

NUT, S/L FLANGE

95607-05200-00

1
Out of stock

16

BRACKET, SIDE STAN

1WS-27321-00-00

—
Out of stock

17

BOLT,HEX. SOCKET BUTTON

90111-10059-00

—
Out of stock

18

FOOTREST

1WS-27451-00-00

—
Out of stock

19

PIN, CLEVIS

91702-08040-00

—
Out of stock

20

PIN, COTTER

91490-25020-00

—
Out of stock

21

SPRING, TORSION

90508-18056-00

—
Out of stock

22

COVER, FOOTREST

3YX-27413-00-00

—
Out of stock

23

SCREW, PAN HEAD(3YL)

98580-05014-00

1
Out of stock

24

BOLT

90109-08225-00

—
Out of stock

25

BRACKET 2

1WS-27442-10-00

—
Out of stock

26

DAMPER, FOOTREST

36Y-27414-00-00

—
Out of stock

27

STOPPER, MAIN STAND

5VX-27114-00-00

—
Out of stock

28

JOINT, ROD 1

5VX-18116-00-00

—
Out of stock

29

COVER, DUST

5VX-18154-00-00

—
Out of stock

30

PLATE 1

1WS-27445-10-00

—
Out of stock

31

BOLT, BUTTON HEAD(3JP)

92014-06012-00

—
Out of stock

32

SHIFT PEDAL ASSY

BAT-18110-00-00

—
Out of stock

33

COVER, SHIFT PEDAL

1WS-18113-00-00

—
Out of stock

34

WASHER, PLATE

90201-12051-00

—
Out of stock

35

WASHER, WAVE (17W)

90206-12074-00

—
Out of stock

36

BOLT

4BP-27434-11-00

—
Out of stock

37

WASHER, PLATE

90201-08053-00

—
Out of stock

38

ROD, SHIFT

5A8-18115-00-00

—
Out of stock

39

NUT

90170-06026-00

—
Out of stock

40

Nut

95314-06700-00

—
Out of stock

41

BOLT, HEXAGON SOCKET HEAD(38V)

90110-08071-00

—
Out of stock

42

WASHER(1UF)

90209-08295-00

—
Out of stock

43

COLLAR

90387-06106-00

—
Out of stock

44

BOLT, BUTTON HEAD

92012-06020-00

—
Out of stock

45

COVER 1

BAT-27453-00-00

—
Out of stock

46

GROMMET

90480-14003-00

—
Out of stock

47

COLLAR

90387-06057-00

—
Out of stock

48

SCREW(4DN)

90149-06302-00

—
Out of stock

49

RIVET

90269-08008-00

—
Out of stock

50

FOOTREST, REAR 1

B7N-27431-00-00

—
Out of stock

51

BRACKET 4

1WS-2741L-02-00

—
Out of stock

52

SPRING, COMPRESSION (22N)

90501-12743-00

—
Out of stock

53

BALL

93501-04011-00

—
Out of stock

54

WASHER, SPECIAL

5VX-27437-00-00

—
Out of stock

55

WASHER, SPECIAL

BAT-27437-00-00

—
Out of stock

56

PIN, CLEVIS

91702-08040-00

—
Out of stock

57

PIN, COTTER

91490-25020-00

—
Out of stock

58

BOLT, HEXAGON SOCKET HEAD(4KG)

90110-08231-00

—
Out of stock
