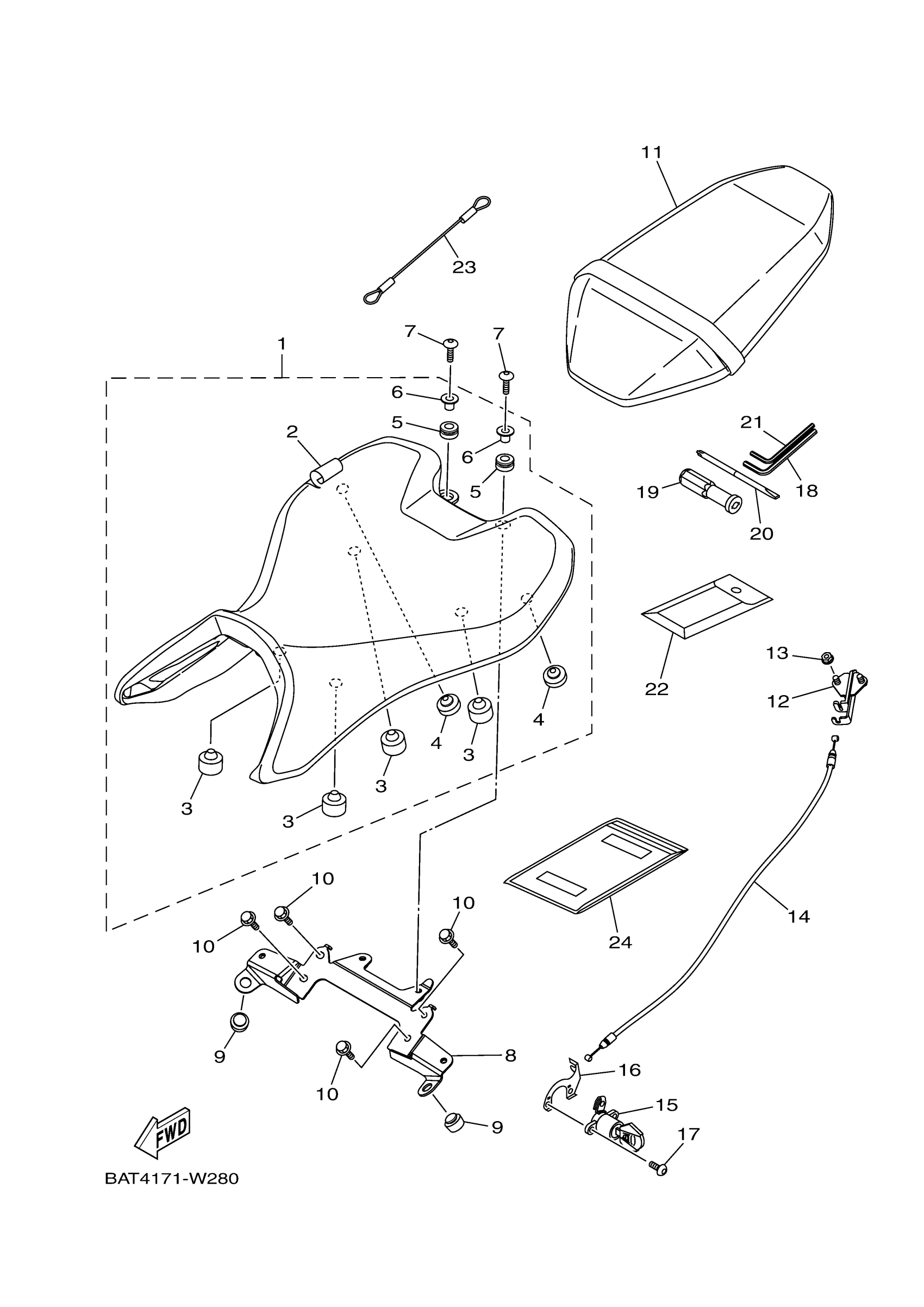

Yamaha MT07NL (MT07) BATE 2022 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

B4C-24710-01-00

$137.88

2

SEAT COVER COMP.

B4C-2470F-01-00

$65.53

3

STOPPER, MAIN STAND

371-27114-00-00

$5.42

4

PAD, SEAT

22W-24741-00-00

$7.20

5

GROMMET(4TX)

90480-14604-00

$6.93

6

COLLAR 437216330000

90387-07391-00

Unavailable

7

BOLT,HEX. SOCKET BUTTON

90111-06139-00

$2.44

8

BRACKET

BAT-21131-00-00

$41.17

9

STOPPER, MAIN STAND

157-27114-00-00

$8.08

10

BLOT, FLANGE DEEP RECESS

95D32-06010-00

$0.58

11

TANDEM SEAT ASSY

BAT-24750-01-00

$128.95

12

SEAT LOCK ASSY

1WS-24780-00-00

Unavailable

13

NUT, FLANGE

95702-06500-00

$1.95

14

CABLE, SEAT LOCK

BAT-2478E-00-00

$6.79

15

SEAT LOCK ASSY

3CK-W2470-00-00

$69.49

16

STAY, LOCK

23P-2117K-01-00

Unavailable

17

SCREW

90149-06030-00

Unavailable

18

WRENCH, HEXAGON 8

14B-28164-00-00

Unavailable

19

GRIP, DRIVER

2H7-28151-00-00

Unavailable

20

DRIVER

137-28152-00-00

Unavailable

21

WRENCH, HEXAGON 8

23P-28164-00-00

Unavailable

22

TOOL KIT

BAT-28100-00-00

Unavailable

23

HANGER, HELMET

2S3-21398-00-00

Unavailable

24

POUCH

4KG-28186-11-00

Unavailable
