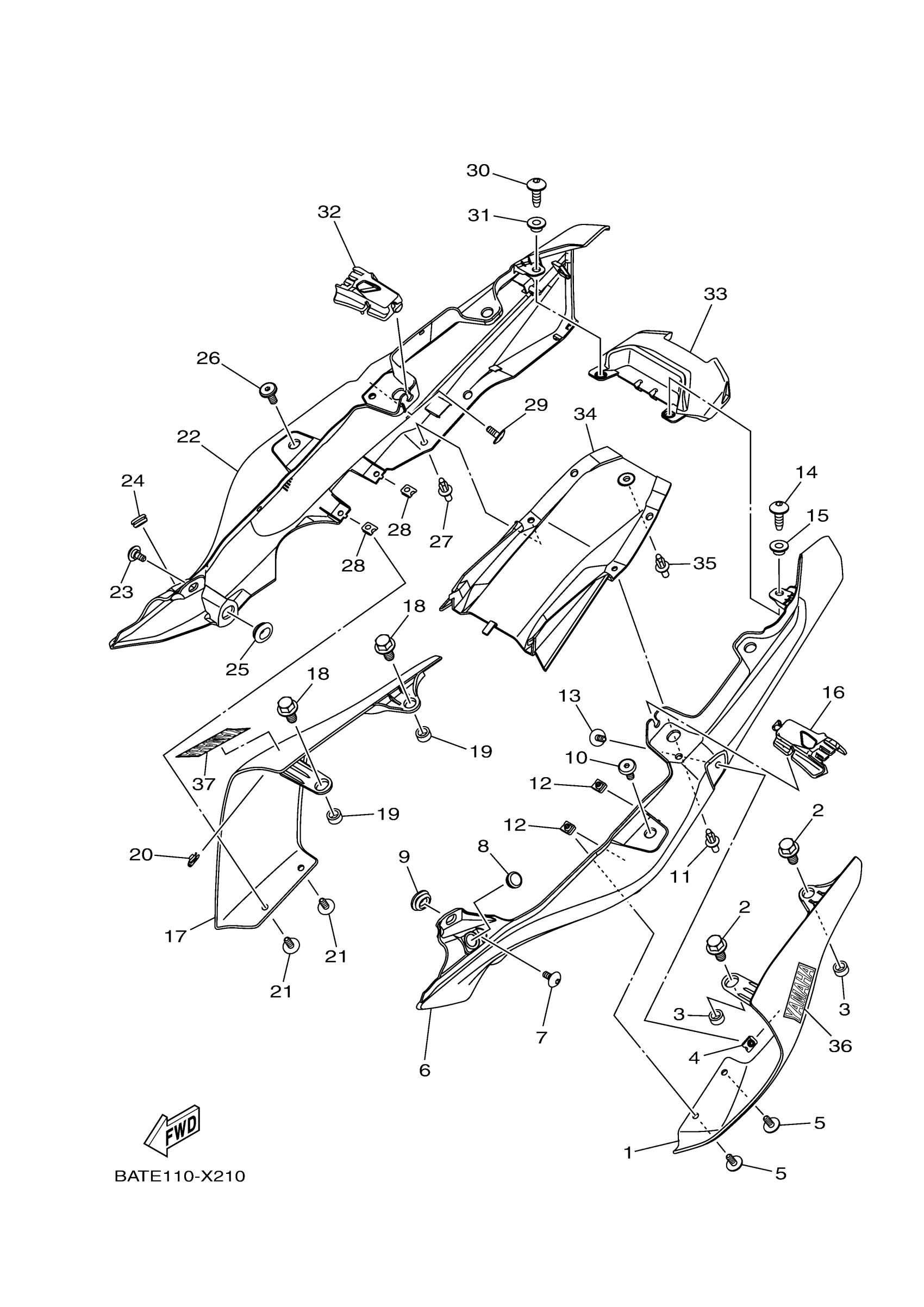

Yamaha MT07NL (MT07) BATE 2022 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

BAT-21711-00-P1

$68.99

2

BOLT, WASHER BASED

90105-08021-00

$8.49

3

COLLAR

90387-08126-00

$3.35

4

NUT, SPRING

90183-050A6-00

$8.49

5

BOLT

90111-05003-00

$8.49

6

COVER, SIDE 5

B4C-2171E-00-00

$68.99

7

BOLT

90111-05011-00

$5.60

8

GROMMET 285216390000

90480-14100-00

$8.49

9

GROMMET(4BH)

90480-01559-00

$5.60

10

BOLT

90109-06259-00

$3.28

11

RIVET

90269-06008-00

$9.49

12

NUT, SPRING

90183-050A6-00

$8.49

13

BOLT

90111-05003-00

$8.49

14

SCREW, TAPPING(4TX)

90167-05076-00

$2.39

15

COLLAR

90387-05021-00

$8.49

16

MOLE, SIDE COVER 1

B4C-2171L-00-00

Unavailable

17

COVER, SIDE 2

BAT-21721-00-P1

Unavailable

18

BOLT, WASHER BASED

90105-08021-00

$8.49

19

COLLAR

90387-08126-00

$3.35

20

NUT, SPRING

90183-050A6-00

$8.49

21

BOLT

90111-05003-00

$8.49

22

COVER, SIDE 6

B4C-2171X-00-00

Unavailable

23

BOLT

90111-05011-00

$5.60

24

GROMMET 285216390000

90480-14100-00

$8.49

25

GROMMET(4BH)

90480-01559-00

$5.60

26

BOLT

90109-06259-00

$3.28

27

RIVET

90269-06008-00

$9.49

28

NUT, SPRING

90183-050A6-00

$8.49

29

BOLT

90111-05003-00

$8.49

30

SCREW, TAPPING(4TX)

90167-05076-00

$2.39

31

COLLAR

90387-05021-00

$8.49

32

MOLE, SIDE COVER 2

B4C-2171M-00-00

Unavailable

33

COVER, TAILLIGHT

B4C-2172X-00-00

Unavailable

34

COVER, REAR FENDER

BAT-21651-00-00

Unavailable

35

RIVET

90269-06008-00

$9.49

36

EMBLEM, YAMAHA

4B5-2153E-61-00

Unavailable

37

EMBLEM, YAMAHA

4B5-2153E-61-00

Unavailable
