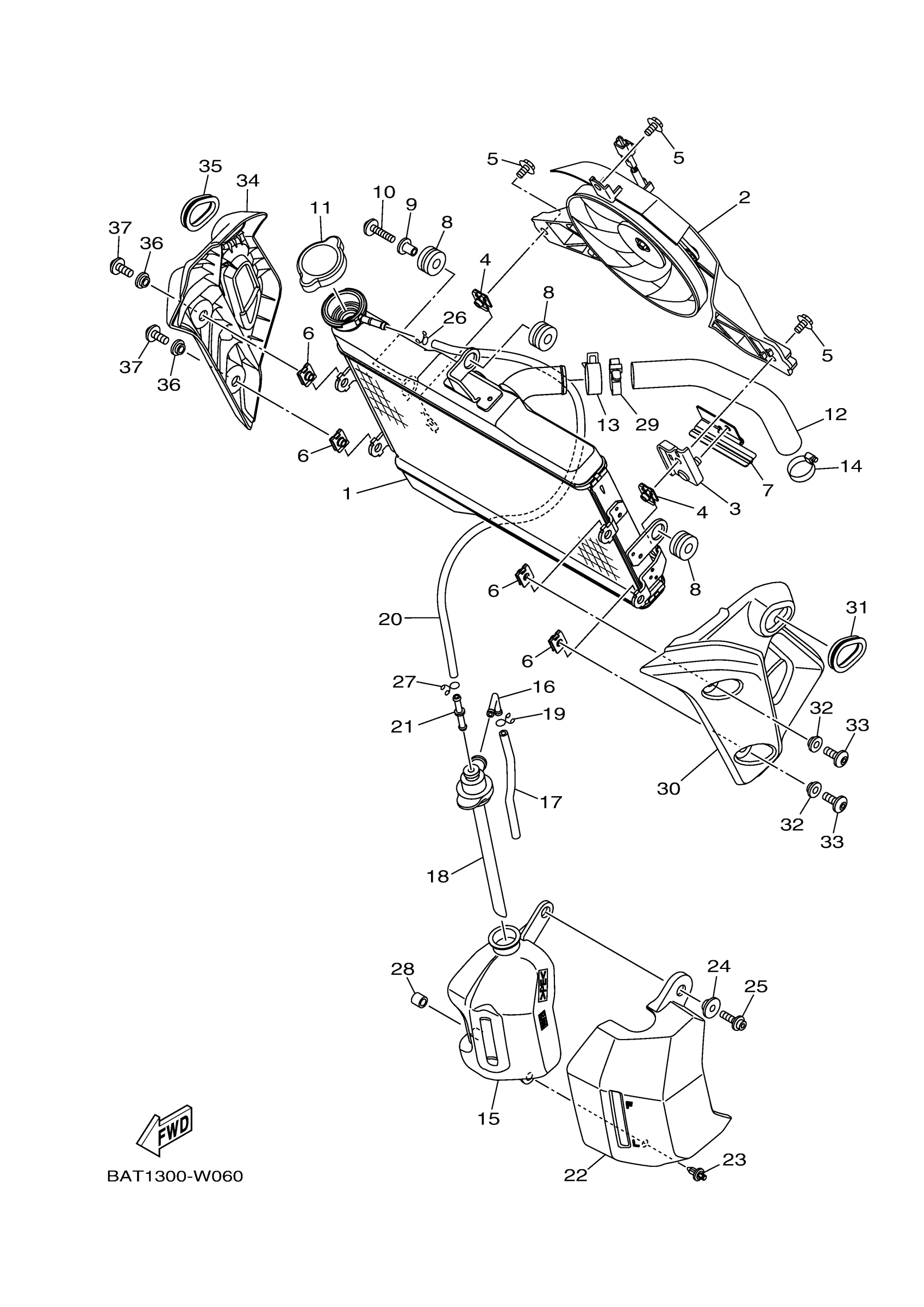

Yamaha MT07NL (MT07) BATE 2022 RADIATOR & HOSE Diagram

#

Description
Price

1

RADIATOR COMP

B4T-12461-00-00

$253.99

2

BLOWER ASSY

BW3-12405-00-00

Unavailable

3

BRACKET, HORN

BW3-21343-00-00

Unavailable

4

NUT 1

1WS-12671-00-00

$3.22

5

BOLT, BLOWER HOLDING

2S3-12675-00-00

$6.99

6

NUT 1

1WS-12671-00-00

$3.22

7

STAY, HORN

BAT-83378-00-00

$5.60

8

GROMMET (29L)

90480-15363-00

$8.49

9

COLLAR 437216330000

90387-07391-00

Unavailable

10

BOLT,HEX. SOCKET BUTTON

90111-06156-00

$1.16

11

CAP, RADIATOR

5SL-12462-01-00

$29.99

12

HOSE 3

1WS-12578-00-00

$35.99

13

CLIP

90467-290A0-00

Unavailable

14

HOSE CLAMP ASSY

90450-35001-00

$5.60

15

TANK, RECOVERY

1WS-21871-01-00

$30.99

16

ELBOW

26H-21828-00-00

Unavailable

17

HOSE

90445-08035-00

Unavailable

18

CAP

3P6-21875-00-00

Unavailable

19

CLIP (16G)

90467-08021-00

Unavailable

20

PIPE 1

1WS-21816-00-00

Unavailable

21

JOINT

4XY-14568-00-00

Unavailable

22

COVER

1WS-2172W-00-00

Unavailable

23

RIVET

90269-06008-00

Unavailable

24

COLLAR (838-84757-00)

90387-06024-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

26

CLIP (16G)

90467-08021-00

Unavailable

27

CLIP 101235600

90467-08003-00

Unavailable

28

HOSE

90445-10064-00

Unavailable

29

CLAMP(6U0)

90464-07M40-00

Unavailable

30

COVER, SIDE 3

BAT-21731-00-00

Unavailable

31

DAMPER, FLASHER 1

B7N-83321-00-00

Unavailable

32

COLLAR

90387-06130-00

Unavailable

33

BOLT,HEX. SOCKET BUTTON

90111-06151-00

Unavailable

34

COVER, SIDE 4

BAT-21741-00-00

Unavailable

35

DAMPER, FLASHER 1

B7N-83321-00-00

Unavailable

36

COLLAR

90387-06130-00

Unavailable

37

BOLT,HEX. SOCKET BUTTON

90111-06151-00

Unavailable
