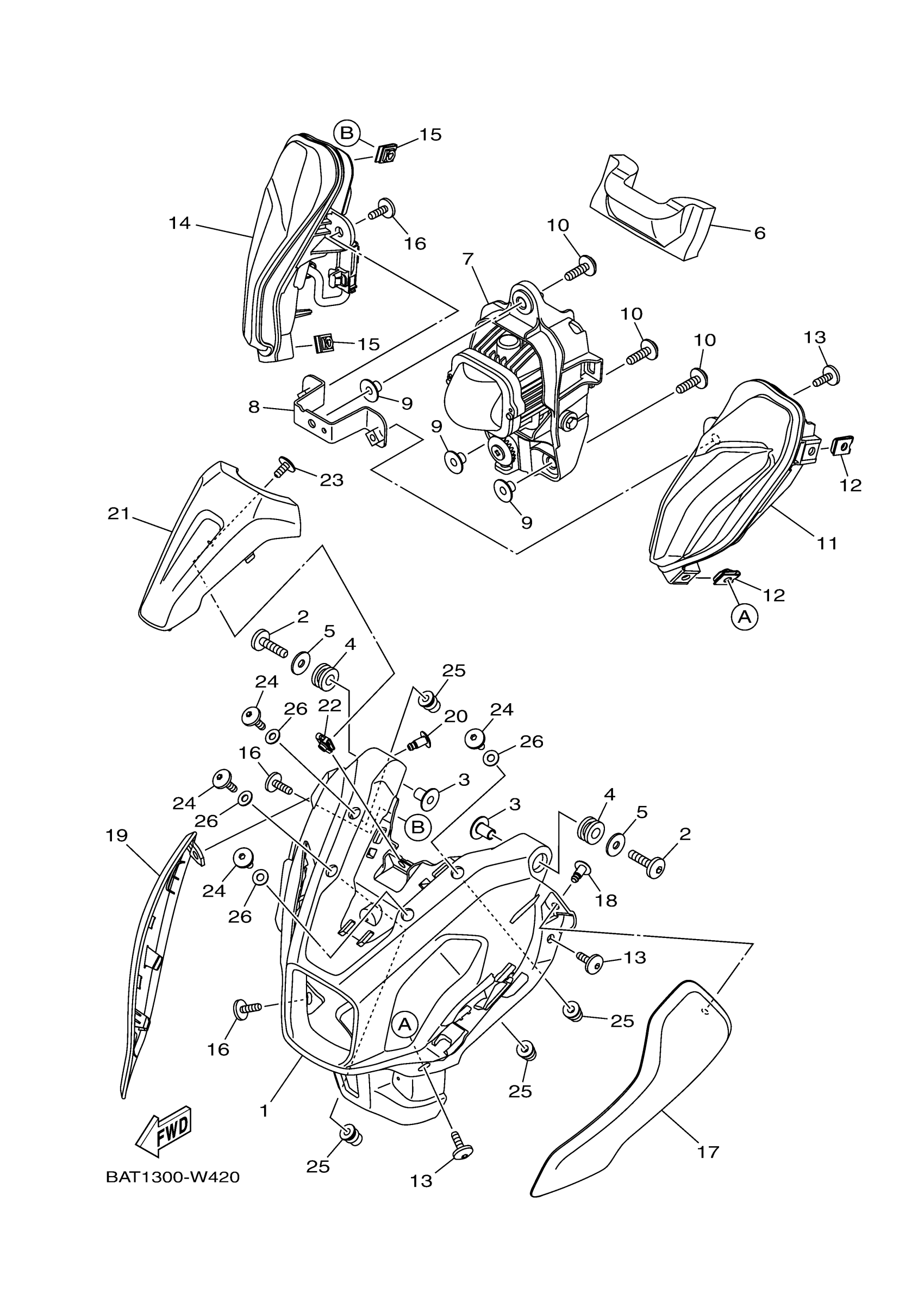

Yamaha MT07NL (MT07) BATE 2022 HEADLIGHT Diagram

#

Description
Price

1

COVER, HEADLIGHT

BAT-2838E-00-00

$46.99

2

BOLT,HEX. SOCKET BUTTON

90111-06172-00

$2.97

3

COLLAR

90387-06301-00

$4.35

4

GROMMET

90480-12015-00

$2.17

5

WASHER, PLATE

90201-06029-00

$5.60

6

DAMPER, PLATE

90520-20017-00

$7.49

7

HEADLIGHT ASSY

BAT-84300-00-00

$500.99

8

BRACKET

BAT-84703-00-00

$9.49

9

COLLAR

90387-06354-00

$4.41

10

BOLT, WITH WASHER

90119-06177-00

$8.49

11

PILOT LIGHT ASSY 1

BAT-84301-00-00

$240.99

12

NUT, SPRING

90183-051A4-00

Unavailable

13

BOLT,HEX. SOCKET B

90111-05060-00

$3.23

14

PILOT LIGHT ASSY 2

BAT-84302-00-00

Unavailable

15

NUT, SPRING

90183-051A4-00

Unavailable

16

BOLT,HEX. SOCKET B

90111-05060-00

$3.23

17

COVER, HEADLIGHT 1

BAT-2838D-00-P1

Unavailable

18

RIVET

90269-06019-00

Unavailable

19

COVER, HEADLIGHT 2

BAT-2838S-00-P1

Unavailable

20

RIVET

90269-06019-00

Unavailable

21

COVER 1

BAT-84369-00-00

Unavailable

22

NUT, SPRING

90183-050A6-00

Unavailable

23

BOLT

90111-05003-00

Unavailable

24

BOLT,HEX. SOCKET B

90111-05060-00

$3.23

25

NUT(1KT)

90179-05523-00

Unavailable

26

WASHER, PLAIN LARGE

92907-05200-00

Unavailable
