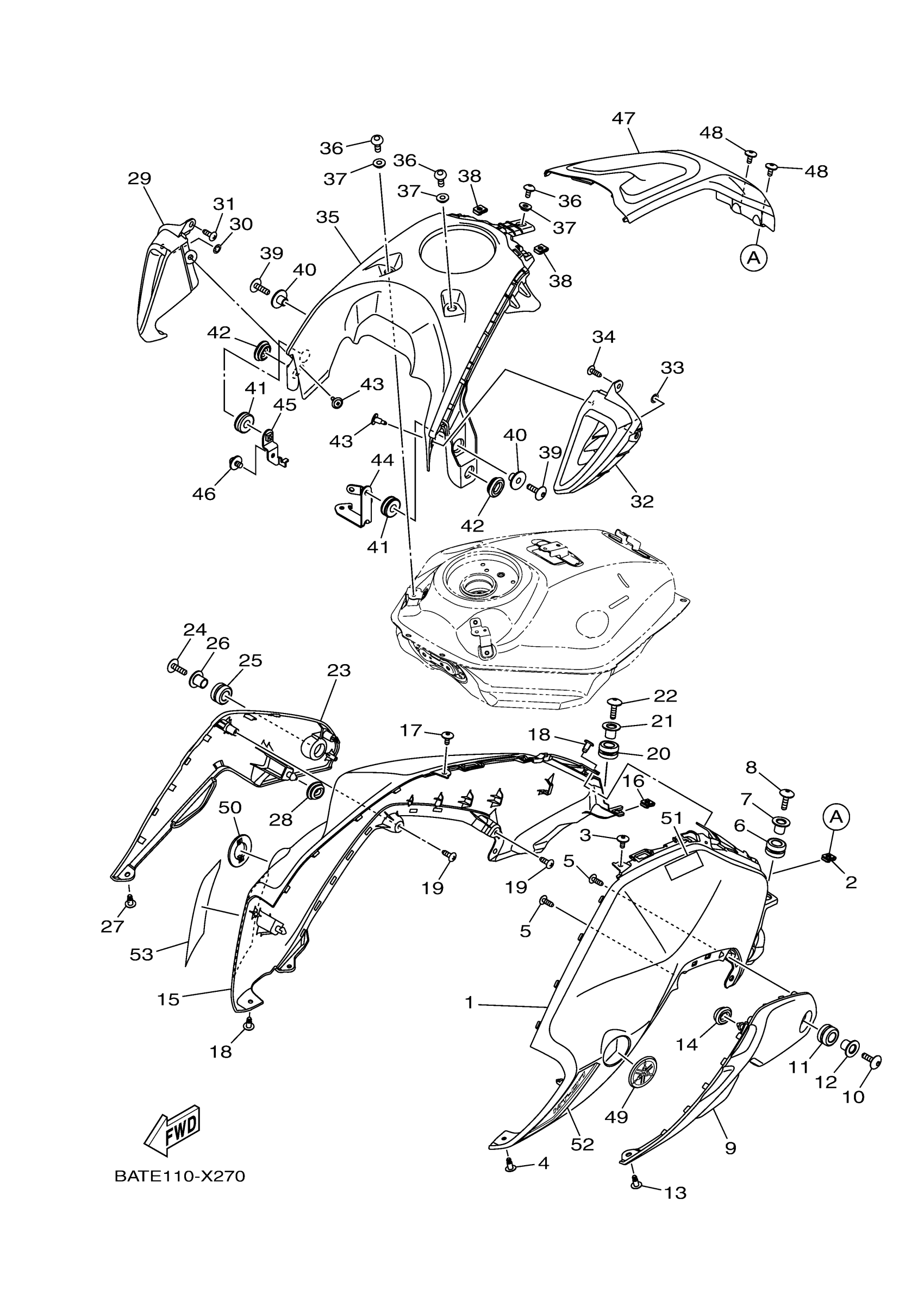

Yamaha MT07NL (MT07) BATE 2022 FUEL TANK 2 Diagram

#

Description
Price

1

COVER, SIDE 1

BAT-24129-00-P1

$91.99

2

NUT, SPRING

90183-050A6-00

$8.49

3

BOLT

90111-05003-00

$8.49

4

RIVET

90269-06019-00

$3.18

5

SCREW, ROUND TAPPING

90160-05012-00

$7.49

6

GROMMET

90480-17007-00

Unavailable

7

COLLAR

90387-10107-00

$5.60

8

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

9

SEAT, KNEE GRIP 1

BAT-24121-00-00

$23.99

10

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

11

GROMMET

90480-17007-00

Unavailable

12

COLLAR

90387-10107-00

$5.60

13

RIVET

90269-06019-00

$3.18

14

GROMMET(4DN)

90480-01558-00

$4.19

15

COVER, SIDE 2

BAT-24139-00-P1

$93.99

16

NUT, SPRING

90183-050A6-00

$8.49

17

BOLT

90111-05003-00

$8.49

18

RIVET

90269-06019-00

$3.18

19

SCREW, ROUND TAPPING

90160-05012-00

$7.49

20

GROMMET

90480-17007-00

Unavailable

21

COLLAR

90387-10107-00

$5.60

22

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

23

SEAT, KNEE GRIP 2

BAT-24122-00-00

Unavailable

24

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

25

GROMMET

90480-17007-00

Unavailable

26

COLLAR

90387-10107-00

$5.60

27

RIVET

90269-06019-00

$3.18

28

GROMMET(4DN)

90480-01558-00

$4.19

29

SCOOP, AIR 2

BAT-2137X-00-00

Unavailable

30

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

31

SCREW, ROUND TAPPING

90160-05012-00

$7.49

32

SCOOP, AIR 1

BAT-2137W-00-00

Unavailable

33

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

34

SCREW, ROUND TAPPING

90160-05012-00

$7.49

35

COVER, CAP

BAT-2464E-00-00

Unavailable

36

BOLT

90111-05002-00

Unavailable

37

COLLAR

90387-05071-00

Unavailable

38

NUT, SPRING

90183-050A6-00

$8.49

39

BOLT,HEX. SOCKET BUTTON

90111-06084-00

Unavailable

40

COLLAR

90387-07042-00

Unavailable

41

GROMMET(2AL)

90480-14452-00

Unavailable

42

GROMMET(4BH)

90480-01559-00

Unavailable

43

RIVET

90269-06081-00

Unavailable

44

BRACKET, CAP

BAT-2463E-00-00

Unavailable

45

BRACKET, SEAT

BAT-2412F-00-00

Unavailable

46

BOLT,HEX. SOCKET BUTTON

90111-06122-00

Unavailable

47

COVER, TOP

BAT-2171A-00-00

Unavailable

48

BOLT

90111-05003-00

$8.49

49

EMBLEM

1RC-2413B-02-00

Unavailable

50

EMBLEM

1RC-2413B-02-00

Unavailable

51

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable

52

GRAPHIC, 1

BAT-217F1-50-00

Unavailable

53

GRAPHIC, 2

BAT-217F2-50-00

Unavailable
