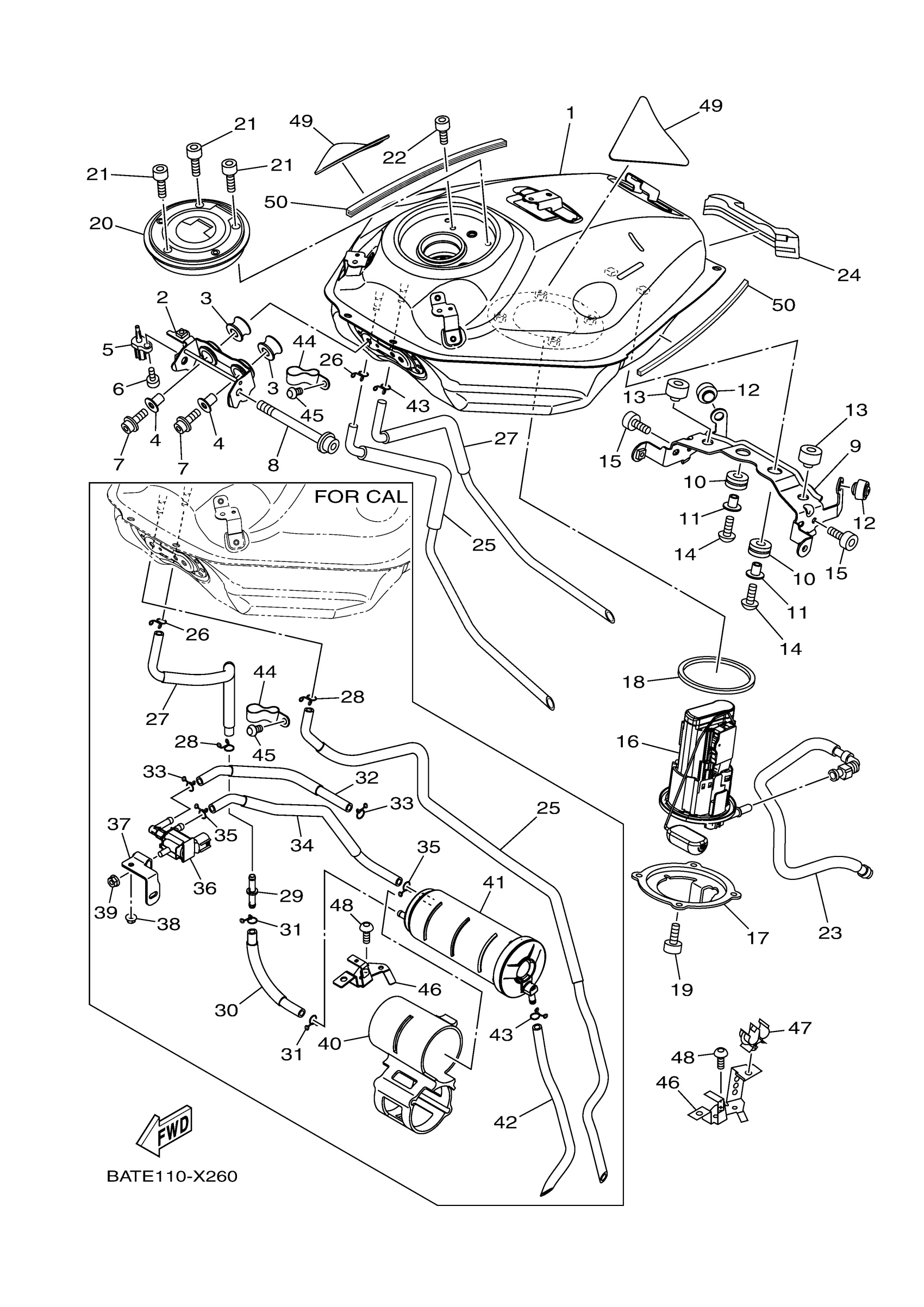

Yamaha MT07NL (MT07) BATE 2022 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BAT-24110-00-00

Unavailable

2

BRACKET, TANK FITT

BAT-2412Y-00-00

Unavailable

3

GROMMET

3D7-24339-00-00

$4.63

4

COLLAR

90387-06136-00

$7.49

5

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

$34.99

6

SCREW, PAN

98517-05012-00

$4.73

7

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$9.49

8

BOLT, FLANGE

95817-08100-00

$5.60

9

BRACKET, TANK FITT

BAT-2413Y-00-00

Unavailable

10

GROMMET

90480-16003-00

Unavailable

11

COLLAR

90387-06287-00

Unavailable

12

STOPPER, MAIN STAND

5UY-27114-00-00

$2.18

13

STOPPER MAIN STAND

278-27114-00-00

$8.99

14

BOLT,HEX. SOCKET BUTTON

90111-06084-00

$5.60

15

BOLT,SOCKET

91317-06012-00

$8.49

16

FUEL PUMP COMP.

1WS-13907-10-00

Unavailable

17

BRACKET, FUEL PUMP

1WS-24491-01-00

Unavailable

18

O-RING

1RC-24486-00-00

Unavailable

19

BOLT

91312-05010-00

Unavailable

20

CAP ASSY

39P-24602-00-00

Unavailable

21

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

Unavailable

22

BOLT, SOCKET

91317-05010-00

Unavailable

23

PIPE, FUEL 1

1WS-13971-01-00

Unavailable

24

DAMPER, SIDE COVER

B4C-2411J-00-00

Unavailable

25

PIPE, OVERFLOW

1WS-24318-00-00

Unavailable

26

CLIP

90467-090A2-00

Unavailable

27

PIPE 2

1WS-24312-10-00

Unavailable

43

CLIP

90467-090A2-00

Unavailable

44

CLAMP 1

1WS-24135-00-00

Unavailable

45

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

46

BRACKET, CANISTOR

1WS-2419F-00-00

Unavailable

47

CLAMP

90464-11007-00

Unavailable

48

BOLT,HEX. SOCKET BUTTON

90111-06119-00

Unavailable

49

DAMPER, PLATE 1

BAT-2414H-00-00

Unavailable

50

MOLD, FUEL TANK

3D7-24188-00-00

Unavailable
