2021 Yamaha MT07 (MT07ML) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 2021 Yamaha MT07 (MT07ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

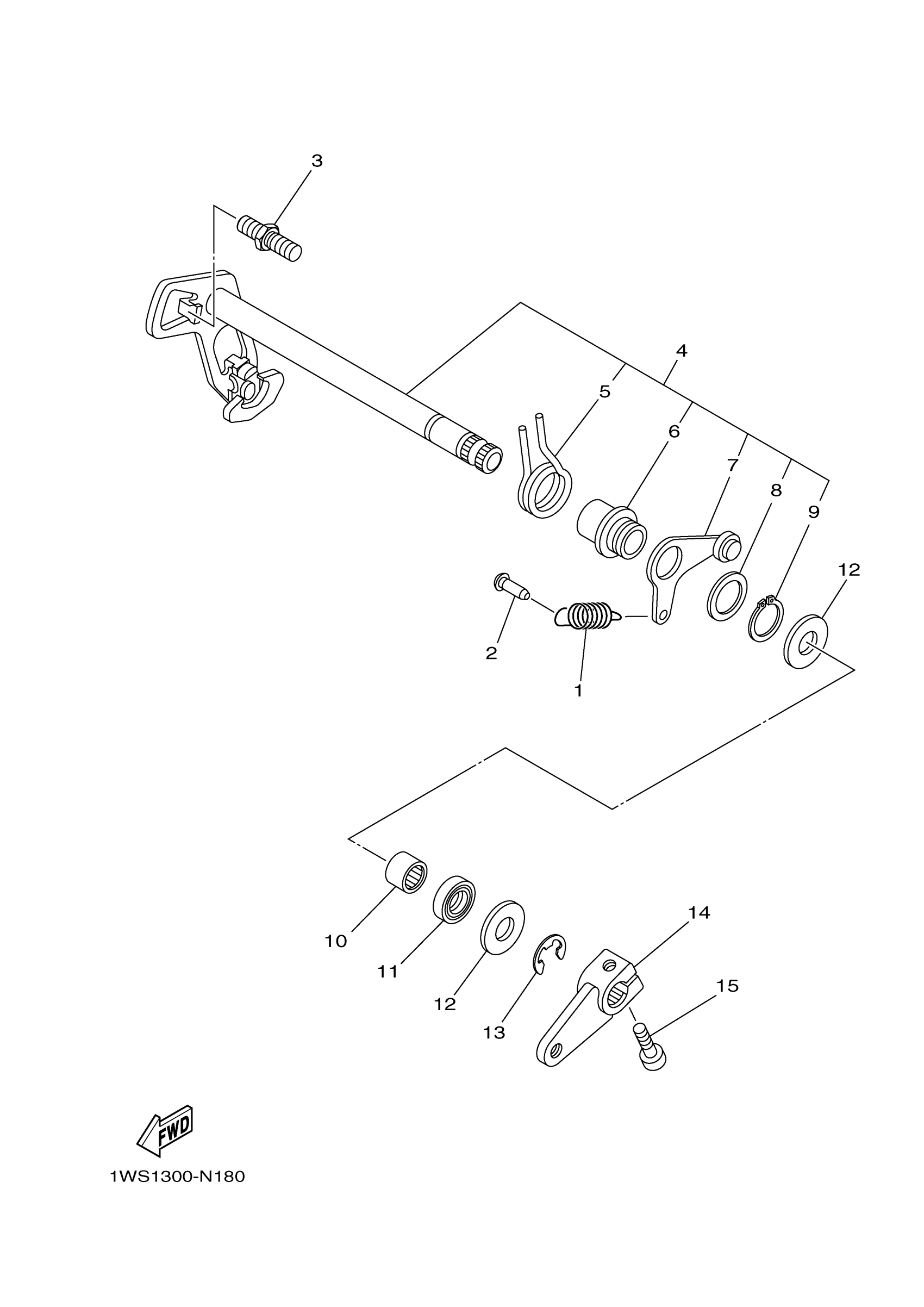

2021 Yamaha MT07 (MT07ML) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SPRING, TENSION

90506-18021-00

1

$5.48

In stock

2

HOOK, SPRING

132-16346-00-00

1
Out of stock

3

STOPPER, SCREW

5VK-18127-00-00

—

$10.89

In stock

4

SHIFT SHAFT ASSY

1WS-18101-00-00

1
Out of stock

5

SPRING, TORSION

90508-29040-00

1

$11.62

In stock

6

. SPACER

2C0-18175-00-00

1

$15.95

In stock

7

STOPPER LEVER ASSY

1WS-18140-00-00

1

$11.26

In stock

8

WASHER, PLATE (30X)

90201-177G4-00

1
Out of stock

9

CIRCLIP(1EY)

99009-17400-00

1
Out of stock

10

BEARING

93317-11295-00

1

$38.97

In stock

11

OIL SEAL (12X22X5-371)

93102-12106-00

1
Out of stock

12

WASHER, PLATE (353)

90201-12575-00

1
Out of stock

13

CIRCLIP

99002-10600-00

1

$6.28

In stock

14

ARM, SHIFT

1WS-18112-00-00

1

$33.85

In stock

15

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock
