2021 Yamaha MT07 (MT07ML) Shift CAM & Fork Diagram

← All diagrams

Find the part on the Shift CAM & Fork diagram for your 2021 Yamaha MT07 (MT07ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

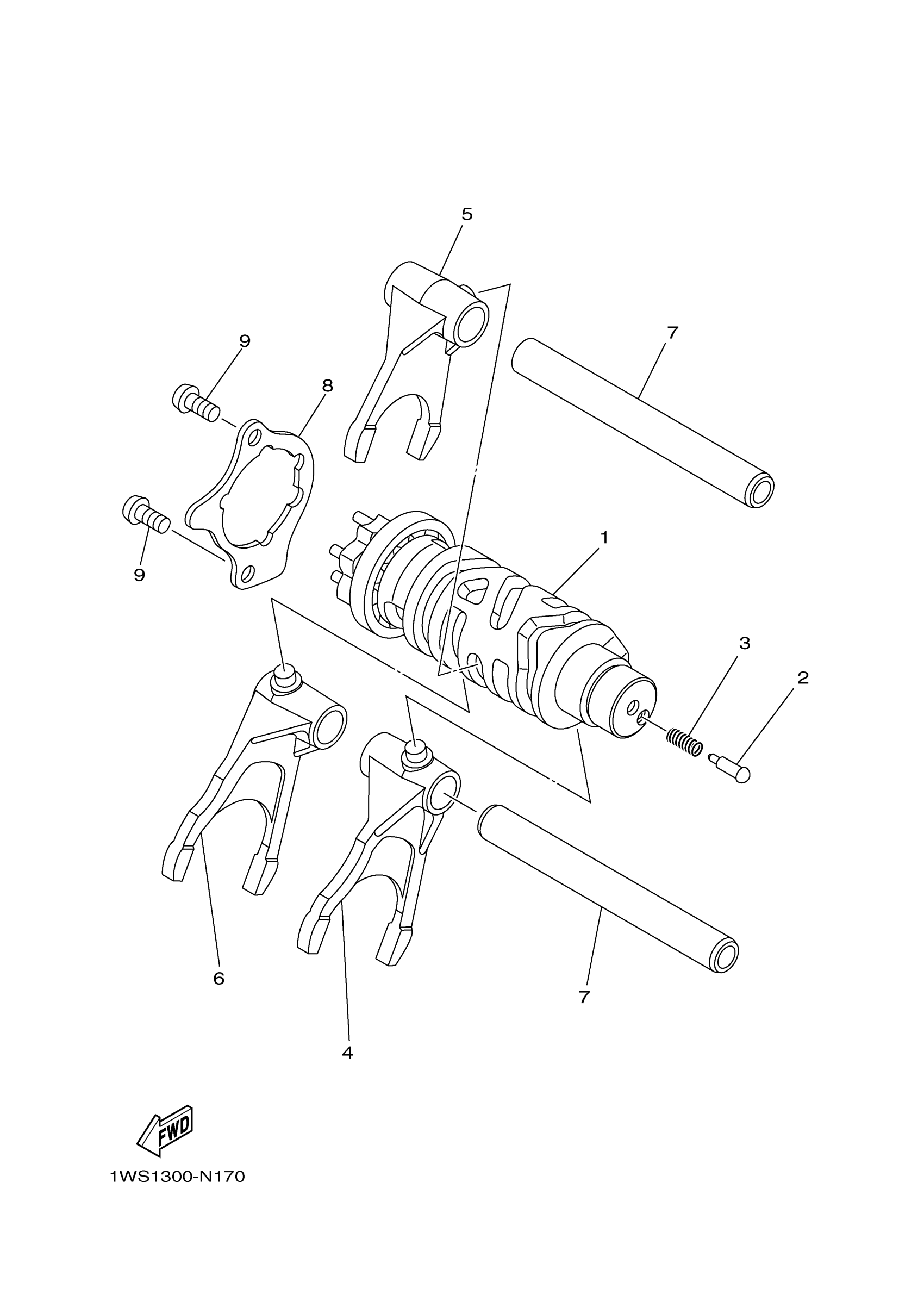

2021 Yamaha MT07 (MT07ML) Shift CAM & Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

1WS-18540-00-00

—

$127.14

In stock

2

POINT, NEUTRAL

3D7-18542-00-00

1

$6.02

In stock

3

1

$6.17

In stock

4

FORK, SHIFT 1

1WS-18511-00-00

—

$87.89

In stock

5

FORK, SHIFT 2

1WS-18512-00-00

—

$85.15

In stock

6

FORK, SHIFT 3

1WS-18513-00-00

—

$87.98

In stock

7

BAR, SHIFT FORK GUIDE 2

20S-18535-00-00

1

$35.85

In stock

8

STOPPER, SHIFT BAR

1WS-18536-00-00

—

$33.32

In stock

9

SCREW

90149-06156-00

1

$6.37

In stock
← Clutch Shift Shaft →
