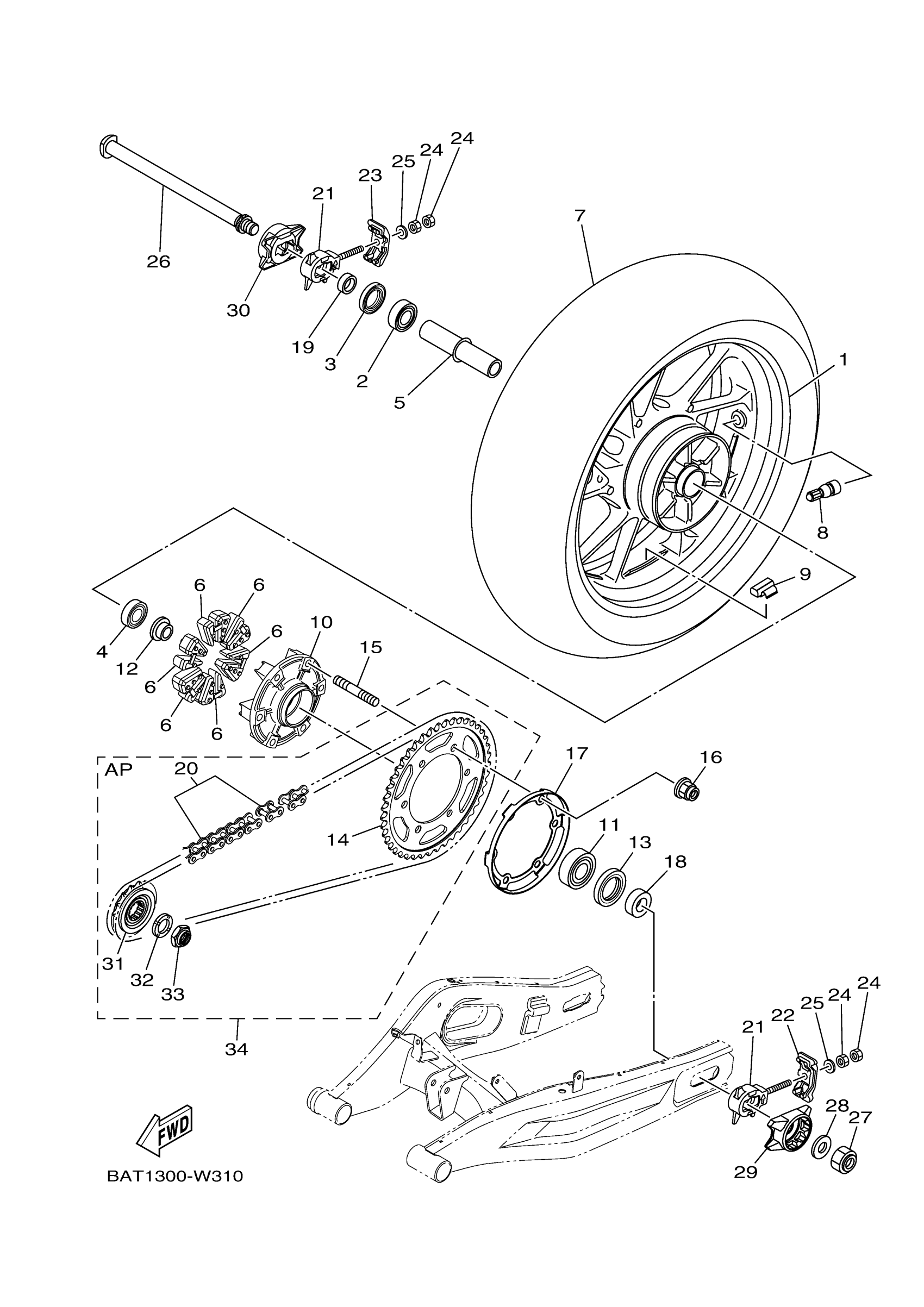

Yamaha MT07ML (MT07) BAT2 2021 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

2DR-25338-00-98

$596.99

2

BEARING

93306-20480-00

$44.99

3

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

4

BEARING(8AB)

93306-00444-00

$41.99

5

SPACER, BEARING

2PP-25317-00-00

$22.99

6

DAMPER

5SL-25364-00-00

$41.99

8

VALVE, RIM(2GH)

93900-00030-00

$16.99

9

BALANCER, WHEEL

5MT-25398-00-00

$17.49

9

BALANCER, WHEEL

5MT-25398-10-00

$17.49

9

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

10

CLUTCH, HUB

5JJ-25366-00-00

$465.99

11

BEARING

93306-205B5-00

$41.99

12

COLLAR, WHEEL

1RC-25383-00-00

$32.99

13

OIL SEAL

93106-40013-00

$14.99

14

SPROCKET, DRIVEN (

1WS-25443-00-00

$96.99

15

BOLT, STUD

90116-10048-00

Unavailable

16

NUT, S/L FLANGE

95602-10200-00

Unavailable

17

BRACKET 1

1RC-2537W-01-00

Unavailable

18

COLLAR

90387-20036-00

Unavailable

19

COLLAR

90387-20035-00

Unavailable

20

CHAIN

94582-49108-00

Unavailable

21

PULLER, CHAIN 1

1WS-25388-00-00

Unavailable

22

END 1

1WS-22174-00-00

Unavailable

23

END 1

1WS-22175-00-00

Unavailable

24

NUT

95302-08600-00

Unavailable

25

.. WASHER, PLATE

92990-08600-00

Unavailable

26

SHAFT, PIVOT

4FN-22141-00-00

Unavailable

27

NUT, SELF-LOCKING

90185-18009-00

Unavailable

28

WASHER, PLATE

90201-18021-00

Unavailable

29

COVER, REAR AXLE 1

1WS-2538D-00-00

Unavailable

30

COVER, REAR AXLE 2

1WS-2538N-00-00

Unavailable

31

SPROCKET, DRIVE (1

1WS-17460-00-00

Unavailable

32

WASHER, CONICAL SPRING

90208-22002-00

Unavailable

33

NUT

90179-22018-00

Unavailable

34

CHAIN & SPROCKET K

BAT-W001A-00-00

Unavailable
