2021 Yamaha MT07 (MT07ML) Rear Master Cylinder Diagram

← All diagrams

Find the part on the Rear Master Cylinder diagram for your 2021 Yamaha MT07 (MT07ML), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

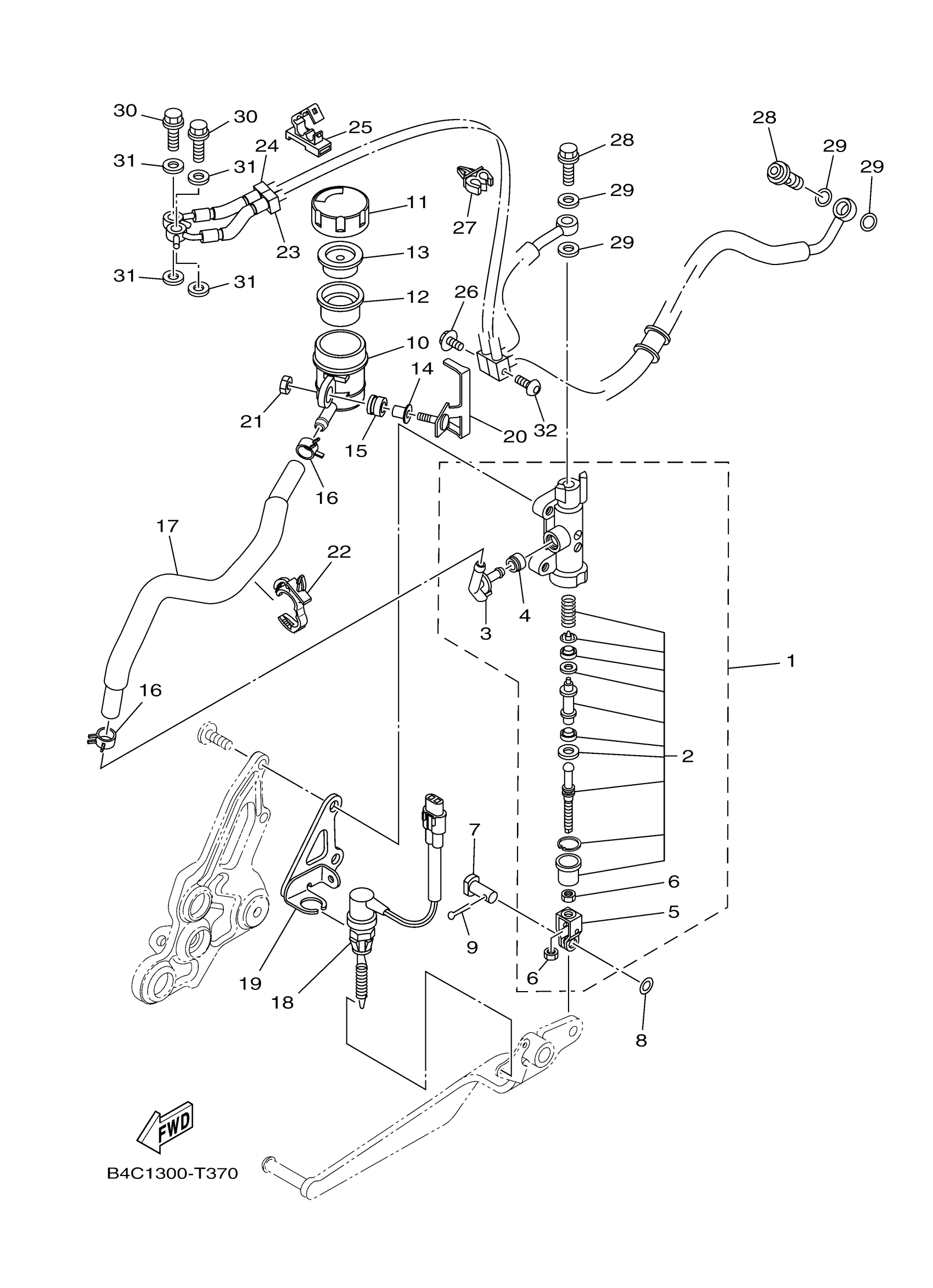

2021 Yamaha MT07 (MT07ML) Rear Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

RR. MASTER CYLINDE

4P5-2583V-01-00

1

$126.71

In stock

2

CYLINDER KIT, MASTER

5VX-W0042-51-00

1

$83.39

In stock

3

JOINT

2D1-2582A-01-00

1

$98.94

In stock

4

O-RING

4BP-2585F-01-00

—

$9.55

In stock

5

JOINT

4BP-27222-02-00

1
Out of stock

6

NUT

90170-08010-00

1

$6.31

In stock

7

PIN, CLEVIS

90240-08005-00

1
Out of stock

8

WASHER, PLATE

90201-08070-00

1

$6.23

In stock

9

PIN, COTTER (648)

91490-20015-00

1

$1.85

In stock

10

TANK, RESERVOIR

14B-25894-00-00

1

$55.43

In stock

11

CAP, RESERVOIR

2C0-25852-00-00

1

$5.74

In stock

12

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

1
Out of stock

13

BUSH,DIAPHRAGM

2VN-25855-00-00

1
Out of stock

14

COLLAR

90387-05028-00

1

$5.65

In stock

15

GROMMET

2C0-26326-00-00

1

$5.22

In stock

16

CLIP (7K7)

90467-11044-00

—
Out of stock

17

HOSE, RESERVOIR

1WS-25895-00-00

—

$19.40

In stock

18

STOP SWITCH ASSY

B2G-82530-01-00

—

$84.78

In stock

19

STAY, STOP SWITCH

B4C-2144G-00-00

—

$8.97

In stock

20

HOLDER, RESERVE TA

1WS-2582E-00-00

—

$7.08

In stock

21

NUT, FLANGE(3GM)

95707-05500-00

—

$6.18

In stock

22

CLAMP

90464-17008-00

—

$1.95

In stock

23

HOSE, BRAKE

B4C-2584D-00-00

—

$147.80

In stock

24

BRAKE HOSE ASSY 5

B4C-2584E-00-00

—

$152.98

In stock

25

CLAMP

90464-07014-00

—

$2.95

In stock

26

BOLT, FLANGE

90105-06148-00

—

$6.22

In stock

27

CLAMP

90464-07009-00

—

$1.78

In stock

28

BOLT, UNION

90401-10020-00

—

$8.29

In stock

29

GASKET

90430-10005-00

—

$7.06

In stock

30

BOLT, UNION

90401-10172-00

—

$3.72

In stock

31

GASKET

90430-10005-00

—

$7.06

In stock

32

BOLT, BUTTON HEAD

92012-06010-00

—

$2.45

In stock
