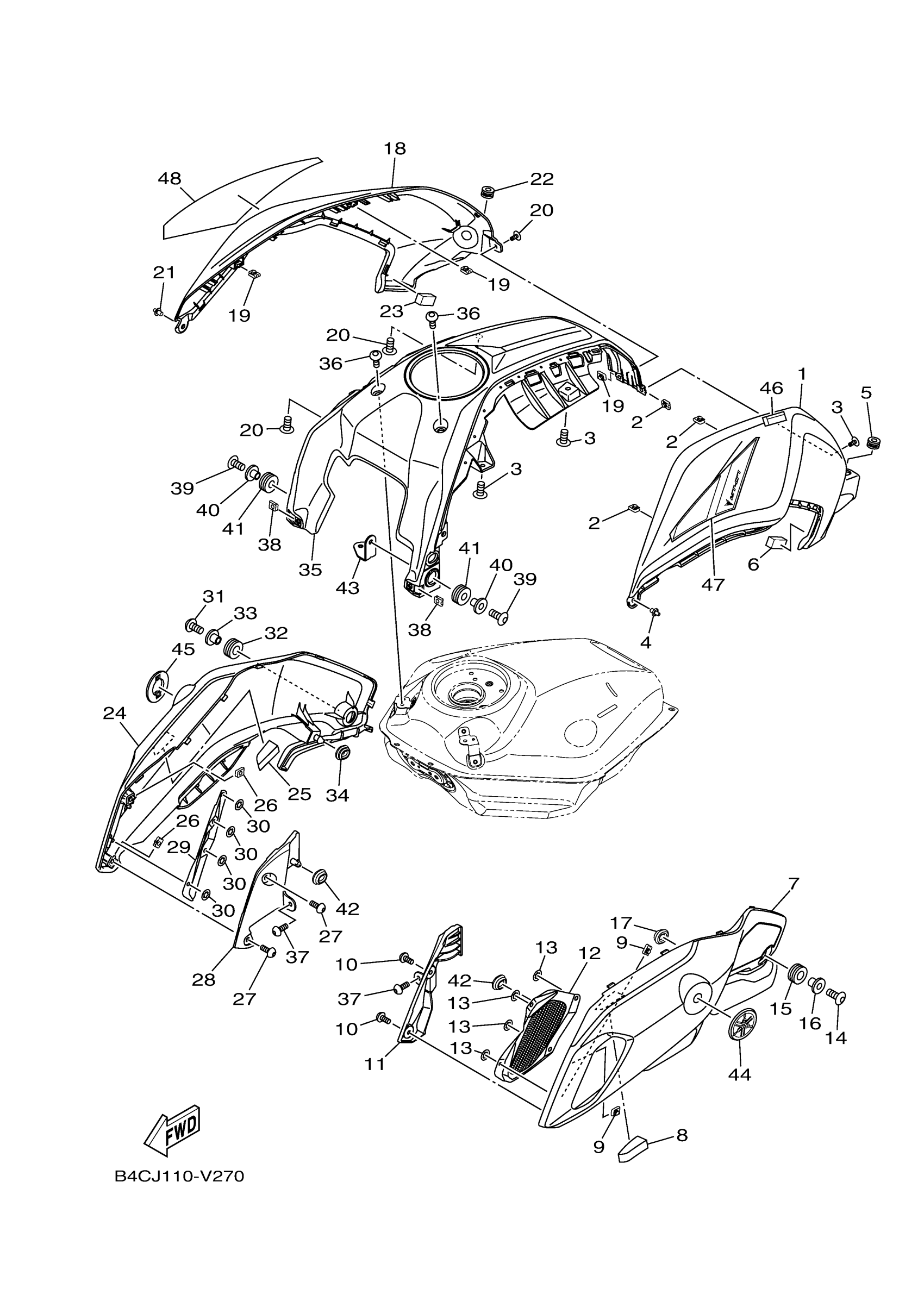

Yamaha MT07LL (MT07) B4CJ 2020 FUEL TANK 2 Diagram

#

Description
Price

1

COVER, SIDE 1

B4C-24129-00-P2

$91.99

2

NUT, SPRING

90183-050A6-00

$8.49

3

BOLT

90111-05003-00

$8.49

4

RIVET

90269-06008-00

$9.49

5

GROMMET(3AA)

90480-12497-00

Unavailable

6

DAMPER, PLATE 6

2C0-2414R-00-00

$7.99

7

SCOOP, AIR 1

B4C-2137W-01-00

$55.99

8

DAMPER, LOCATING 1

B4C-24181-00-00

$2.28

9

NUT, SPRING

90183-050A6-00

$8.49

10

BOLT

90111-05003-00

$8.49

11

PANEL, INNER 1

B4C-2836K-00-00

$9.49

12

GRILL, AIR INTAKE 1

B4C-2837N-00-00

$44.99

13

NUT, SPRING (6E5)

90183-05M02-00

$0.33

14

BOLT

90109-06317-00

$3.35

15

GROMMET

90480-17007-00

Unavailable

16

COLLAR

90387-10107-00

Unavailable

17

GROMMET(4DN)

90480-01558-00

Unavailable

18

COVER, SIDE 2

B4C-24139-00-P2

Unavailable

19

NUT, SPRING

90183-050A6-00

$8.49

20

BOLT

90111-05003-00

$8.49

21

RIVET

90269-06008-00

$9.49

22

GROMMET(3AA)

90480-12497-00

Unavailable

23

DAMPER, PLATE 6

2C0-2414R-00-00

$7.99

24

SCOOP, AIR 2

B4C-2137X-01-00

Unavailable

25

DAMPER, LOCATING 2

B4C-24182-00-00

Unavailable

26

NUT, SPRING

90183-050A6-00

$8.49

27

BOLT

90111-05003-00

$8.49

28

PANEL, INNER 2

B4C-2836L-00-00

Unavailable

29

GRILL, AIR INTAKE 2

B4C-2837R-00-00

Unavailable

30

NUT, SPRING (6E5)

90183-05M02-00

$0.33

31

BOLT

90109-06317-00

$3.35

32

GROMMET

90480-17007-00

Unavailable

33

COLLAR

90387-10107-00

Unavailable

34

GROMMET(4DN)

90480-01558-00

Unavailable

35

COVER, CAP

B4C-2464E-00-00

Unavailable

36

BOLT

90111-05011-00

Unavailable

37

BOLT

90111-05002-00

Unavailable

38

NUT, SPRING

90183-050A6-00

$8.49

39

BOLT,HEX. SOCKET BUTTON

90111-06084-00

Unavailable

40

COLLAR

90387-07042-00

Unavailable

41

GROMMET(2AL)

90480-14452-00

Unavailable

42

GROMMET(4BH)

90480-01559-00

Unavailable

43

BRACKET, CAP

1WS-2463E-00-00

Unavailable

44

EMBLEM

1RC-2413B-02-00

Unavailable

45

EMBLEM

1RC-2413B-02-00

Unavailable

46

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable

47

GRAPHIC 1

B4C-217F1-21-00

Unavailable

48

GRAPHIC, 2

B4C-217F2-21-00

Unavailable
