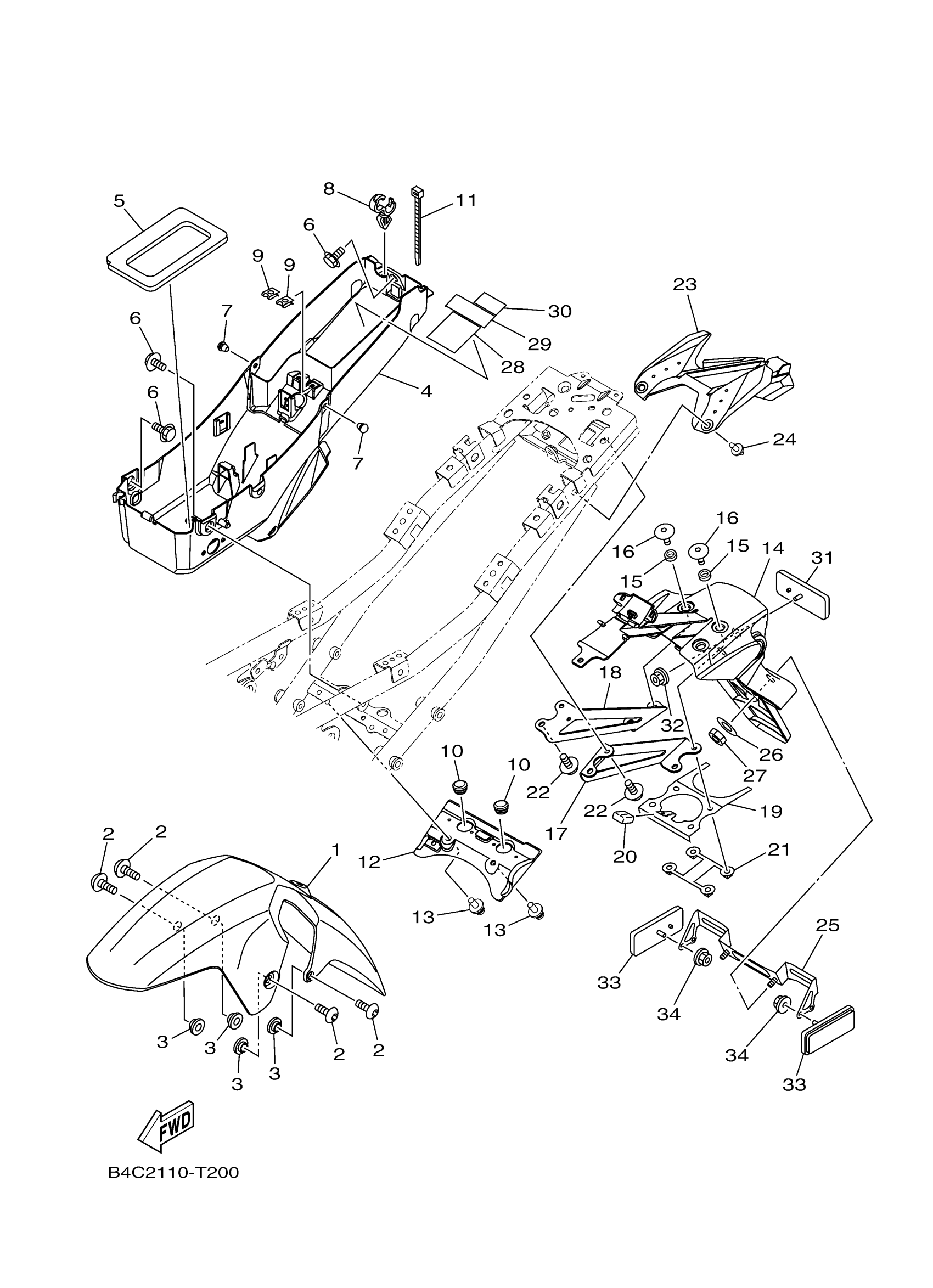

Yamaha MT07KL (MT07) B4CCL 2019 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

B4C-21511-00-00

$41.99

2

BOLT,HEX. SOCKET BUTTON

90111-06151-00

$3.18

3

COLLAR

90387-06153-00

$7.49

4

BOX, BATTERY 1

1WS-8212B-00-00

$31.99

5

DAMPER 2

1WS-21639-00-00

$6.99

6

BOLT

90109-06202-00

$7.49

7

PLUG(1NL)

90338-07180-00

$7.49

8

CLAMP

90464-18002-00

$8.49

9

NUT, SPRING(47R)

90183-04039-00

$7.49

10

GROMMET 285216390000

90480-14100-00

$8.49

11

CLAMP(MF1)

90464-15152-00

$5.60

12

GUARD, FLAP

1WS-21642-01-00

$5.49

13

RIVET

90269-06002-00

$8.49

14

GUARD, MUD

1WS-21629-00-00

Unavailable

15

COLLAR

90387-06106-00

$7.49

16

BOLT

90111-06061-00

Unavailable

17

STAY 1

1WS-2164F-00-00

Unavailable

18

STAY 2

1WS-2164G-00-00

Unavailable

19

STAY, PLATE

1WS-21682-00-00

Unavailable

20

DAMPER

1WS-21746-00-00

Unavailable

21

BRACKET 6

1WS-2161G-00-00

Unavailable

22

BOLT,WASHER BASED

90105-06206-00

Unavailable

23

COVER, REAR FENDER

1WS-2163A-00-00

Unavailable

24

RIVET

90269-07008-00

Unavailable

25

BRACKET, LICENSE

2RC-84751-00-00

Unavailable

26

WASHER, PLAIN (646)

92990-06600-00

Unavailable

27

NUT, SELF-LOCKING

95617-06100-00

Unavailable

29

LABEL, CAUTION

3JJ-28446-A2-00

Unavailable

30

LABEL, CAUTION

3SA-24877-A0-00

Unavailable

31

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

32

NUT, S/L FLANGE

95607-05200-00

Unavailable

33

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

34

NUT, FLANGE

95702-05500-00

Unavailable
