2018 Yamaha MT07 (MT07JW) Water Pump Diagram

← All diagrams

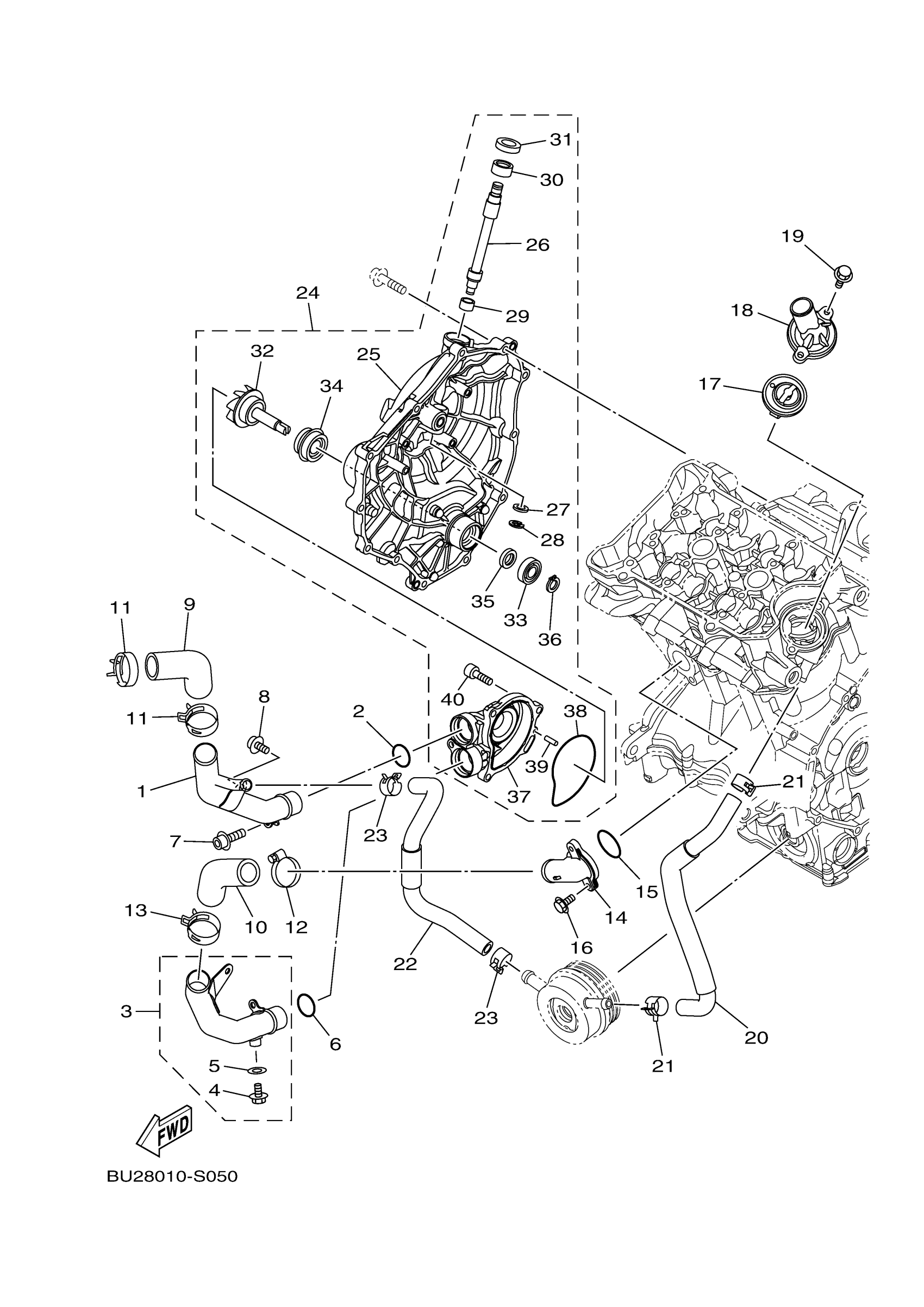

Find the part on the Water Pump diagram for your 2018 Yamaha MT07 (MT07JW), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2018 Yamaha MT07 (MT07JW) Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE 1

1WS-12481-01-00

1
Out of stock

2

O-RING

93210-235A1-00

1
Out of stock

3

PIPE 2

1WS-12482-01-00

1
Out of stock

4

BOLT, FLANGE

95022-06010-00

1
Out of stock

5

GASKET 256113960000

90430-06014-00

—
Out of stock

6

O-RING

93210-235A1-00

1
Out of stock

7

BOLT,SOCKET HEAD

91314-06014-00

1
Out of stock

8

BOLT, HEXAGON SOCKET HEAD

90110-06152-00

1
Out of stock

9

HOSE 1

1WS-12576-00-00

1
Out of stock

10

HOSE 1

1WS-12576-00-00

1
Out of stock

11

CLIP

90467-290A0-00

—
Out of stock

12

HOSE CLAMP ASSY

90450-35001-00

1
Out of stock

13

CLIP

90467-290A0-00

—
Out of stock

14

JOINT 1

1WS-12469-00-00

1
Out of stock

15

O-RING

93210-33006-00

1
Out of stock

16

BOLT, FLANGE

95817-06020-00

—
Out of stock

17

THERMOSTAT ASSY

1WS-12410-01-00

—
Out of stock

18

COVER, THERMOSTAT

1WS-12413-00-00

—
Out of stock

19

BOLT, FLANGE

95817-06020-00

—
Out of stock

20

HOSE 5

1WS-12588-00-00

—
Out of stock

21

CLIP

90467-170A6-00

—
Out of stock

22

HOSE 6

1WS-12589-00-00

—
Out of stock

23

CLIP

90467-170A6-00

—
Out of stock

24

WATER PUMP ASSY

1WS-12420-01-00

—
Out of stock

25

COVER, CRANKCASE 2

1WS-15421-00-00

—
Out of stock

26

AXLE, PUSH LEVER

2D1-16382-00-00

—
Out of stock

27

WASHER(6TA)

92907-08600-00

—
Out of stock

28

CIRCLIP

99080-07600-00

1
Out of stock

29

BEARING

93317-11096-00

—
Out of stock

30

BEARING

93315-21570-00

—
Out of stock

31

OIL SEAL (3X3)

93102-15212-00

—
Out of stock

32

IMPELLER SHAFT ASS

1WS-12450-00-00

—
Out of stock

33

BRG,R-B 6001 28MM 28G KY

93306-00105-00

—
Out of stock

34

SEAL, MECHANICAL

5VK-12438-00-00

—
Out of stock

35

SEAL

2CR-13338-00-00

—
Out of stock

36

CIRCLIP(10Y)

99009-12400-00

—
Out of stock

37

COVER, HOUSING

1WS-12422-00-00

—
Out of stock

38

O-RING

1WS-12439-00-00

—
Out of stock

39

PIN,DOWEL (603)

93603-12007-00

—
Out of stock

40

BOLT,SOCKET HEAD

91314-06020-00

—
Out of stock
