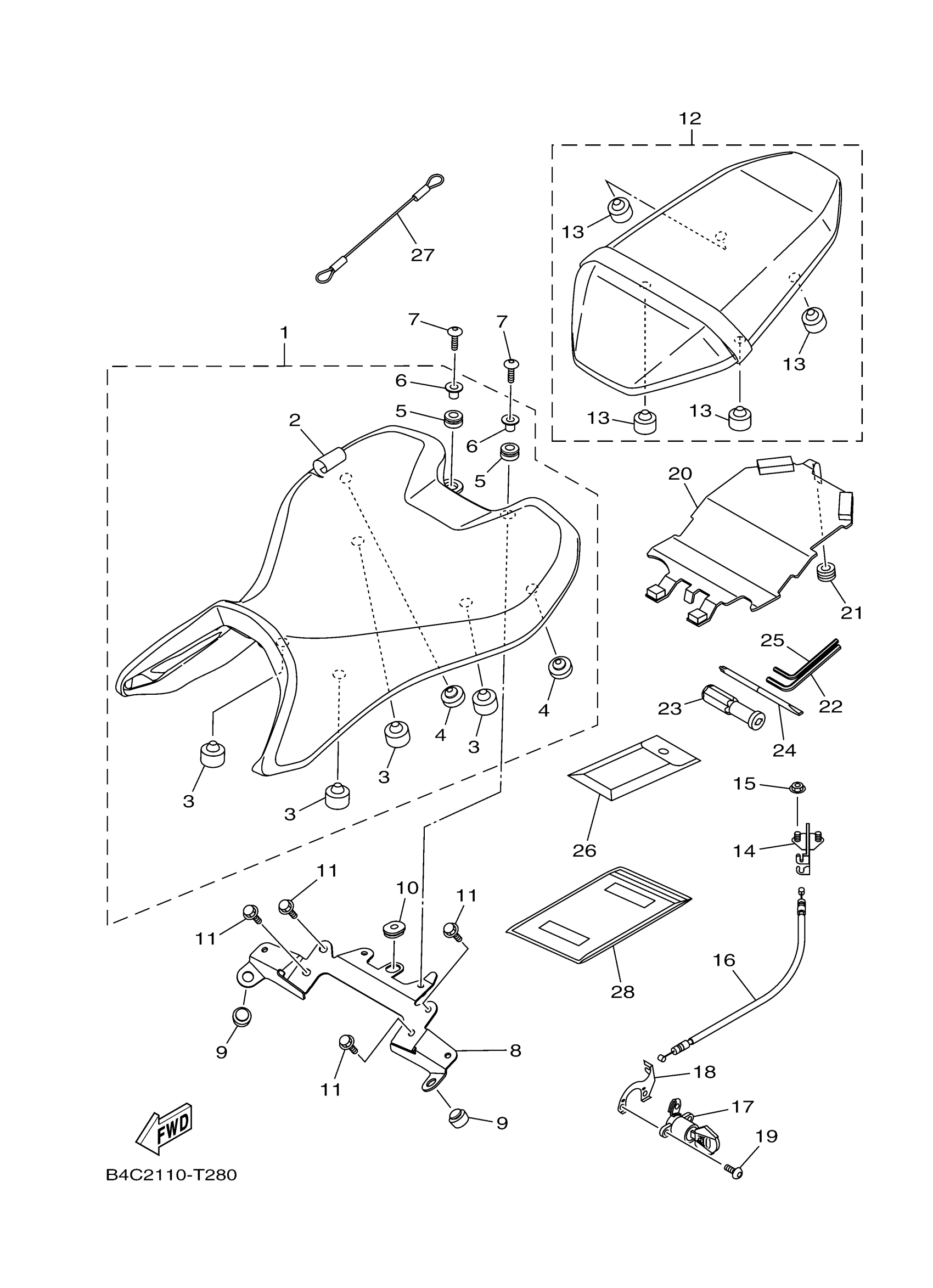

Yamaha MT07JW (MT07) B4C21 2018 SEAT Diagram

#

Description
Price

1

SINGLE SEAT ASSY

B4C-24710-01-00

$146.99

2

SEAT COVER COMP.

B4C-2470F-01-00

$72.99

3

STOPPER, MAIN STAND

371-27114-00-00

$7.99

4

PAD, SEAT

22W-24741-00-00

$8.99

5

GROMMET(4TX)

90480-14604-00

$8.49

6

COLLAR 437216330000

90387-07391-00

Unavailable

7

BOLT,HEX. SOCKET BUTTON

90111-06139-00

$3.28

8

BRACKET

B4C-21131-00-00

Unavailable

9

STOPPER, MAIN STAND

157-27114-00-00

$9.99

10

GROMMET(4DN)

90480-01558-00

$4.19

11

BLOT, FLANGE DEEP RECESS

95D32-06010-00

$0.75

12

TANDEM SEAT ASSY

B4C-24750-01-00

$138.99

13

STOPPER MAIN STAND

278-27114-00-00

$8.99

14

SEAT LOCK ASSY

1WS-24780-00-00

Unavailable

15

NUT, FLANGE

95702-06500-00

$2.39

16

CABLE, SEAT LOCK

1WS-2478E-00-00

Unavailable

17

SEAT LOCK ASSY

3CK-W2470-00-00

Unavailable

18

STAY, LOCK

23P-2117K-01-00

Unavailable

19

SCREW

90149-06030-00

Unavailable

20

SEAT COVER ASSY

B4C-2477A-00-00

Unavailable

21

GROMMET (2T4)

90480-12237-00

Unavailable

22

WRENCH, HEXAGON 8

14B-28164-00-00

Unavailable

23

GRIP, DRIVER

2H7-28151-00-00

Unavailable

24

DRIVER

137-28152-00-00

Unavailable

25

WRENCH, HEXAGON 8

23P-28164-00-00

Unavailable

26

TOOL KIT

B4C-28100-01-00

Unavailable

27

HANGER, HELMET

2S3-21398-00-00

Unavailable

28

POUCH

4KG-28186-11-00

Unavailable
