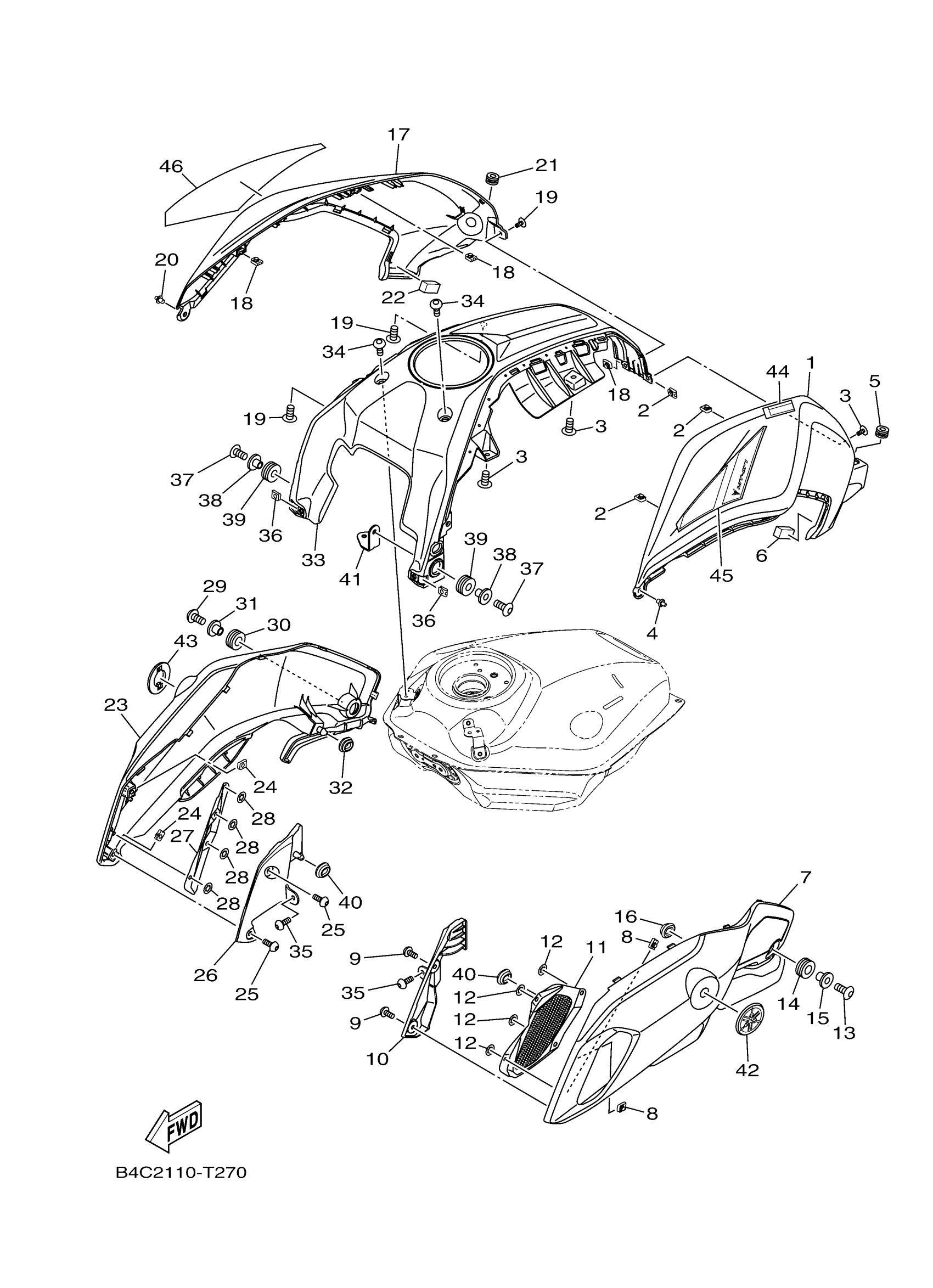

Yamaha MT07JW (MT07) B4C21 2018 FUEL TANK 2 Diagram

#

Description
Price

1

COVER, SIDE 1

B4C-24129-00-P1

$94.99

2

NUT, SPRING

90183-050A6-00

$8.49

3

BOLT

90111-05003-00

$8.49

4

RIVET

90269-06008-00

$9.49

5

GROMMET(3AA)

90480-12497-00

Unavailable

6

DAMPER, PLATE 6

2C0-2414R-00-00

$7.99

7

SCOOP, AIR 1

B4C-2137W-01-00

$55.99

8

NUT, SPRING

90183-050A6-00

$8.49

9

BOLT

90111-05003-00

$8.49

10

PANEL, INNER 1

B4C-2836K-00-00

$9.49

11

GRILL, AIR INTAKE 1

B4C-2837N-00-00

$44.99

12

NUT, SPRING (6E5)

90183-05M02-00

$0.33

13

BOLT

90109-06317-00

$3.35

14

GROMMET

90480-17007-00

Unavailable

15

COLLAR

90387-10107-00

$5.60

16

GROMMET(4DN)

90480-01558-00

Unavailable

17

COVER, SIDE 2

B4C-24139-00-P1

Unavailable

18

NUT, SPRING

90183-050A6-00

$8.49

19

BOLT

90111-05003-00

$8.49

20

RIVET

90269-06008-00

$9.49

21

GROMMET(3AA)

90480-12497-00

Unavailable

22

DAMPER, PLATE 6

2C0-2414R-00-00

$7.99

23

SCOOP, AIR 2

B4C-2137X-01-00

Unavailable

24

NUT, SPRING

90183-050A6-00

$8.49

25

BOLT

90111-05003-00

$8.49

26

PANEL, INNER 2

B4C-2836L-00-00

Unavailable

27

GRILL, AIR INTAKE 2

B4C-2837R-00-00

Unavailable

28

NUT, SPRING (6E5)

90183-05M02-00

$0.33

29

BOLT

90109-06317-00

$3.35

30

GROMMET

90480-17007-00

Unavailable

31

COLLAR

90387-10107-00

$5.60

32

GROMMET(4DN)

90480-01558-00

Unavailable

33

COVER, CAP

B4C-2464E-00-00

Unavailable

34

BOLT

90111-05011-00

Unavailable

35

BOLT

90111-05002-00

Unavailable

36

NUT, SPRING

90183-050A6-00

$8.49

37

BOLT,HEX. SOCKET BUTTON

90111-06084-00

Unavailable

38

COLLAR

90387-07042-00

Unavailable

39

GROMMET(2AL)

90480-14452-00

Unavailable

40

GROMMET(4BH)

90480-01559-00

Unavailable

41

BRACKET, CAP

1WS-2463E-00-00

Unavailable

42

EMBLEM

1RC-2413B-02-00

Unavailable

43

EMBLEM

1RC-2413B-02-00

Unavailable

44

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable

45

GRAPHIC, 1

B4C-217F1-10-00

Unavailable

46

GRAPHIC, 2

B4C-217F2-10-00

Unavailable
