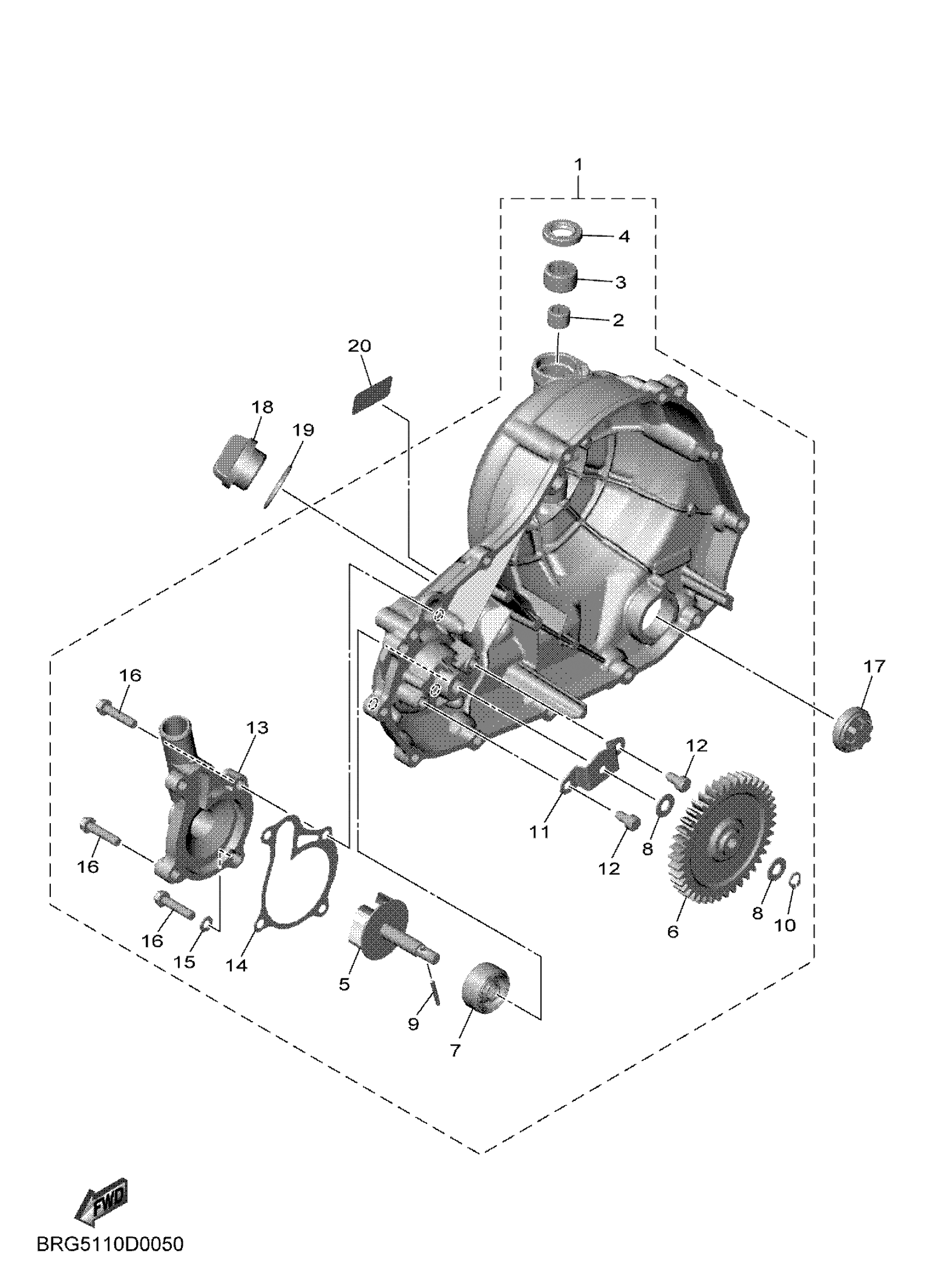

Yamaha MT03SL (MT03) BRG5 2025 WATER PUMP Diagram

#

Description
Price

1

WATER PUMP ASSY

BRA-E2420-00-00

Unavailable

2

BEARING

93317-11096-00

$23.99

3

BEARING

93315-21570-00

$16.99

4

OIL SEAL

93102-15805-00

$7.49

5

IMPELLER SHAFT ASSY

1WD-E2450-00-00

$50.99

6

GEAR

1WD-E2453-00-00

$66.99

7

SEAL

33S-E2223-00-00

$68.99

8

WASHER

33S-E2456-00-00

$2.18

9

PIN, STRAIGHT

1WD-E319L-00-00

$0.99

10

CIRCLIP

99009-08400-00

$1.60

11

. PLATE

1WD-E2681-00-00

Unavailable

12

BOLT,SOCKET

91317-06010-00

$9.49

13

COVER, HOUSING

BRA-E2422-00-00

$22.99

14

GASKET, HOUSING COVER 2

1WD-E2428-00-00

$4.29

15

GASKET 256113960000

90430-06014-00

Unavailable

16

BOLT, FLANGE

95022-06025-00

Unavailable

17

GAUGE, LEVEL

2H7-15361-00-00

Unavailable

18

PLUG, OIL LEVEL

1WD-E5362-00-00

Unavailable

19

O-RING

93210-27807-00

Unavailable

20

OIL, LABEL

BRA-E548B-00-00

Unavailable
