2025 Yamaha MT03 (MT03SL) Side Cover Diagram

← All diagrams

Find the part on the Side Cover diagram for your 2025 Yamaha MT03 (MT03SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

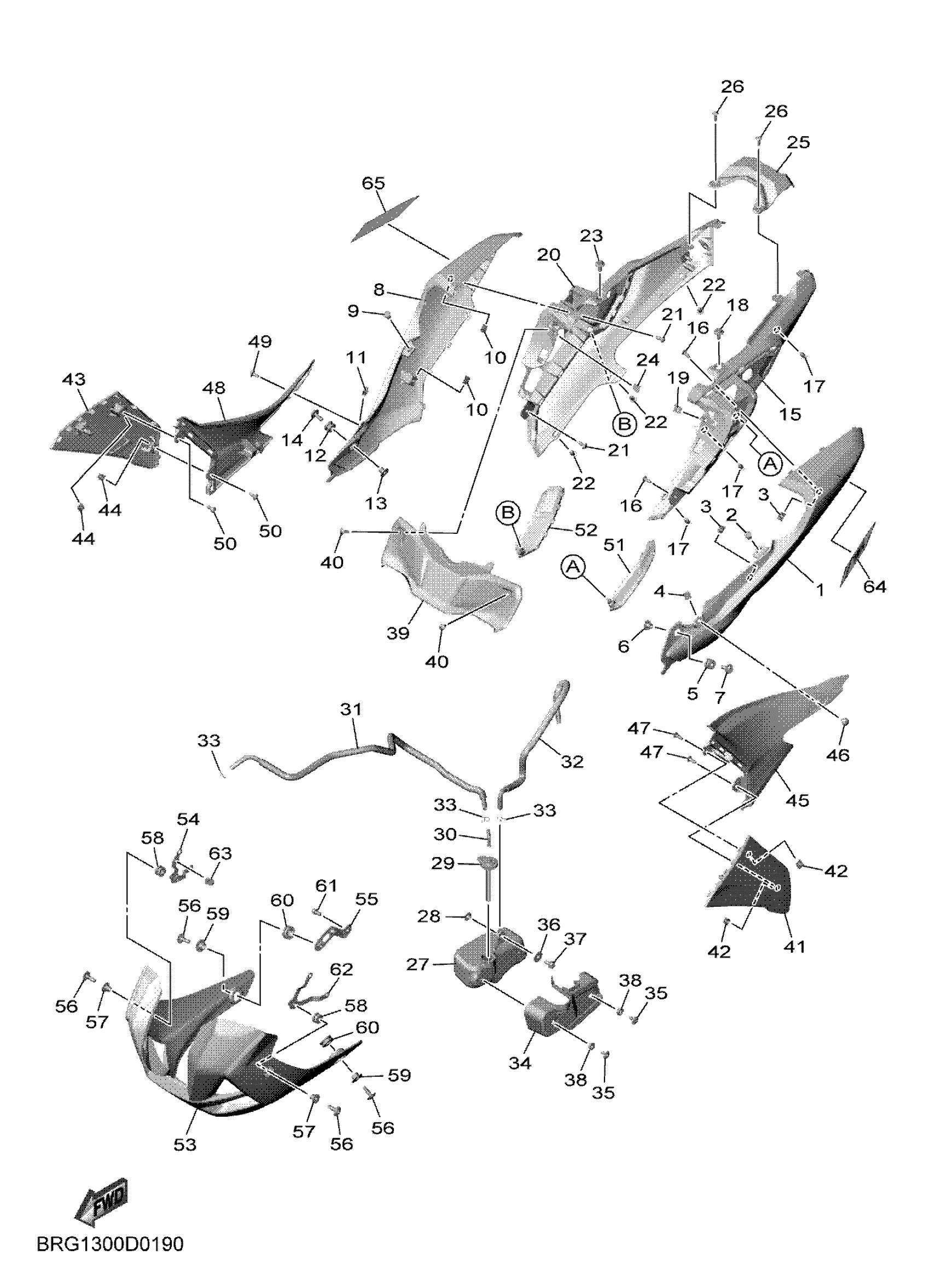

2025 Yamaha MT03 (MT03SL) Side Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SIDE 1

BRG-F1711-00-P0

1
Out of stock

2

RIVET

90269-06816-00

1
Out of stock

3

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

4

NUT, SPRING

90183-050A7-00

1
Out of stock

5

GROMMET (3P91)

90480-12808-00

1
Out of stock

6

COLLAR

90387-06899-00

1
Out of stock

7

BOLT, WITH WASHER (30X)

90119-06096-00

1
Out of stock

8

COVER, SIDE 2

BRG-F1721-00-P0

—
Out of stock

9

RIVET

90269-06816-00

1
Out of stock

10

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

11

NUT, SPRING

90183-050A7-00

1
Out of stock

12

GROMMET (3P91)

90480-12808-00

1
Out of stock

13

COLLAR

90387-06899-00

1
Out of stock

14

BOLT, WITH WASHER (30X)

90119-06096-00

1
Out of stock

15

MOLE, SIDE COVER 1

BRG-F171L-00-00

1
Out of stock

16

SCREW, TAPPING

97702-50016-00

—
Out of stock

17

RIVET

90269-06816-00

1
Out of stock

18

BOLT (B9B1)

90109-068B2-00

—
Out of stock

19

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

20

MOLE, SIDE COVER 2

BRG-F171M-00-00

—
Out of stock

21

SCREW, TAPPING

97702-50016-00

—
Out of stock

22

RIVET

90269-06816-00

1
Out of stock

23

BOLT (B9B1)

90109-068B2-00

—
Out of stock

24

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

25

MOLE, SIDE COVER 3

BRG-F171N-00-00

—
Out of stock

26

SCREW, TAPPING

97702-50016-00

—
Out of stock

27

TANK, RECOVERY

1WD-F1871-01-00

—
Out of stock

28

COLLAR

90387-06857-00

—
Out of stock

29

CAP

1WD-F1875-02-00

—
Out of stock

30

ELBOW

26H-21828-00-00

—
Out of stock

31

PIPE 1

1WD-F1816-02-00

—
Out of stock

32

PIPE 2

1WD-F1817-02-00

—
Out of stock

33

CLIP 101235600

90467-08003-00

—
Out of stock

34

COVER

BS7-F172W-00-00

—
Out of stock

35

BOLT

90111-05003-00

—
Out of stock

36

WASHER, PLATE

90201-06380-00

—
Out of stock

37

BOLT, FLANGE DEEP

95D07-06014-00

—
Out of stock

38

SPACER (25G)

90560-06244-00

—
Out of stock

39

COVER, SIDE 3

BRG-F1731-00-00

—
Out of stock

40

SCREW, ROUND TAPPING

90160-05009-00

—
Out of stock

41

COVER, SIDE 5

B9T-F171E-00-P3

—
Out of stock

42

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

43

COVER, SIDE 6

B9T-F171X-00-P3

—
Out of stock

44

NUT, SPRING(1YT)

90183-05042-00

1
Out of stock

45

LID, SIDE COVER

BRG-F1716-00-00

—
Out of stock

46

BOLT

90111-05002-00

—
Out of stock

47

SCREW, TAPPING

97702-50016-00

—
Out of stock

48

LID, SIDE COVER 2

BRG-F1726-00-00

—
Out of stock

49

BOLT

90111-05002-00

—
Out of stock

50

SCREW, TAPPING

97702-50016-00

—
Out of stock

51

COVER 1

BRG-F198F-00-00

—
Out of stock

52

COVER 2

BRG-F198G-00-00

—
Out of stock

53

COVER, LOWER

BGJ-F8385-01-P0

—
Out of stock

54

BRACKET 9

BGJ-F833F-00-00

—
Out of stock

55

BRACKET 10

BGJ-F833G-00-00

—
Out of stock

56

BOLT,HEX. SOCKET BUTTON

90111-06117-00

—
Out of stock

57

COLLAR

90387-06899-00

1
Out of stock

58

GROMMET (3P91)

90480-12808-00

1
Out of stock

59

COLLAR

90387-09801-00

—
Out of stock

60

GROMMET(3AK)

90480-18495-00

—
Out of stock

61

BOLT, FLANGE DEEP RECESS

95E32-06012-00

—
Out of stock

62

BRACKET 8

BGJ-F833E-00-00

—
Out of stock

63

CLAMP

90464-08008-00

—
Out of stock

64

GRAPHIC 1

BRG-F173E-20-00

—
Out of stock

65

GRAPHIC 2

BRG-F173F-20-00

—
Out of stock
