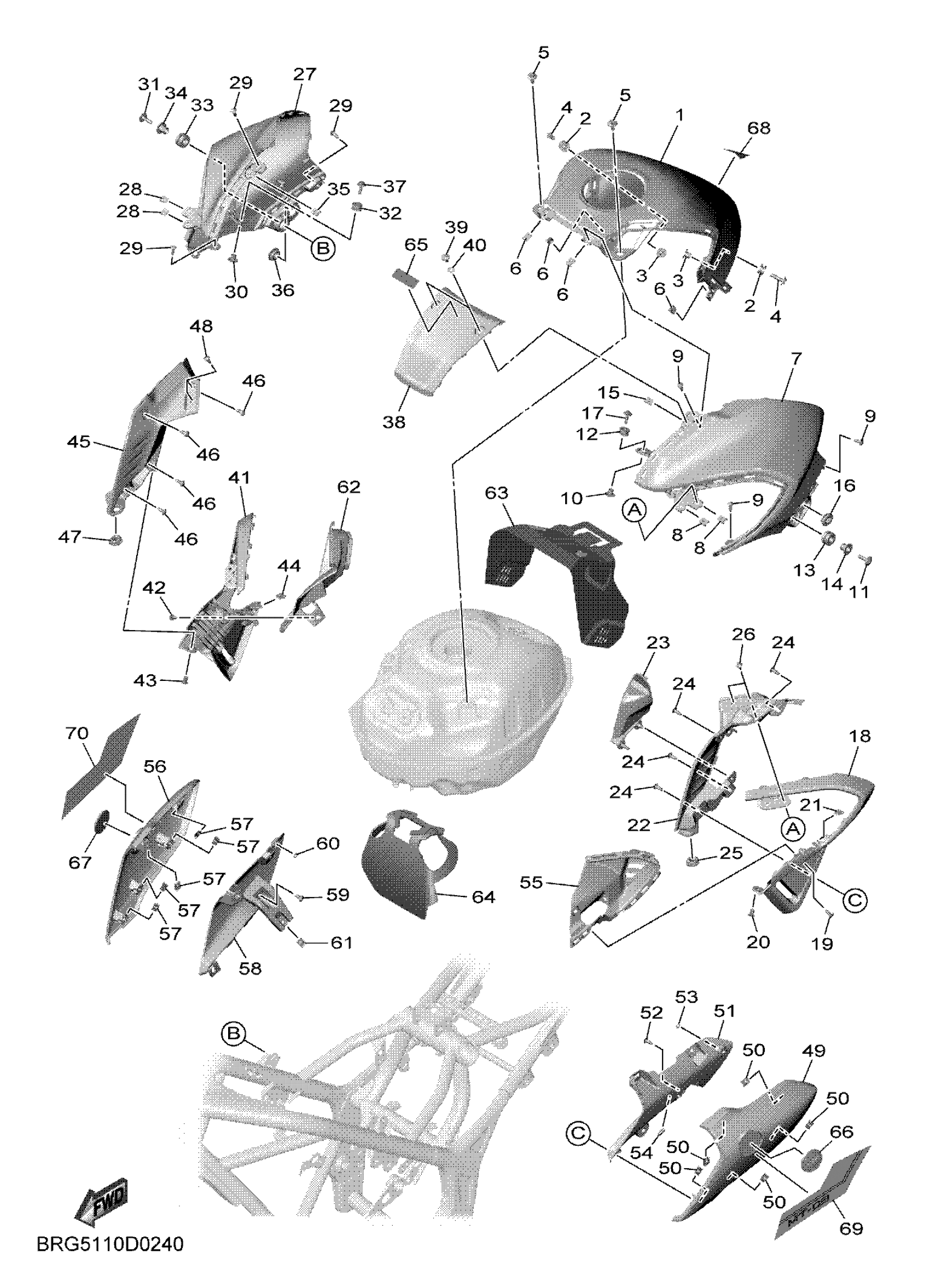

Yamaha MT03SL (MT03) BRG5 2025 FUEL TANK 2 Diagram

#

Description
Price

1

COVER, TANK

B9T-F41B1-00-P3

$23.99

2

GROMMET (3P91)

90480-12808-00

$2.29

3

COLLAR

90387-06899-00

$3.24

4

BOLT, WITH WASHER

90119-06309-00

Unavailable

5

BOLT (B9B1)

90109-068B2-00

$0.54

6

NUT, SPRING(1YT)

90183-05042-00

$5.60

7

COVER, SIDE 1

B9T-F4129-00-P4

$28.99

8

NUT, SPRING(1YT)

90183-05042-00

$5.60

9

SCREW, TAPPING

97702-50016-00

$2.39

10

COLLAR

90387-06899-00

$3.24

11

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

12

GROMMET (3P91)

90480-12808-00

$2.29

13

GROMMET

90480-17007-00

Unavailable

14

COLLAR

90387-10107-00

$5.60

15

NUT, SPRING

90183-050A6-00

$8.49

16

GROMMET(4BH)

90480-01559-00

Unavailable

17

BOLT, W/WASHER (3V2)

90119-05020-00

Unavailable

18

DUCT 1

B9T-F838N-00-00

Unavailable

19

SCREW, ROUND TAPPING

90160-05009-00

Unavailable

20

RIVET

90269-06816-00

Unavailable

21

NUT, SPRING(1YT)

90183-05042-00

$5.60

22

GUIDE, AIR 3

BRG-F137K-00-00

Unavailable

23

COVER

BRG-F4217-00-00

Unavailable

24

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

25

GROMMET(4BH)

90480-01559-00

Unavailable

26

SCREW, ROUND TAPPING

90160-05009-00

Unavailable

27

COVER, SIDE 2

B9T-F4139-00-P4

Unavailable

28

NUT, SPRING(1YT)

90183-05042-00

$5.60

29

SCREW, TAPPING

97702-50016-00

$2.39

30

COLLAR

90387-06899-00

$3.24

31

BOLT, HEXAGON SOCKET HEAD(51L)

90110-06087-00

$5.60

32

GROMMET (3P91)

90480-12808-00

$2.29

33

GROMMET

90480-17007-00

Unavailable

34

COLLAR

90387-10107-00

$5.60

35

NUT, SPRING

90183-050A6-00

$8.49

36

GROMMET(4BH)

90480-01559-00

Unavailable

37

BOLT, W/WASHER (3V2)

90119-05020-00

Unavailable

38

COVER, TOP

B9T-F171A-00-P4

Unavailable

39

BOLT,HEX. SOCKET B

90111-05056-00

Unavailable

40

WASHER, PLATE(1KT)

90202-05180-00

Unavailable

41

DUCT 2

B9T-F838R-00-00

Unavailable

42

SCREW, ROUND TAPPING

90160-05009-00

Unavailable

43

RIVET

90269-06816-00

Unavailable

44

NUT, SPRING(1YT)

90183-05042-00

$5.60

45

GUIDE, AIR 4

BRG-F137L-00-00

Unavailable

46

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

47

GROMMET(4BH)

90480-01559-00

Unavailable

48

SCREW, ROUND TAPPING

90160-05009-00

Unavailable

49

SCOOP, AIR 1

B9T-F137W-00-P5

Unavailable

50

NUT, SPRING(1YT)

90183-05042-00

$5.60

51

PANEL, INNER 1

B9T-F836K-00-00

Unavailable

52

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

53

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

54

NUT, SPRING(1YT)

90183-05042-00

$5.60

55

GRILL, AIR INTAKE

BRG-F837N-00-00

Unavailable

56

SCOOP, AIR 2

B9T-F137X-00-P5

Unavailable

57

NUT, SPRING(1YT)

90183-05042-00

$5.60

58

PANEL, INNER 2

B9T-F836L-00-00

Unavailable

59

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

60

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

61

NUT, SPRING(1YT)

90183-05042-00

$5.60

62

GRILL, AIR INTAKE

BRG-F837R-00-00

Unavailable

63

COVER, AIR CLEANER

BRG-E449E-00-00

Unavailable

64

GUARD, FLAP

BRA-F1642-00-00

Unavailable

65

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable

66

EMBLEM

1WD-F413B-01-00

Unavailable

67

EMBLEM

1WD-F413B-01-00

Unavailable

68

GRAPHIC, FUEL TANK 7

B04-F4254-C1-00

Unavailable

69

GRAPHIC 1

B6W-F8391-50-00

Unavailable

70

GRAPHIC 2

B6W-F8392-50-00

Unavailable
