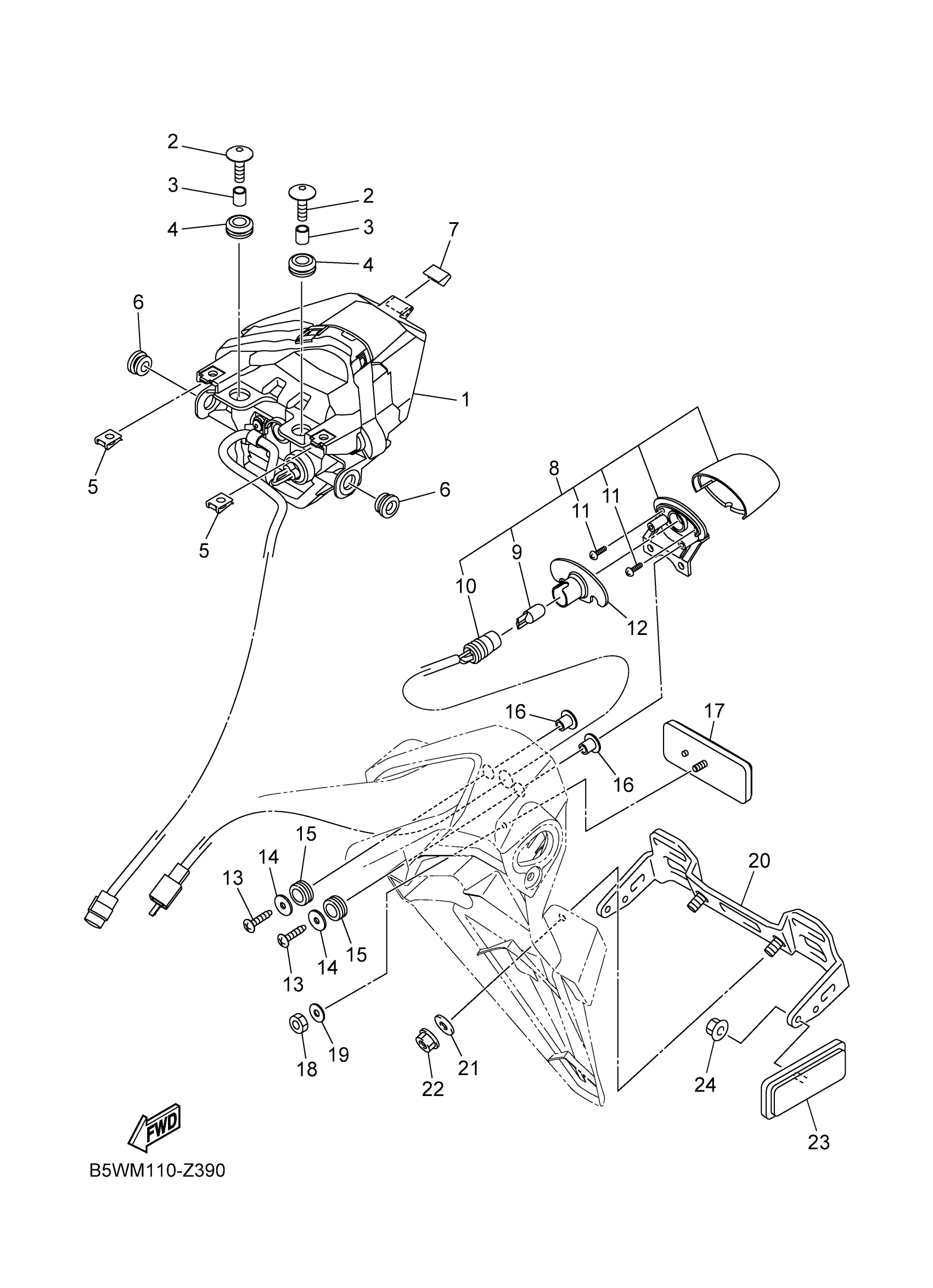

Yamaha MT03RGY (MT-03) B5WM 2024 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT UNIT ASS

1WD-H4710-02-00

Unavailable

2

BOLT,HEX. SOCKET BUTTON

90111-06117-00

$2.17

3

COLLAR

90387-067V1-00

Unavailable

4

GROMMET

90480-13001-00

$1.12

5

NUT, SPRING(1YT)

90183-05042-00

$5.60

6

GROMMET

90480-10003-00

$8.49

7

SEAL 1

1WD-F1732-00-00

$1.04

8

LICENCE LIGHT ASSY

BS7-H4740-00-00

$16.99

9

BULB (12V-5W)

1WD-H4744-00-00

$12.49

10

CORD, LICENCE LIGHT

1WD-H4547-00-00

$4.84

11

. SCREW

1WD-H4726-00-00

Unavailable

12

DAMPER

1WD-H4753-00-00

Unavailable

13

SCREW, TAPPING

97707-40020-00

Unavailable

14

WASHER, PLATE (8M6)

90201-047A2-00

$3.35

15

GROMMET

90480-11009-00

$1.01

16

COLLAR

90387-05042-00

Unavailable

17

REAR REFLECTOR ASSY

3C1-H5130-00-00

Unavailable

18

NUT, U

95617-05100-00

Unavailable

19

WASHER, PLATE

90201-05043-00

Unavailable

20

BRACKET, LICENSE

2MS-H4751-00-00

Unavailable

21

WASHER, PLATE

90201-06055-00

Unavailable

22

NUT,SELF-LOCKING

95607-06200-00

Unavailable

23

REAR REFLECTOR ASSY

3C1-H5130-00-00

Unavailable

24

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
