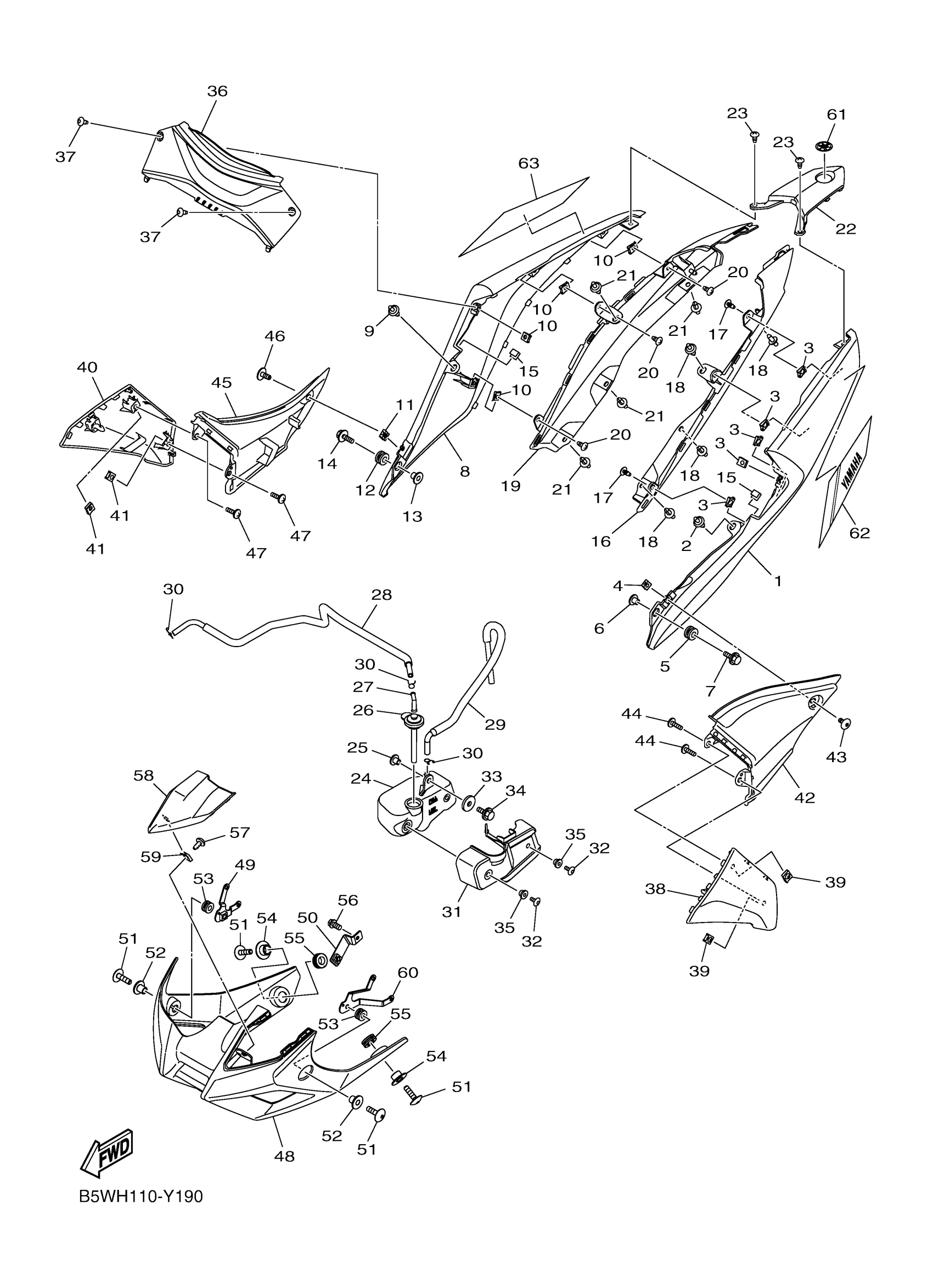

Yamaha MT03RGY (MT-03) B5WM 2024 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

1WD-F1711-00-PC

Unavailable

2

RIVET

90269-06816-00

$4.31

3

NUT, SPRING(1YT)

90183-05042-00

$5.60

4

NUT, SPRING

90183-050A7-00

$3.50

5

GROMMET (3P91)

90480-12808-00

$2.29

6

COLLAR

90387-06899-00

$3.24

7

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

8

COVER, SIDE 2

1WD-F1721-00-PC

$31.99

9

RIVET

90269-06816-00

$4.31

10

NUT, SPRING(1YT)

90183-05042-00

$5.60

11

NUT, SPRING

90183-050A7-00

$3.50

12

GROMMET (3P91)

90480-12808-00

$2.29

13

COLLAR

90387-06899-00

$3.24

14

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

15

SEAL

31B-F8307-00-00

$2.19

16

MOLE, SIDE COVER 1

1WD-F171L-00-00

Unavailable

17

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

18

RIVET

90269-06816-00

$4.31

19

MOLE, SIDE COVER 2

1WD-F171M-00-00

Unavailable

20

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

21

RIVET

90269-06816-00

$4.31

22

MOLE, SIDE COVER 3

1WD-F171N-00-00

Unavailable

23

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

24

TANK, RECOVERY

1WD-F1871-01-00

Unavailable

25

COLLAR

90387-06857-00

Unavailable

26

CAP

1WD-F1875-02-00

Unavailable

27

ELBOW

26H-21828-00-00

Unavailable

28

PIPE 1

1WD-F1816-02-00

Unavailable

29

PIPE 2

1WD-F1817-01-00

Unavailable

30

CLIP 101235600

90467-08003-00

Unavailable

31

COVER

BS7-F172W-00-00

Unavailable

32

BOLT

90111-05003-00

Unavailable

33

WASHER, PLATE

90201-06380-00

Unavailable

34

BOLT, FLANGE

95817-06014-00

Unavailable

35

SPACER (25G)

90560-06244-00

Unavailable

36

COVER, SIDE 3

1WD-F1731-00-PA

Unavailable

37

SCREW, ROUND TAPPING

90160-05810-00

Unavailable

38

COVER, SIDE 5

B9T-F171E-00-P3

Unavailable

39

NUT, SPRING(1YT)

90183-05042-00

$5.60

40

COVER, SIDE 6

B9T-F171X-00-P3

Unavailable

41

NUT, SPRING(1YT)

90183-05042-00

$5.60

42

LID, SIDE COVER

B9T-F1716-00-00

Unavailable

43

BOLT

90111-05003-00

Unavailable

44

SCREW, TAPPING

97702-50016-00

Unavailable

45

LID, SIDE COVER 2

B9T-F1726-00-00

Unavailable

46

BOLT

90111-05003-00

Unavailable

47

SCREW, TAPPING

97702-50016-00

Unavailable

48

COVER, UNDER

B6W-F8385-00-P1

Unavailable

49

BRACKET 9

B04-F833F-00-00

Unavailable

50

BRACKET 10

B04-F833G-00-00

Unavailable

51

BOLT,HEX. SOCKET BUTTON

90111-06117-00

Unavailable

52

COLLAR

90387-06899-00

$3.24

53

GROMMET (3P91)

90480-12808-00

$2.29

54

COLLAR

90387-09801-00

Unavailable

55

GROMMET(3AK)

90480-18495-00

Unavailable

56

BOLT, FLANGE

95022-06012-00

Unavailable

57

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

58

COVER 1

B08-F842M-00-00

Unavailable

59

NUT, SPRING(1YT)

90183-05042-00

$5.60

60

BRACKET 8

B04-F833E-00-00

Unavailable

61

TUNING FORK MARK

1PA-F836B-20-00

Unavailable

62

GRAPHIC 1

B9T-F173E-50-00

Unavailable

63

GRAPHIC 2

B9T-F173F-50-00

Unavailable
